SCOTT Eagle Attack - Page 17

P/N 595224-01 Rev E 7/12Page 15 of 32
NOTE
THE IMAGES IN THE DISPLAY SCREEN WILL APPEAR SHARPER WHEN
VIEWING A SCENE WHERE THE OBJECTS HAVE A GREATER TEMPERATURE
DIFFERENTIAL.

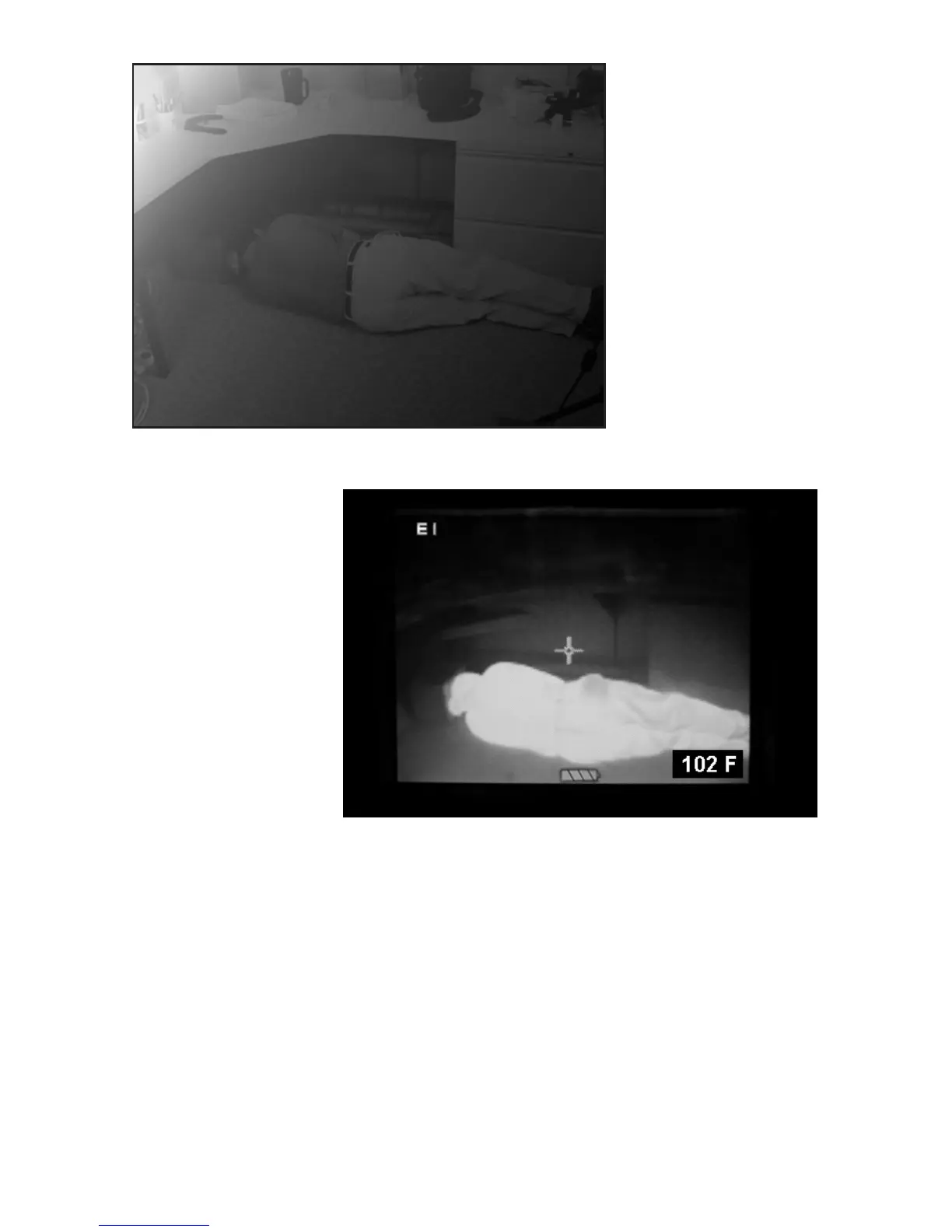

FIGURE 8
WHAT THE HUMAN EYE SEES
FIGURE 9
WHAT THE EAGLE ATTACK THERMAL IMAGING CAMERA
SEES
