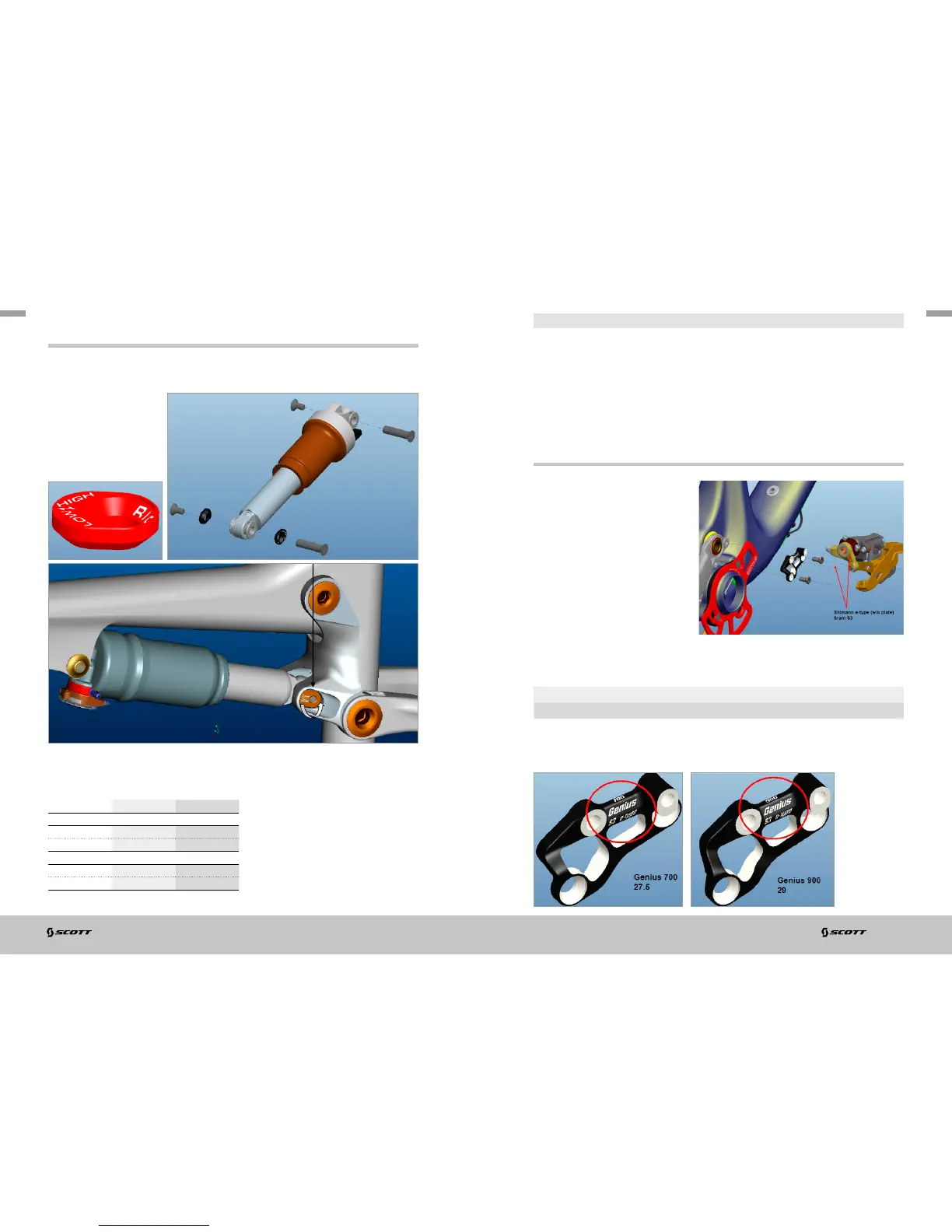

ADJUSTABLE BB HEIGHT
On Genius bikes equipped with the FOX Nude or the FOX CTD shock you can adjust
the BB height above ground in 2 positions by flipping a geometry chip located on the
linkage bar shock mount.
1. low BB for lower center of gravity over ground
2. high BB for bigger clearance between pedals/crankset and obstacles on
the ground
GENIUS 700 GENIUS 900
LOW POSITION
HEAD ANGLE 67.9 ° 69.0°
BB HEIGHT 345mm 335mm
HIGH POSITION
HEAD ANGLE 68.4° 69.5°
BB HEIGHT 351mm 340mm
IMPORTANT!
It is not possible to use this geometry chip with other shock models than the FOX
Nude or FOX CTD.
The shock might collide with parts of the frame or linkage bar.
FRONT DERAILLEUR (FD) MOUNTING DETAILS
On all Genius frames you will find
a Shimano E-type front derailleur
but fixed directly on the swingarm
without the plate that is fixed
normally between the bottom
bracket bearing cup and the
bottom bracket housing of the
front triangle or a SRAM Direct
Mount Type S3 FD.
Please note that you always need
to use the adapter plate attached
to the bike or frame set between
chainstay and front derailleur.
This adapter can be ordered at the SCOTT distribution with parts number:
229728 FD Mount Genius 2013 700-650B
229729 FD Mount Genius 2013 900-29
Please note that the 2 sizes of the adapters are not interchangeable!
