SCOTT Genius 2015 User Manual

06
GENIUS | BIKE OWNER’S MANUAL 2015 BIKE OWNER’S MANUAL 2015 | GENIUS
07
ENGLISH ENGLISH

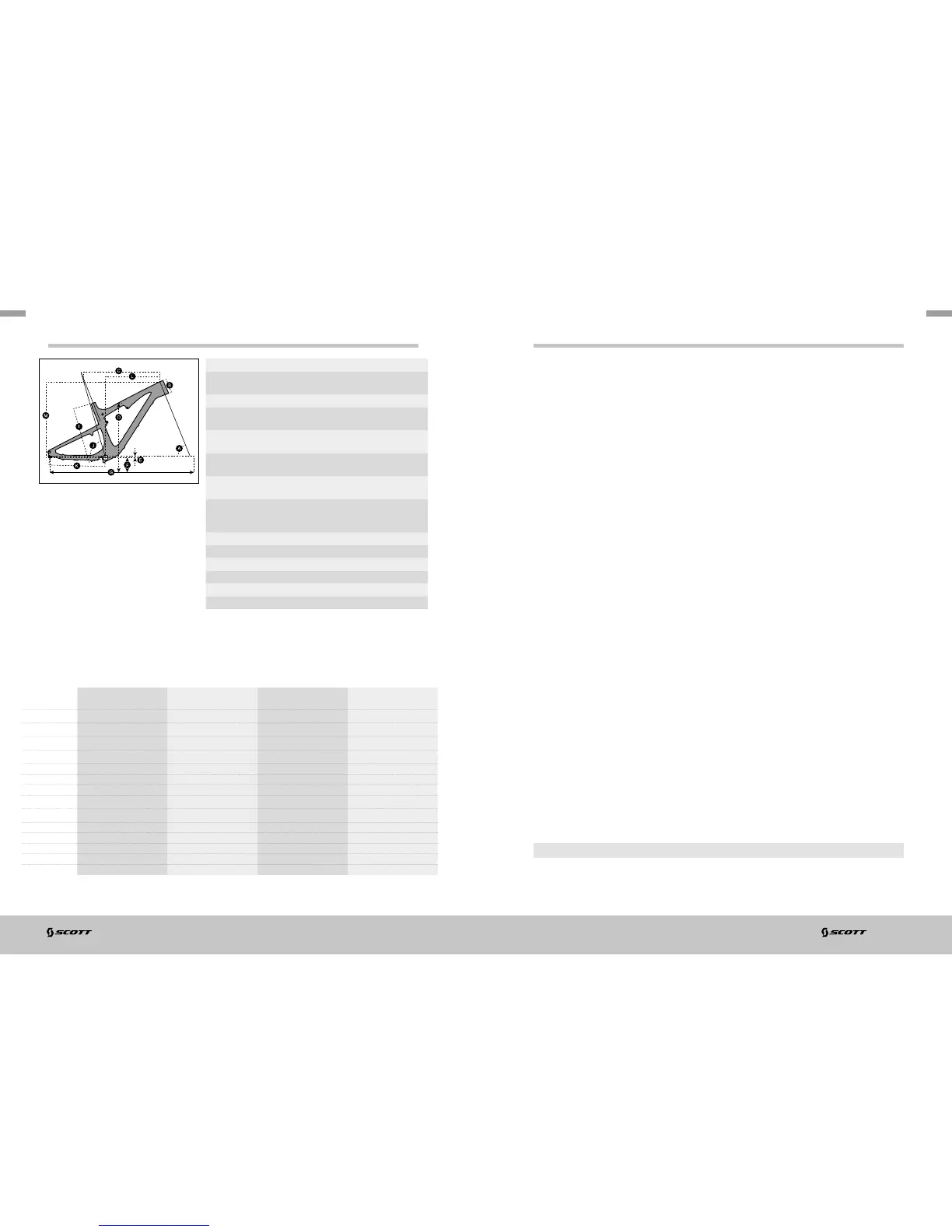

GEOMETRY/TECHNICAL DATA GENIUS 29”
Travel 130/90/0mm
Suspension
Ratio
2.60
Piston stroke 50mm
Shock length
(Eye to Eye)
190mm
Hardware
Mainframe
22.2mm x 6mm
Hardware
Swingarm
22.2mm x 6mm
Seatpost
diameter
31.6mm
Headset semi integr. for tapered 1 1/8-1.5
(44/54.9mm Inner diameter of frame) or
with 1 1/8 straight (44.0mm)
Fork travel 130mm
Fork length 540mm
BB housing BB PF 92
Front derailleur Shimano E-Type/SRAM S3 direct mount
Bearings 2 x IGUS / 6 x 6802 (24 x 15 x 5)
Max Tire Width 57mm/2.25”
S S M M L L XL XL
LOW BB SETTING HIGH BB SETTING LOW BB SETTING HIGH BB SETTING LOW BB SETTING HIGH BB SETTING LOW BB SETTING HIGH BB SETTING
A
HEAD TUBE
ANGLE
68.9 ° 69.4 ° 68.9 ° 69.4 ° 69.0 ° 69.4 ° 69.0 ° 69.4 °
B
HEAD TUBE
LENGTH
100.0 mm 3.9 in 100.0 mm 3.9 in 100.0 mm 3.9 in 100.0 mm 3.9 in 110.0 mm 4.3 in 110.0 mm 4.3 in 120.0 mm 4.7 in 120.0 mm 4.7 in
C
TOP TUBE
HORIZONTAL
570.3 mm 22.5 in 569.0 mm 22.4 in 600.3 mm 23.6 in 598 .9 mm 23.6 in 625.2 mm 24.6 in 623.8 mm 24.6 in 650.2 mm 25.6 in 648.8 mm 25.5 in
D
STANDOVER
HEIGHT
770.4 mm 30.3 in 772. 8 mm 30.4 in 772.8 mm 30.4 in 775.5 mm 30.5 in 803.0 mm 31.6 in 806.1 mm 31.7 in 800.6 mm 31.5 in 803.8 mm 31.6 in
E
BB OFFSET -34.5 mm -1.4 in -29.1 mm -1.1 in -34.5 mm -1.4 in -29.0 mm -1.1 in -34.0 mm -1.3 in -28.5 mm -1.1 in -34.0 mm -1.3 in -28.4 mm -1.1 in
F
BB HEIGHT 335.5 mm 13.2 in 340.9 mm 13.4 in 335.5 mm 13. 2 in 341.0 mm 13.4 in 336.0 mm 13. 2 in 341.5 mm 13.4 in 336.0 mm 13. 2 in 341.6 mm 13.4 in
G
WHEEL BASE 1,112.2 mm 43.8 in 1,111.8 mm 43. 8 in 1,142.2 mm 45.0 in 1,141.8 mm 45.0 in 1,168.0 mm 46.0 in 1,1 6 7. 6 mm 46.0 in 1,193.9 mm 47.0 i n 1,193.5 mm 47.0 i n
H
BB CENTER TO
TOPTUBE CENTER
I
BB CENTER TO TOP
OF SEATTUBE
415.0 mm 16.3 in 415.0 mm 16.3 in 440.0 mm 17. 3 in 440.0 mm 1 7. 3 in 475 .0 mm 18.7 in 475.0 mm 18.7 in 510.0 mm 20.1 in 510.0 mm 20.1 in
J
SEAT A N G L E 73.9 ° 74. 4 ° 73.9 ° 74.4 ° 74.0 ° 74. 4 ° 74 . 0 ° 74 .4 °
K
CHAINS TAY 450.0 mm 17.7 in 449.0 mm 17.7 in 450.0 mm 17.7 in 449.0 mm 17.7 in 449.9 mm 1 7.7 i n 448.9 mm 17.7 in 449.9 mm 17. 7 in 4 48 .9 mm 1 7.7 in
L
REACH 394.2 mm 15 .5 in 399.2 mm 15.7 in 424.2 mm 16.7 in 429.1 mm 16.9 in 4 47.1 mm 1 7. 6 in 451.8 mm 17.8 i n 469.4 mm 18.5 in 474.1 mm 18 .7 in
M
STAC K 770.4 mm 30.3 in 772.8 mm 30.4 in 772.8 mm 30.4 in 775.5 mm 30.5 in 803.0 mm 31.6 in 806.1 mm 31.7 in 800.6 mm 31.5 in 803.8 mm 31.6 in
N
STEM LENGTH 60.0 mm 2.4 in 60.0 mm 2.4 in 70.0 mm 2.8 in 70.0 mm 2.8 in 80.0 mm 3.1 in 80.0 mm 3.1 in 90.0 mm 3.5 in 90.0 mm 3.5 in
TC SHOCK TECHNOLOGY/TWINLOC LEVERS
The heart of the TC-System is the FOX Nude Shock made by FOX, offering three
functions which make this system possible.
The TWINLOC XL remote control lever is the evolution of the already outstanding
TRACLOC system of SCOTT.
While TRACLOC allowed only the change on the SCOTT TC rear shocks between
the SCOTT patented Lock-out, traction and full-mode on the fly from the handlebar,
the TWINLOC allows also the remote control of the front fork to shift between
lock-out and open mode at the same time when you change the modes on the
SCOTT rear shox.
In combination with FOX 34 CTD or FOX 32 CTD forks it is also possible to have a
platform mode on the fork.
The 3 modes of CTCD in combination with FOX Nude are:
- Climb Mode : lock-out rear, lock-out front
- Traction Mode: traction mode rear (incl. Geometry change and reduced travel),
platform mode front
- Descent Mode: full travel rear (Descent), full travel front
The 3 modes of CTD in combination with the FOX CTD shock are:
- Climb Mode : lock-out rear, lock-out front
- Ride Mode: platform (Ride) mode rear, platform mode front
- Descent Mode: full travel rear (Descent), full travel front
Therefore SCOTT offers 2 different TWINLOC levers with following fork/rear shock
combinations:
- FOX Nude with different rolls for FOX CTD fork and RockShox DNA 3 fork
(SCOTTArticle number: 230097)
- FOX CTD with different rolls for FOX CTD fork and RockShox DNA 3 fork
(SCOTTArticle number: 230098)
Please note that the FOX CTD rear shock does not offer a traction mode, but a
platform mode. In contrary to FOX Nude the air-chamber volume of the positive
chamber remains the same throughout the different modes
IMPORTANT!
You can only assemble the TWINLOC remote lever in “left side upward position” on
the handlebar.

SCOTT Genius 2015 Specifications

General

Wheel Size	27.5"
Handlebar	Syncros FL1.5 Tbar, Alloy 7050 D.B., T shape Flat, 9°, 700mm
Seatpost	Syncros FL1.5, 31.6mm
Saddle	Syncros XR1.5, Titanium rails
Model Year	2015
Suspension	Full Suspension
Groupset	Shimano XT
Brakes	Shimano XT
Shifters	Shimano XT
Front Derailleur	Shimano XT
Rear Derailleur	Shimano XT
Crankset	Shimano XT
Tires	Schwalbe Nobby Nic
Category	Mountain
Frame Material	Carbon
Frame	Genius Carbon HMX
