SCOTT Genius 2015 User Manual

12
GENIUS | BIKE OWNER’S MANUAL 2015 BIKE OWNER’S MANUAL 2015 | GENIUS
13
ENGLISH ENGLISH

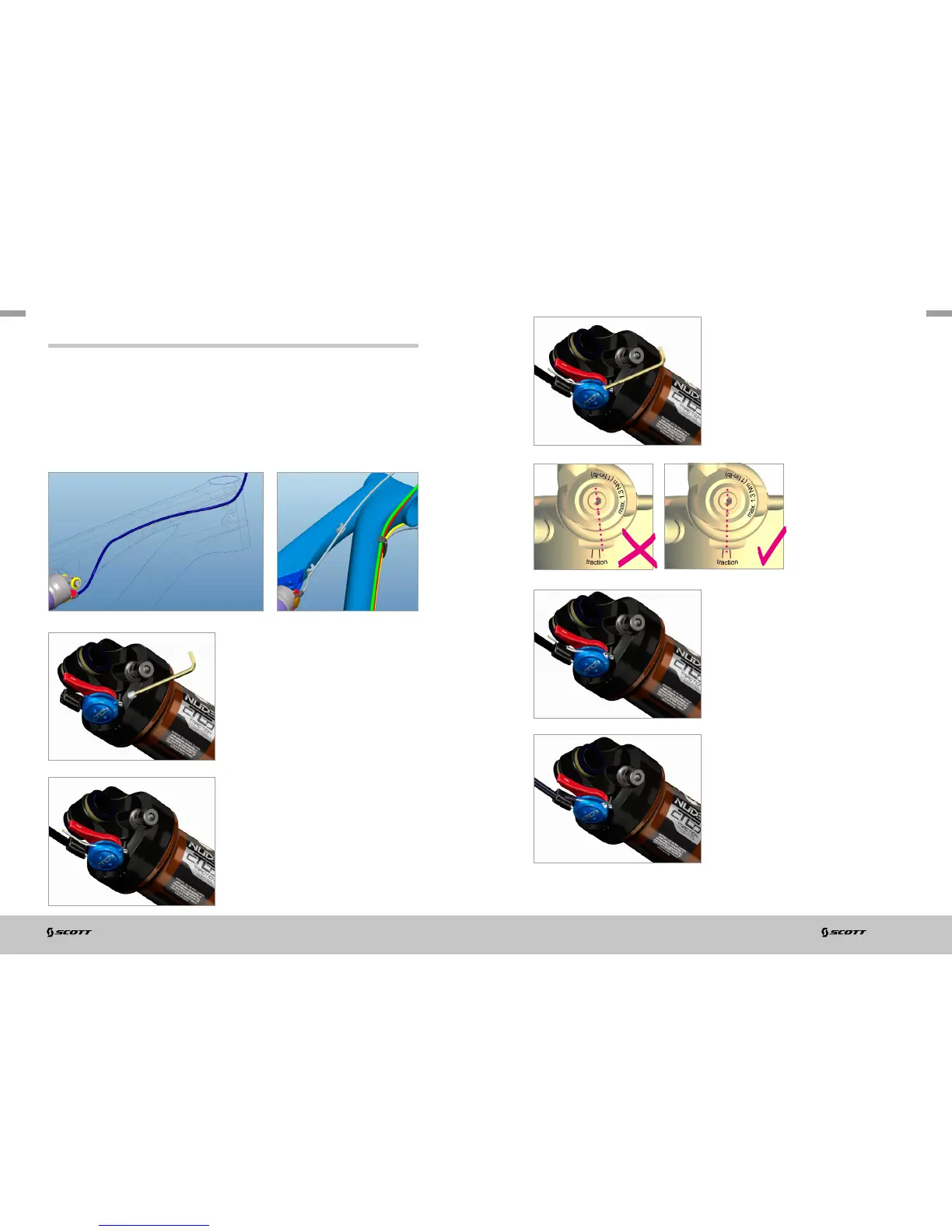

BASIC SET-UP OF THE TWINLOC REMOTE CONTROL OF
FOX NUDE SHOCK
To ensure perfect function of the FOX Nude shock it is very important to follow the
steps shown below exactly.
On Genius Carbon frames you will find an internal cable routing.
1. loosen the cable fixing screw (S7) by
turning it counter clockwise with a 2mm
allen key.
Push the inner cable first through the remote
lever in the upper cable routing of the lever and
then through the cable housing as shown below
inside the toptube.
On Genius alloy frames a regular
outside cable routing, the outer
cable housing is fixed on cable
mount ports with cable zippers.
2. insert a new cable via lever hole and
cable housing and push it into the
shock as shown around the remote
wheel (S6).
3. tighten the cable and fix the cablefixing
screw (S7) by turning it clockwise with
a 2mm allen key and a max. tightening
torque of 1.6Nm.
4. Check that the
handlebar lever
is in the traction
position. Refer to the
diagram below.
5. cut the cable approx. 20mm away from
the remote wheel. Fix it by squeezing it
with pliers.
6. push a cable end-cap on the cable until
it touches the end of the cable. Fix it by
squeezing it with pliers.

SCOTT Genius 2015 Specifications

General

Wheel Size	27.5"
Handlebar	Syncros FL1.5 Tbar, Alloy 7050 D.B., T shape Flat, 9°, 700mm
Seatpost	Syncros FL1.5, 31.6mm
Saddle	Syncros XR1.5, Titanium rails
Model Year	2015
Suspension	Full Suspension
Groupset	Shimano XT
Brakes	Shimano XT
Shifters	Shimano XT
Front Derailleur	Shimano XT
Rear Derailleur	Shimano XT
Crankset	Shimano XT
Tires	Schwalbe Nobby Nic
Category	Mountain
Frame Material	Carbon
Frame	Genius Carbon HMX
