CHAINGUIDE
The Carbon as well as the alloy frames of Genius can be fitted with ISCG chainguide
systems.
A set of all spare parts for this action can be ordered via the SCOTT distribution with:
229730 ISCG adaptor Genius 2013
Details for the assembly on the carbon frames of Genius:

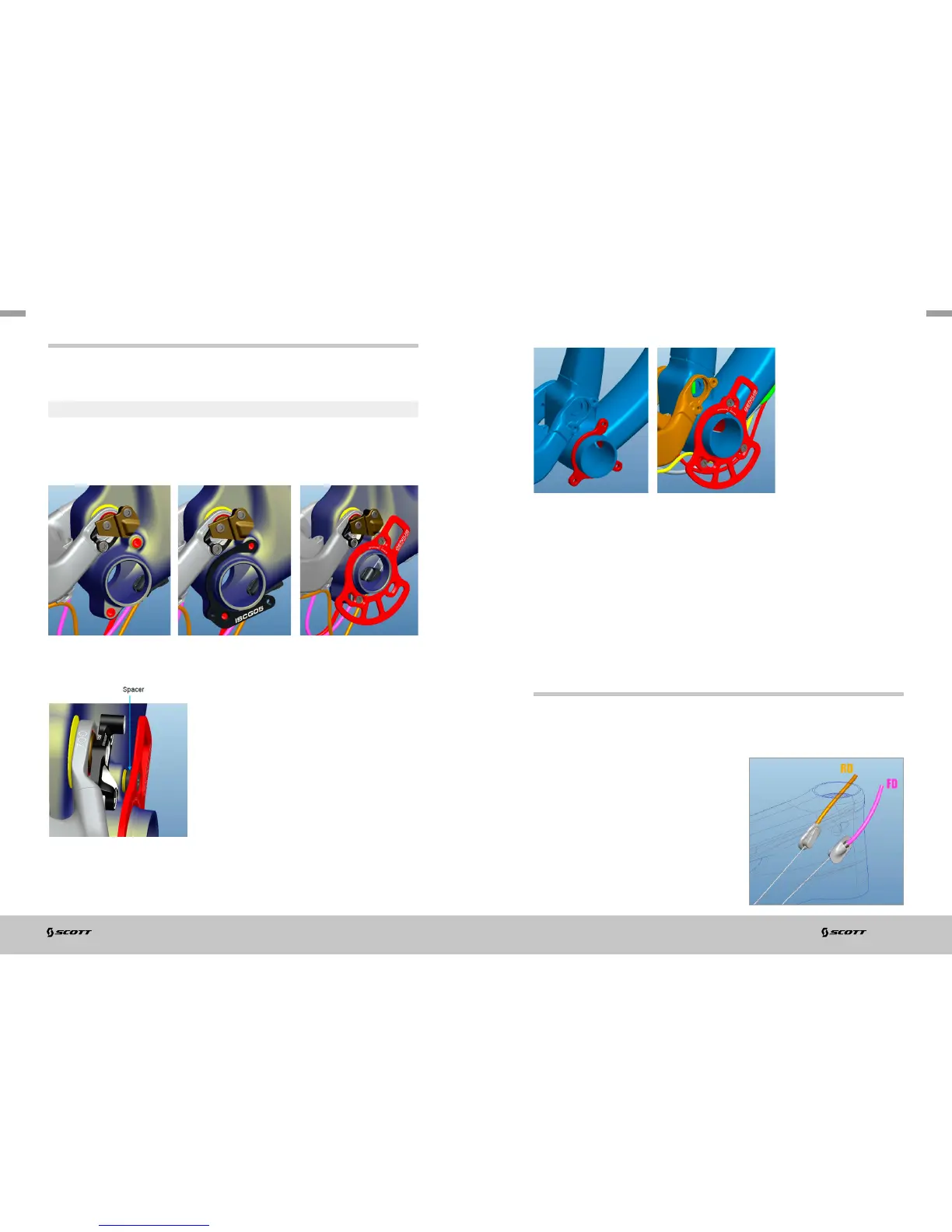

The adaptor must be used in order to assemble the chainblocker on the ISCG05
chainguide system.
Please note that you need to assemble the chainblocker exactly the way as shown
below and use all parts of the set.
Please also respect the different assembly
positions for SRAM and Shimano front derailleurs
For 2x10 drivetrains you need to use 2x2.5mm
washers, for 3x10 drive trains 1x2.5mm washers
between adaptor/frame and the chainblocker as
shown above.
Details for the assembly on the alloy frames of Genius:
You can assemble the chainblocker directly on the integrated ISCG05 mount on the
BB shell.
Please respect the different assembly positions for SRAM and Shimano front
derailleurs.
GENIUS CABLE ROUTING
The direct and straight cable system on all our full suspension models offers perfect
shifting performance combined with lightweight and high resistance against water
and dirt.
CARBON FRONT FRAMES
The carbon frames of Genius have an internal
shifting cable routing with cable stops on the
front end of the downtube as shown in the
drawing below.
