In addition to the derailleur
cables and the brake hose you
also will see a possibility for
an integrated cable routing
of the seatpost remote on the
carbon version of Genius.
In order to seal the housing
ports on the frame you should
use the plugs attached to
the bike.

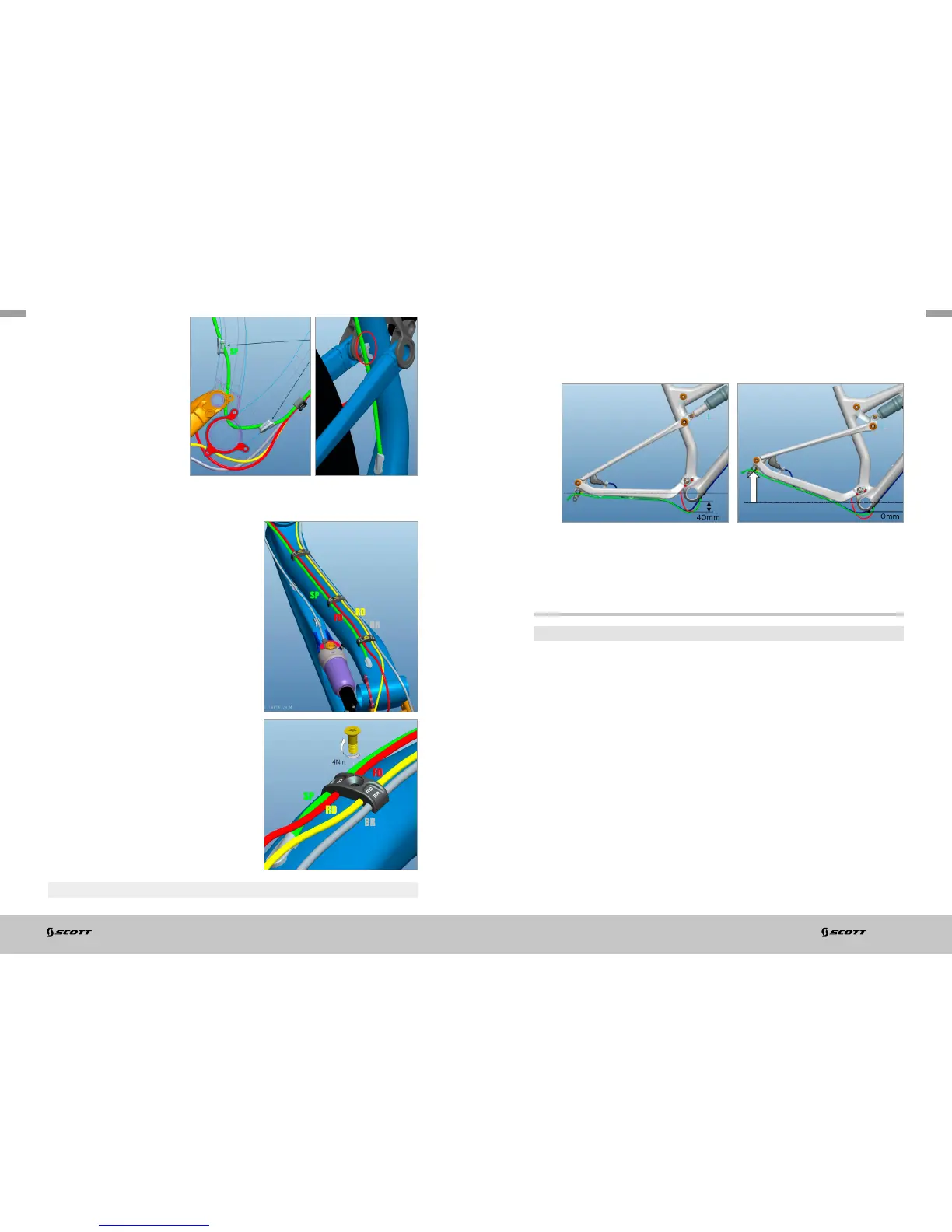

ALLOY FRONT FRAMES
Please fix the derailleur cable housings, the
brake hose and the remote seatpost cable
housing (if applicable) on the frame on the
cable mounts with the mount clips by following
the routing info as shown below:
Please tighten the mount bolt with a
max. of 4Nm.
229724 Cable Clamping Set Genius alloy 2013 one size
ADJUSTMENT OF SEATPOST-HEIGHT
IMPORTANT!
The seatpost has to be inserted into the seattube at a minimum of 100mm.
Never use another seatpost diameter than 31.6mm or try to use a shim/reducer
between seatpost and frame.
Please make sure to respect the 40mm distance between the cables and the BB
(bottom bracket) housing to avoid “ghost-shifting” and/or damages on the shift
cables and brake hose.
For the rear brake please assemble the cable as shown in the following drawings:

SCOTT Genius 2015 Specifications

General

Wheel Size	27.5"
Handlebar	Syncros FL1.5 Tbar, Alloy 7050 D.B., T shape Flat, 9°, 700mm
Seatpost	Syncros FL1.5, 31.6mm
Saddle	Syncros XR1.5, Titanium rails
Model Year	2015
Suspension	Full Suspension
Groupset	Shimano XT
Brakes	Shimano XT
Shifters	Shimano XT
Front Derailleur	Shimano XT
Rear Derailleur	Shimano XT
Crankset	Shimano XT
Tires	Schwalbe Nobby Nic
Category	Mountain
Frame Material	Carbon
Frame	Genius Carbon HMX
