ASSEMBLY OF THE REMOTE CABLE
IMPORTANT!
Please make sure the lockout of SRAM/RockShox or FOX fork is activated after
transport correctly. Therefore please compress fork 5-10 times before following the
manual on remote cable installation and adjustment.
The lever should show on the downside of the cable roll the brand name of the fork
you are going to use. Please do not try to use a RockShox roll with a FOX fork or
vice versa.
1. To assemble the cable please bring
the lever into the Descent Mode,
push the cable into the lever-
eyelet as shown on drawing below,
push it through the pre-cut cable
housing and fix it at the assembly
unit on top of the right side of the
fork crown.
2. Fix the cable with the 2mm allen screw on the barrel
adjuster on the fork crown with a tightening torque of
0.9Nm/8 lb/in, cut the cable and secure it with a cable
end-cap. Please refer for this action also to the manual
of SRAM/RockShox or FOX attached to the bike.
TIP:
To check for accurate cable tension, please try to move the plastic end cap of the
cable housing at the barrel adjuster on the remote lever. There should be “no-play”
between cap and barrel adjuster. In case of “play” please turn the barrel adjuster
clockwise until “no-play”.

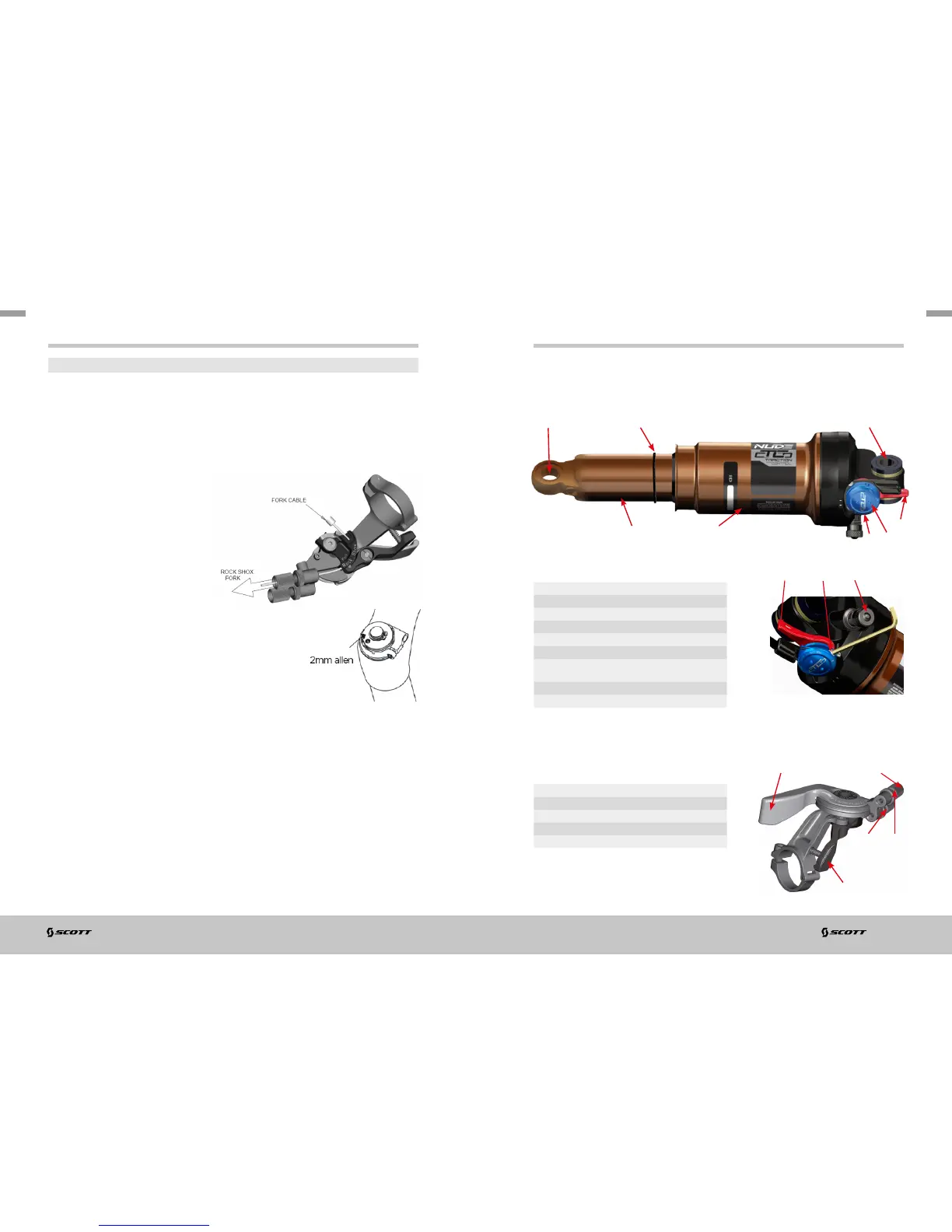

FOX NUDE SHOCK AND TWINLOC REMOTE CONTROL
LEVER
In the drawing of the shock and remote lever, shown below, you will see the parts
indicated with numbers which will be used in the manual for the adjustment and setup.
Parts List
S1 Front eyelet/ Shock Bolt
S2 Rear eyelet/ Shock Bolt
S3 Shock Housing
S4 Rebound-Adjuster Knob
S5 Positive Chamber Valve
S6 Remote Control Wheel
S7 Cable Fixing Screw
(hidden behind remote wheel)
S8 Shock Piston
S9 SAG Indicator (o-ring on piston)
L1 Remote Lever
L2 Release button
L3 Remote Control Cables
L4 Cable Tension Screw Fork Remote
L5 Cable Tension Screw Shock Remote
