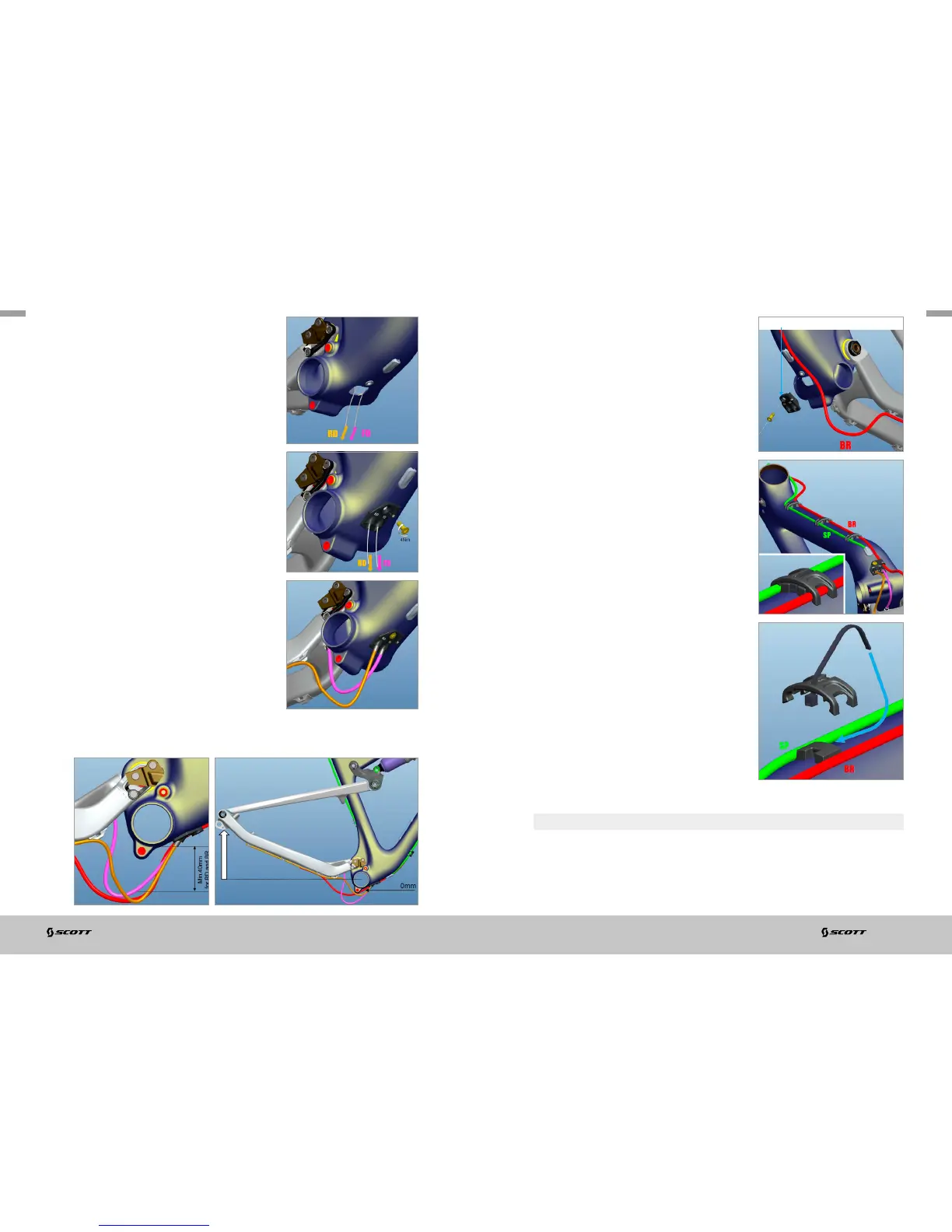

Please note that the inner cables need to cross each
other 1 time on the inside of the downtube before
you pull them out through the cable slot on the
lower downside of the downtube.
Push the cables through the cable guide as shown
below and fix the cable guide on the downtube with
a 3mm allen key and a tightening torque of max.
4Nm/35in/lbf.
Push the outer cable housings on the cables into the
cable guide but make sure to respect the needed
length as shown in the next drawing!
Please make sure to respect the 40mm distance between the cables and the BB
(bottom bracket) housing to avoid “ghost-shifting” and/or damages on the shift
cables and brake hose.
For the rear brake please assemble the cable as
shown in the following drawings:
Please keep in mind to have a minimum distance
of 40mm between the brake hose and the BB
housing as abovementioned!
Please fix the brake hose and the remote seatpost
cable housing (if applicable) on the frame on the
cable mounts with the mount clips by following
the routing info as shown below:
Please secure the clamps with a cable zipper as
shown in the drawing below:
The cable guide can be ordered via the SCOTT distribution with parts number:
229723 BB Cable Guide Genius (f. Carbon Frame)
