Operation and Maintenance Manual SC9DF Electronically Controlled Diesel Engine for Agricultural Equipment

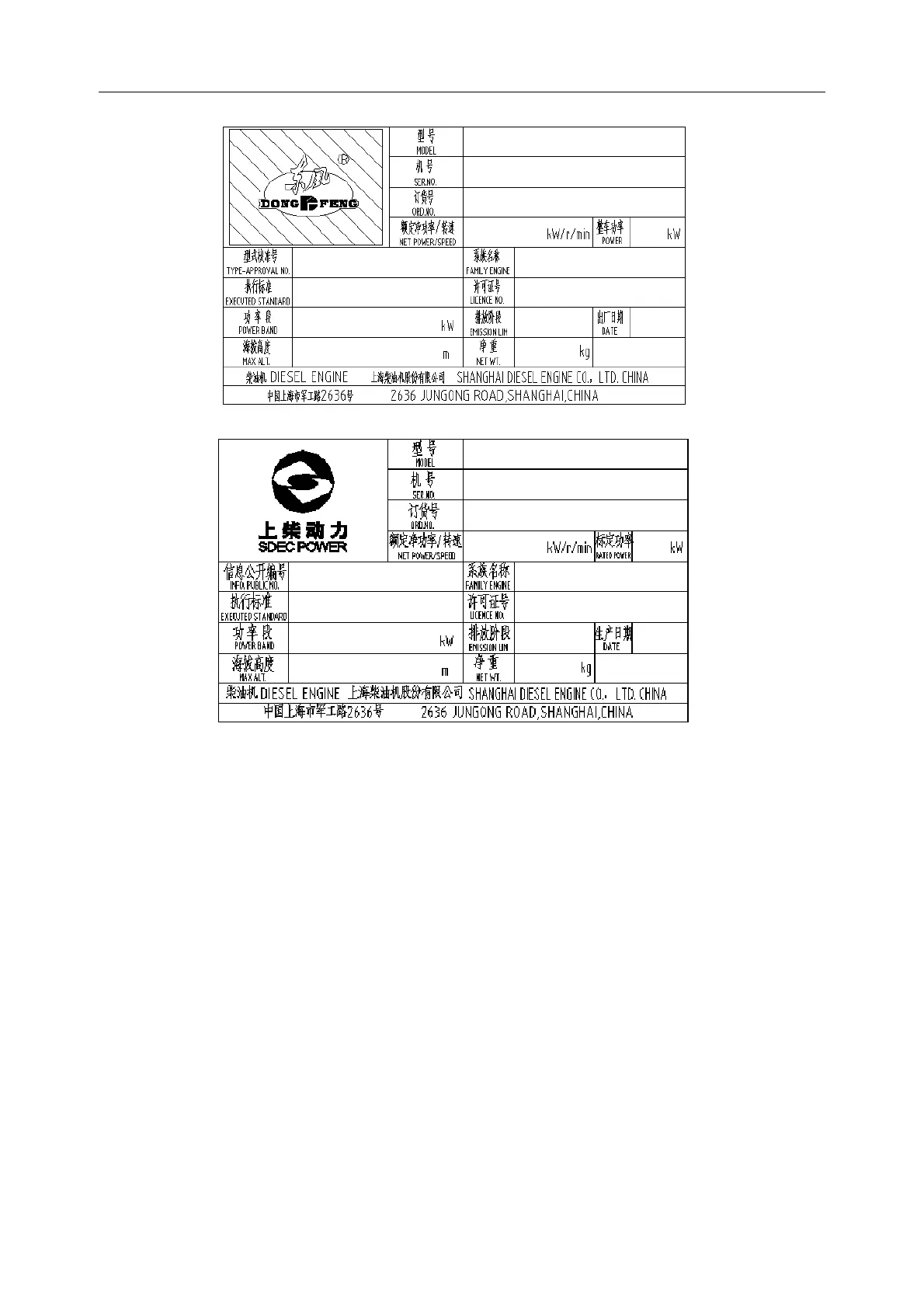

Note: The nameplate must not be changed unless approved by SDEC.

2.3 Engine Outlines

Below are the outlines of SC9DF375Q3 Diesel Engine

Note: The figs below are for only reference. Outlines differ from one application to another due to different

configurations.
