Operation & Maintenance Manual──LG958L/LG959 Wheel Loader
57
1. Gearbox Pressure Gauge 2. Brake Air Pressure Gauge 3. Working Chronometer
4. Left Turn Indicator Lamp 5. Indicator Lamp 6. Right Turn Indicator Lamp
7. Fuel Level Gauge 8. Engine Water Temperature Gauge
9. Torque Converter Oil Temperature Gauge 10. Starting Switch 11. Switch Group
12. Water Spraying Switch 13. Rain Wiper Switch 14. Cover Board
15. Rear Headlight Switch 16. Front Headlight Switch 17. Rear Light Lamp Switch
18. Warning Lamp Switch

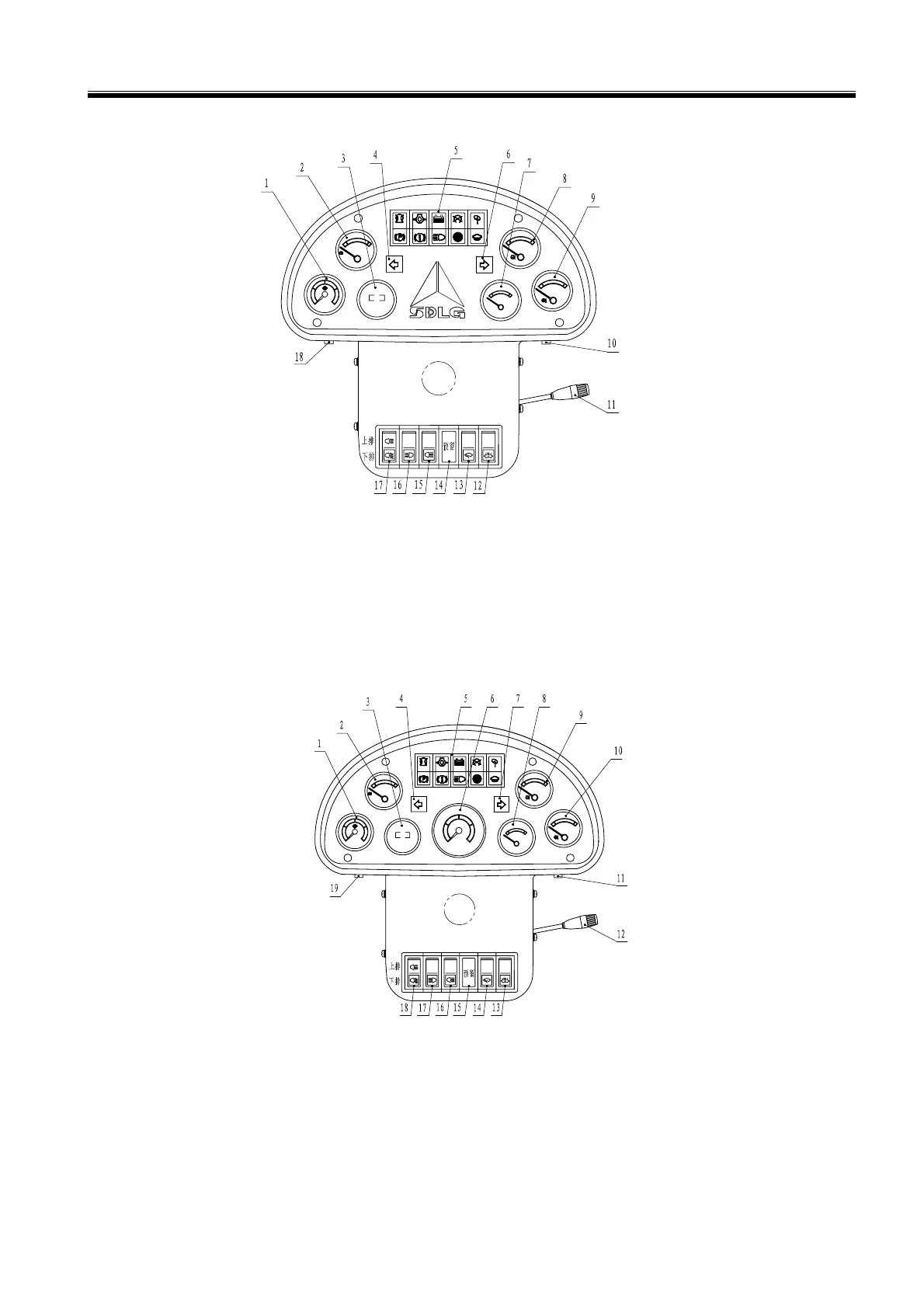

Figure 3-3 General View of Gauges
1. Gearbox Pressure Gauge 2. Brake Air Pressure Gauge 3. Working Chronometer
4. Left Turn Indicator Lamp 5. Indicator Lamp 6. Revolution Indicator
7. Right Turn Indicator Lamp 8. Fuel Level Gauge 9. Engine Water Temperature Gauge
10. Torque Converter Oil Temperature Gauge 11. Starting Switch 12. Switch Group
13. Water Spraying Switch 14. Rain Wiper Switch 15. Cover Board
16. Rear Headlight Switch 17. Front Headlight Switch 18. Rear Light Lamp Switch
19. Warning Lamp Switch
Figure 3-4 General View of Gauges (With Revolution Indicator)
