15
This document is the property of SDMO Industries.
Any communication, reproduction, publication, even partial, is forbidden, except with the written authorisation of the owner.

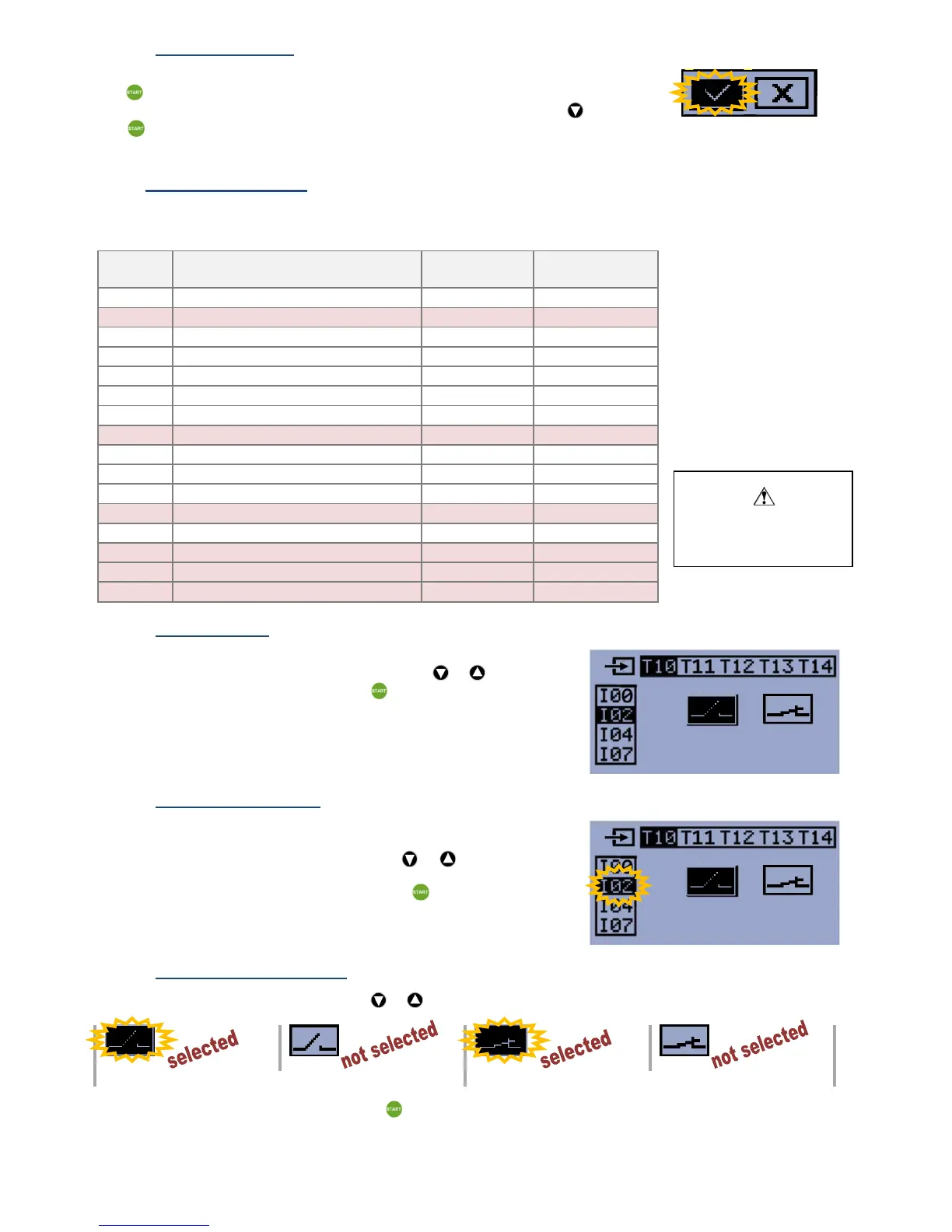

8.8.4 Confirming the output
the entire function programmed (output number, function, action type), by pressing
the button again.
To make any changes to the programming (before confirming), press the button then
the button to cancel the programming. Return to section ‘Selecting an output’ to select a
new output.
8.9 Input settings screen
The configurable inputs are marked T10 to T15. Each input can be assigned an "input code". Each "input code" performs a
specific function. The table below lists these functions.
code
function input type wiring to …
remote start order binary
terminal
return to generator breaker position binary
external alarm no. 1 binary
external alarm no. 2 binary
external alarm no. 3 binary
external fault no. 1 binary
terminal
external fault no. 2 binary
external fault no. 3 binary
fuel level analog
terminal
oil pressure analog
terminal
high coolant temperature binary
terminal
coolant temperature analog
terminal
input flashes.
Select the input to be programmed by pressing on the or button.
Confirm the selected input, by pressing the button.
8.9.2 Selecting the "input code"
, the "input code" programmed on the
input selected previously (e.g. I02) flashes.
Select the desired "input code", by pressing the or button (see section
‘"Input settings" screen’ for possible input codes).
Confirm the "input code" selected, by pressing the button.
8.9.3 Selecting the input action type
Select the input action type by pressing the or button.
"normally open contact" type action "normally closed contact" type action
Confirm the input action type, by pressing the button.
the standard configuration
"input codes" are greyed
out.
