SDMO APM303 User Manual

16
This document is the property of SDMO Industries.
Any communication, reproduction, publication, even partial, is forbidden, except with the written authorisation of the owner.
8.9.4 Confirming the input

Confirm
the entire function programmed (input number, function, action type), by pressing
the button again.
 To make any changes to the programming (before confirming), press the button then the
button to cancel the programming. Return to section ‘Selecting an input’ to select a new
input.
8.10 Miscellaneous information screen
This screen displays general information about the generating set and the APM303 module.
This screen corresponds to screen 0 described in section ‘INIT, screen 0’.

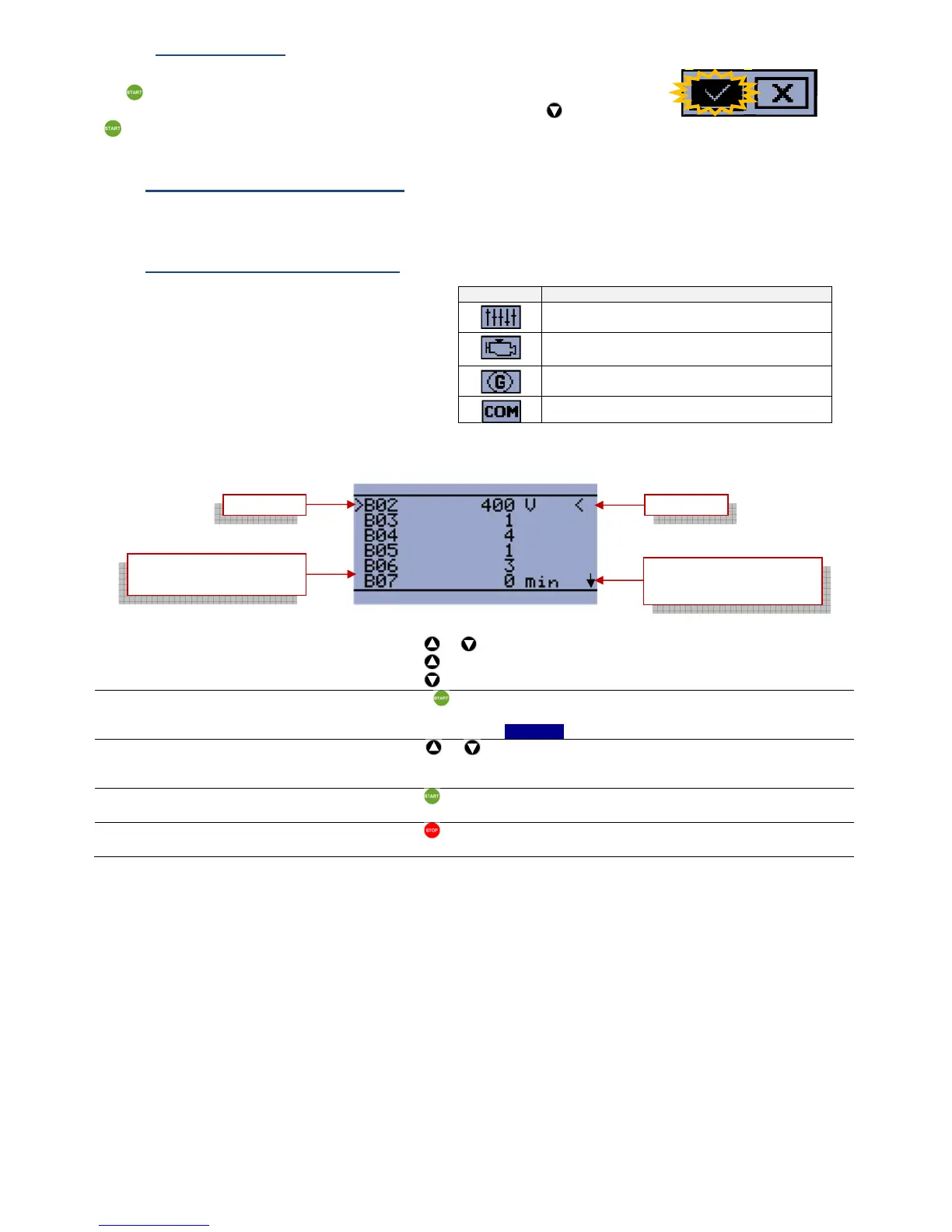

8.11 Setting principle in other screens
This section explains how to access and modify a
parameter in the screens opposite.
The explanations below concern the "basic settings"
screen, but they are also valid for the other 3 screens.
icon
screen description
Basic settings
Motor protection and parameters
Alternator protection
Modbus communication parameters
A cursor is position on the first parameter (B01 or B02 depending on the setting of B04). A maximum of 6 parameters appear on
screen.
Figure 17 - setting principle

to select
a parameter:
press the or button (the cursor moves up or down)
(pressing at the top of the screen does not work)
(pressing at the bottom of the screen does not work)

to access
a parameter:
press the button, the parameter value appears in a dark box (inverted
backlighting)
e.g.: with B02 selected, _____400 is displayed

to modify
a parameter:
press the or buttons to change the parameter value; press as many times
as necessary, or press and hold the button until the desired setting is displayed
e.g.: with B02 (400V) selected, press 10 times to obtain 410V

to confi
rm
the change:
press the button to confirm the parameter change

to exit
the screen:
press the button, to return to the "main menu" screen
cursor cursor
indicates that there are more
than 6 parameters on the
screen
6 parameters displayed on
each screen page
