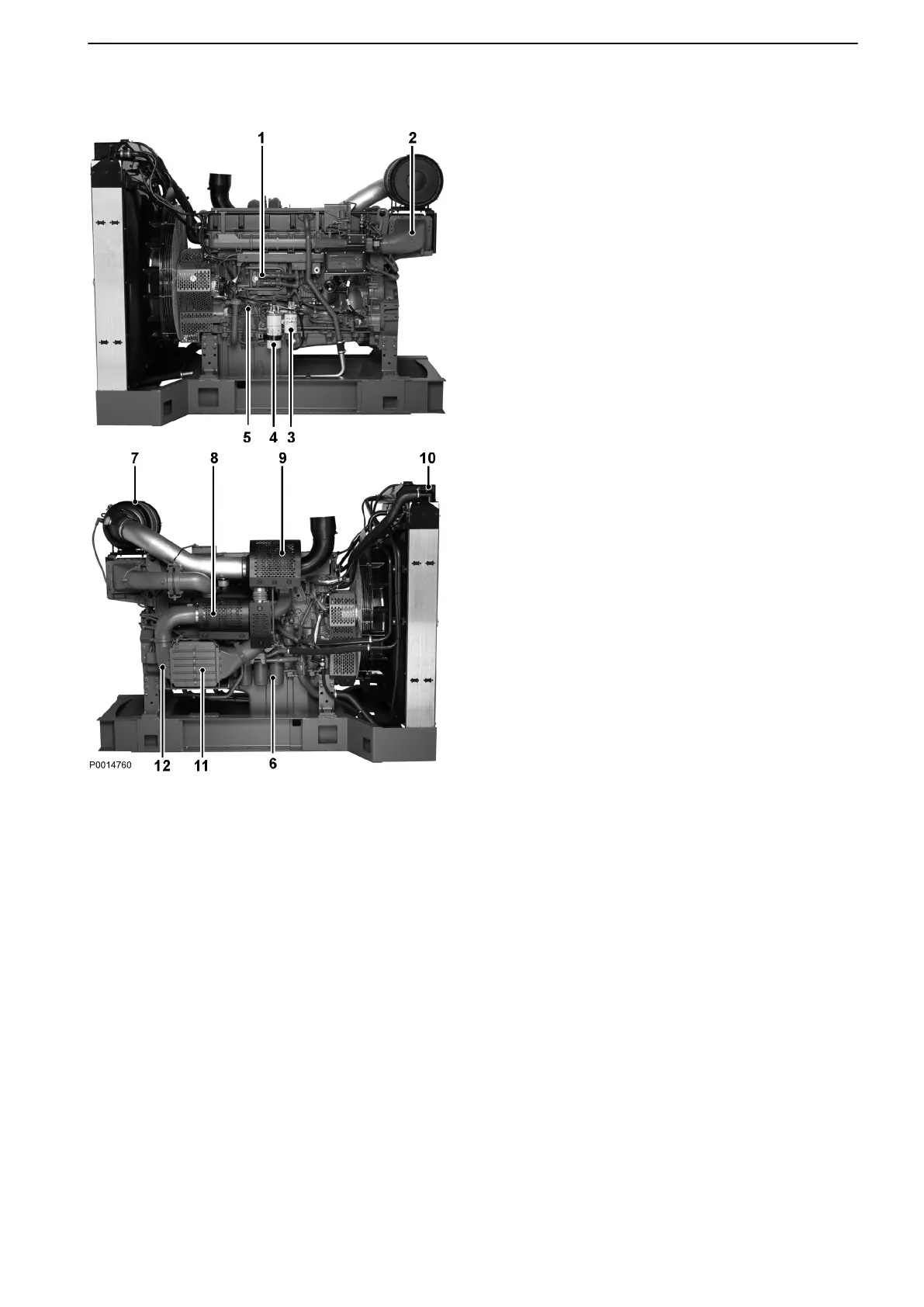

TWD1643GE
1 Control unit, EMS
2 Charge air cooler, HP-turbo
3 Oil filler
4
Oil dipstick
5 Fuel filter with fuel pressure monitor
6 Fuel pre-filter with water monitor
7 Air filter
8 HP-turbo
9 LP-turbo
10 Expansion tank
11 Starter motor, located behind charge air cooler
12 Charge air cooler, LP-turbo
13 Oil filter
Maintenance
