4.8. Electrical connection diagram

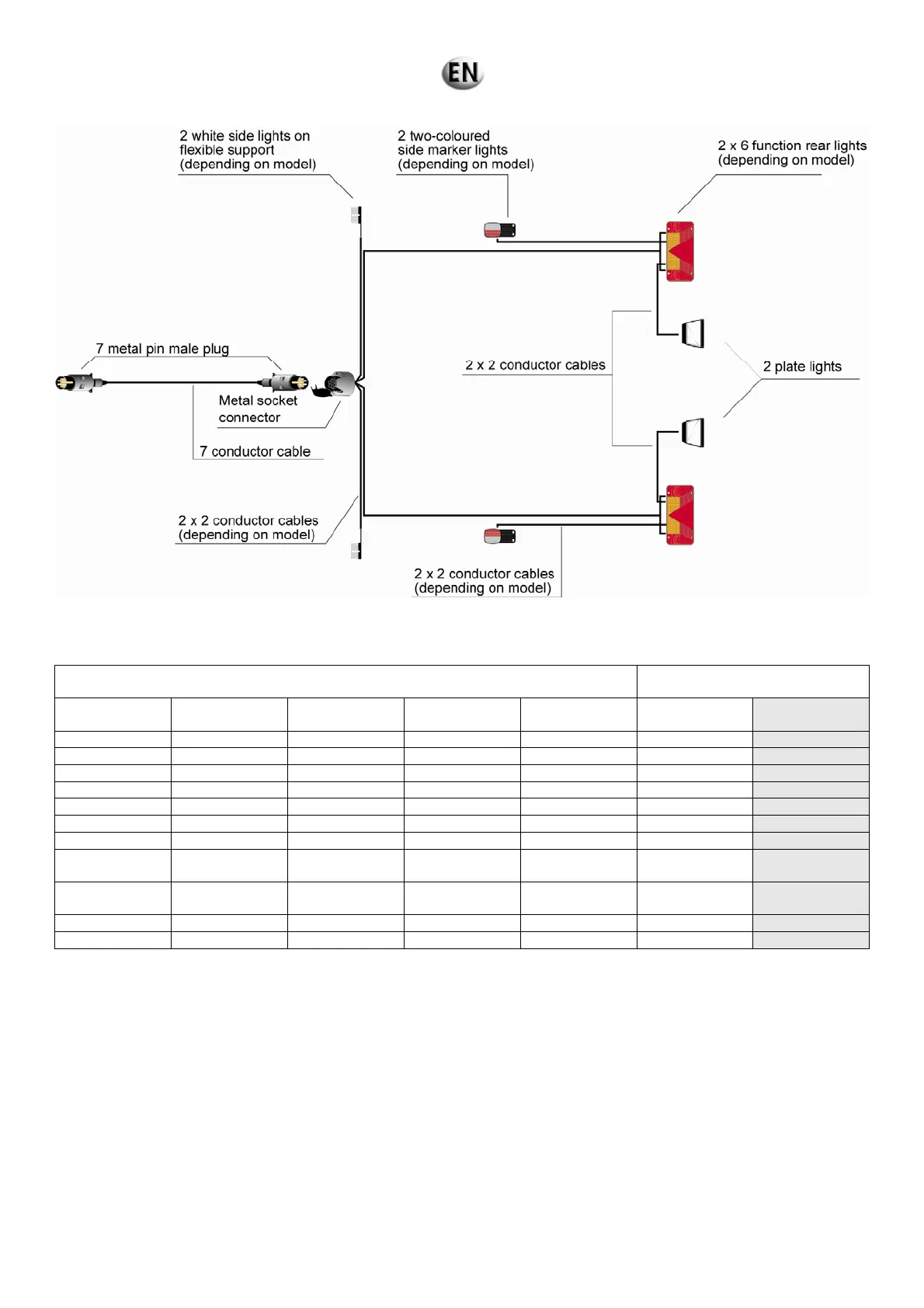

Figure 4.6 : Electrical connection diagram
4.9. Complete wheels technical information
TYRES
COMPLETE
WHEELS
Dimensions Indices Diameter (mm)
Cross section
(mm)
Radius under
load (mm)
Load
(Kg)
Pressure
(bar)
135 R 13 70 T 550 134 265 335 2.4
145 R 13 75 T 566 145 272 387 2.4
155 R 13 79 T 578 150 277 437 2.4
145/70 R 13 71 T 534 150 259 345 2.5
155/70 R 13 75 T 548 147 263 387 2.5
185/70 R 13 86 T 594 185 285 530 2.5
165 R 14 C 98 N 622 172 284 650 3.8
155/70 R12 100 N 525 155 244
650
(1)
800
(2)
6.25
185 R 14 C 102 P 650 188 316
675
(1)
850
(2)
4.5
195 R 14 C 106 P 666 198 32 950 4.5
195/50 x 10 98 N 450 190 - 750 6.0
(1)
Wheel with 4 holes
(2)
Wheel with 5 holes
