6.3.6.4. Operating menus
Operation

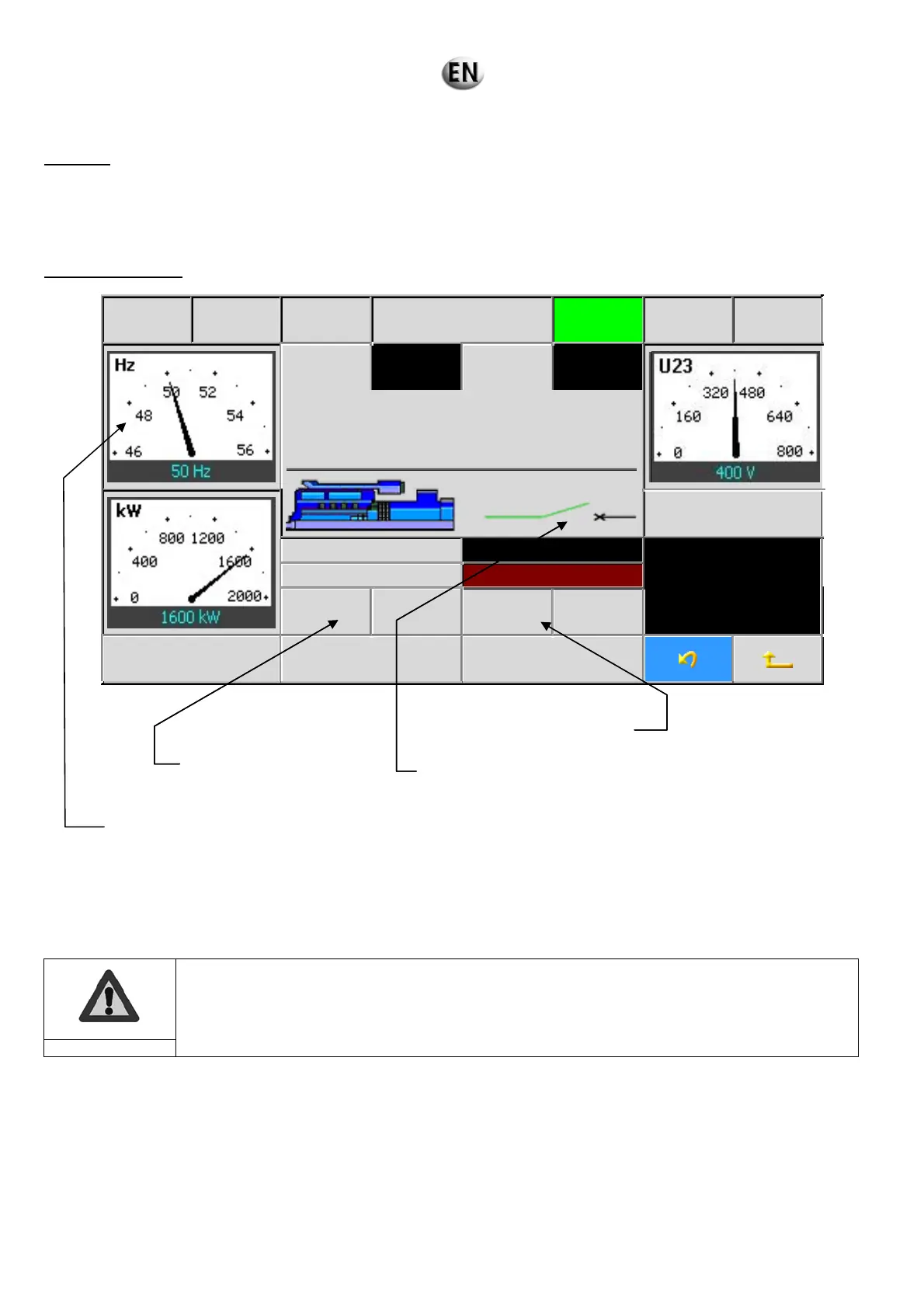

This main screen displays all the main electrical parameters of the generating set.
It is the general operating and monitoring screen for the generating set.
This screen can also be displayed by pressing the indicator displaying the operation mode of the generating set.
The frequency, U23 voltage, active and reactive power indicators, can be displayed in analog or digital form. Switching from one mode
to another is performed by pressing the desired indicator.
Navigation reference: 1.1
15/07/09 19:10 :00 GS 1 Operation Manu Faults Alarms
I1 (A) 2701 P.F. 0,9 L
Status messages
Q (kVAr)
Speed (rpm) 1505
765
Operating time: 10 :05
+ F - F + U -U
- 1 -
Function keys
- 2 -
Synchro. column
- 3 -
Central unit measure.
summary
In the needle dials the nominal values are in blue
The speed and voltage adjustment keys are only displayed for coupled applications in manual mode.
Important
The dial is automatically scaled beyond 46Hz
Indication de la position du départ groupe
Commande de la vitesse de
rotation du moteur
Commande de la tension de
l’alternateu
r
Indication of the genset output position
Control of speed of rotation of
the engine
Control of alternator voltage
