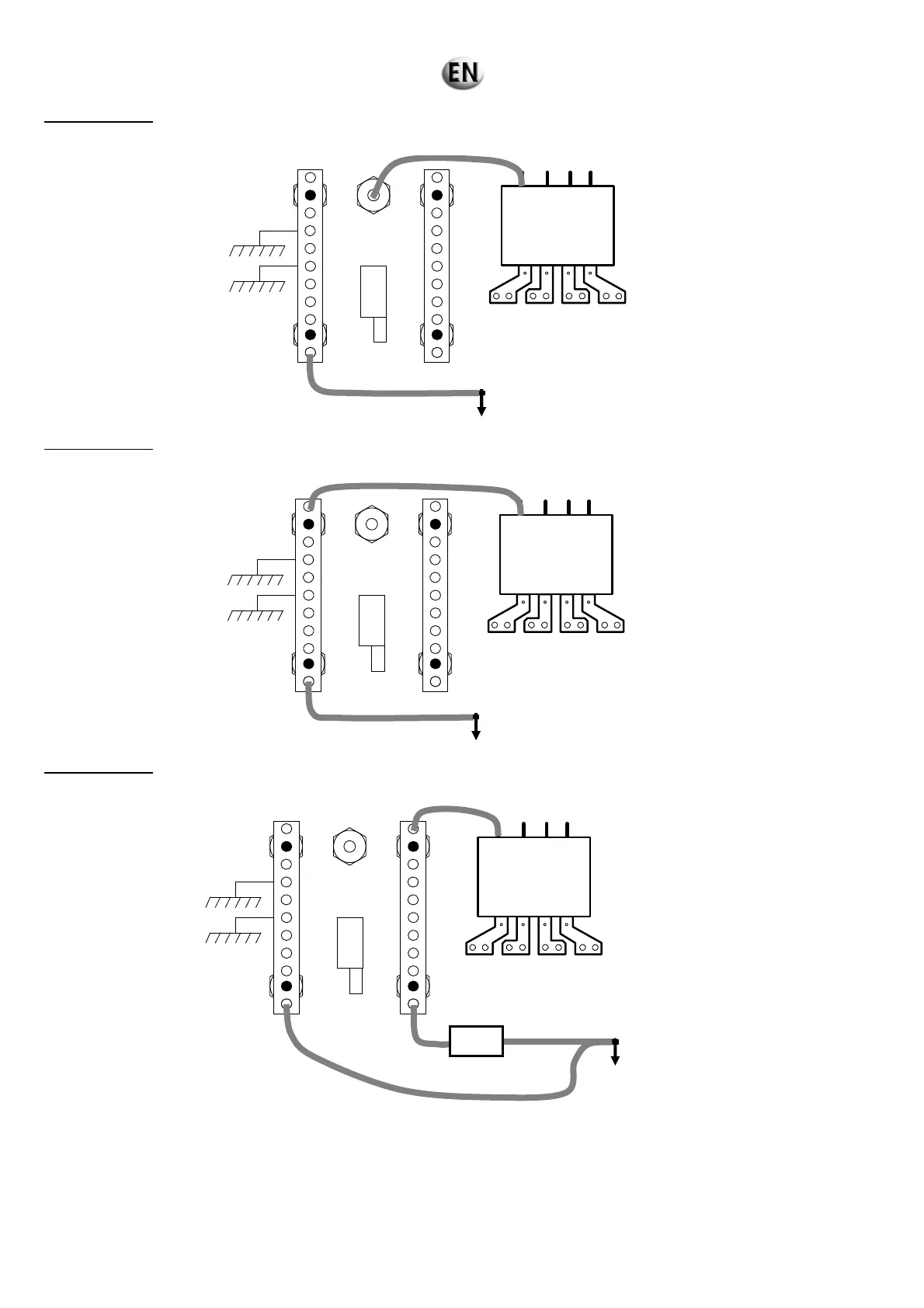

Earthing system: IT
Earthing system: TNS
Earthing system: TT
DISJONCTEUR
N
R
ST
Neutral
Ground
Ground rod
Junction box
DISJONCTEUR
N
R
ST
Neutral connected to grounds
Ground
Ground rod
DISJONCTEUR
N
R
ST
Ground
Ground rod
If equipped
CIRCUIT
BREAKER
CIRCUIT
BREAKER
CIRCUIT
BREAKER
Current
transformer
Current
transformer
Isolated neutral
Current
transformer
82/297
