VERSO 50_v1.0.27_EN 33502027401_3_1 page 10/24

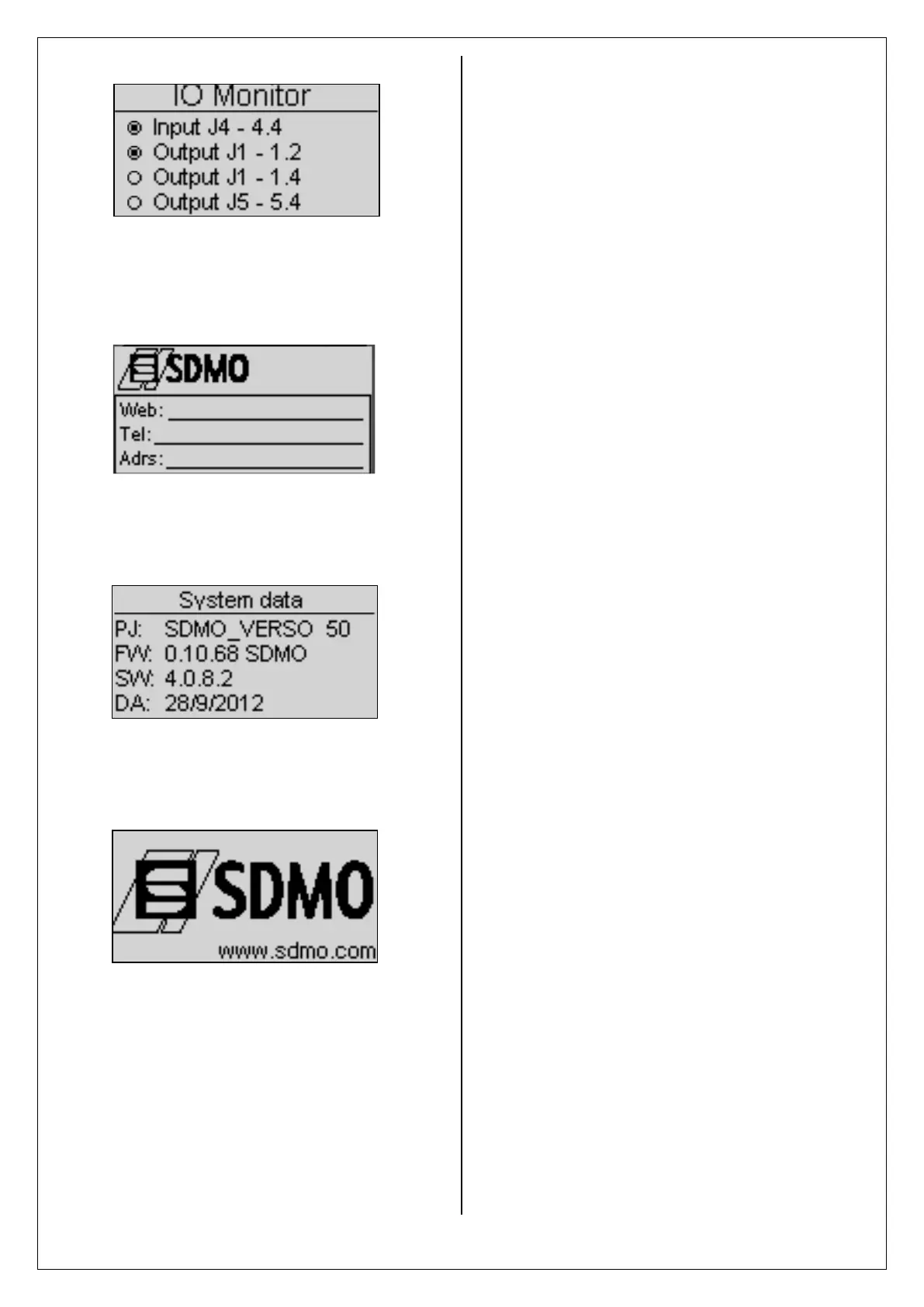

1- 8.8 I/O Monitor
In this page you can see the state of the input J4.4 (EJPT)
and the 3 outputs J1.2 (KR), J1.4 (KG) and J5.4 (Remote
start output).
1- 8.9 Info page
This page contains the contacts data of the manufacturer –
web address, telephone number and address.
1- 8.10 System data
This page contains the informations about the project, the
firmware and software version of the controller.
1- 8.11 Logo page
