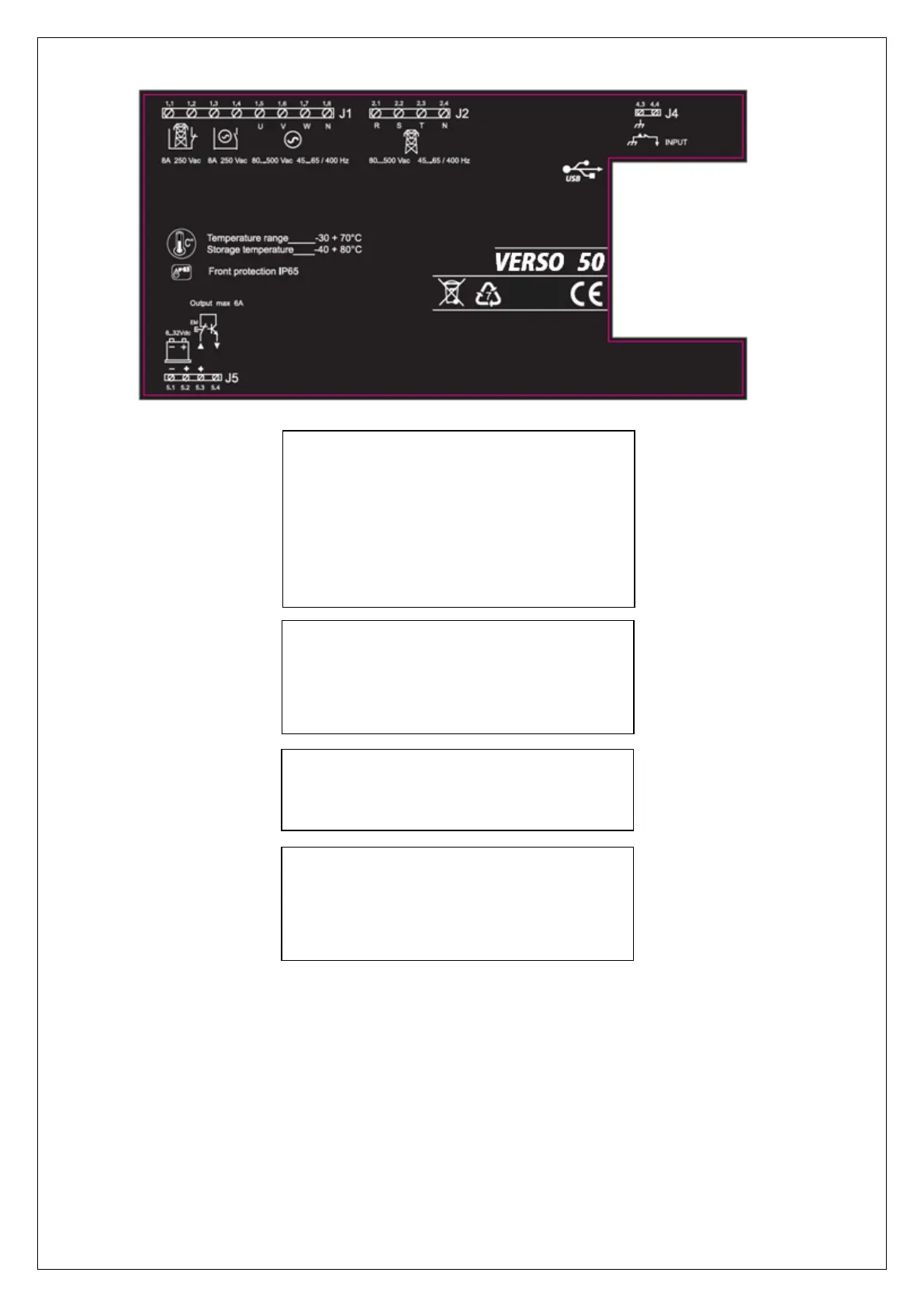

1- 5 Connections
J1 – Genset AC voltage and contactors
1.1 - Mains contactor output (NC)
1.2 - Mains contactor output (NC)
1.3 - Genset contactor output (NO)
1.4 - Genset contactor output (NO)
1.5 - Genset voltage phase 1
1.6 - Genset voltage phase 2
1.7 - Genset voltage phase 3
1.8 - Neutral
J5 – Supply and Outputs
5.1 - Battery negative
5.2 - Battery positive
5.3 - Common positive for remote start output (+)
5.4 - Remote start output (+)
J2 – Mains AC voltage
2.1 - Mains voltage phase 1
2.2 - Mains voltage phase 2
2.3 - Mains voltage phase 3
2.4 - Neutral
J4 – Digital inputs
4.3 - Gnd
4.4 - Digital input for EJPT - French market only
