SDMO VERSO 50 - Overview; Main Characteristics; Installation; Wiring

VERSO 50_v1.0.27_EN 33502027401_3_1 page 2/24

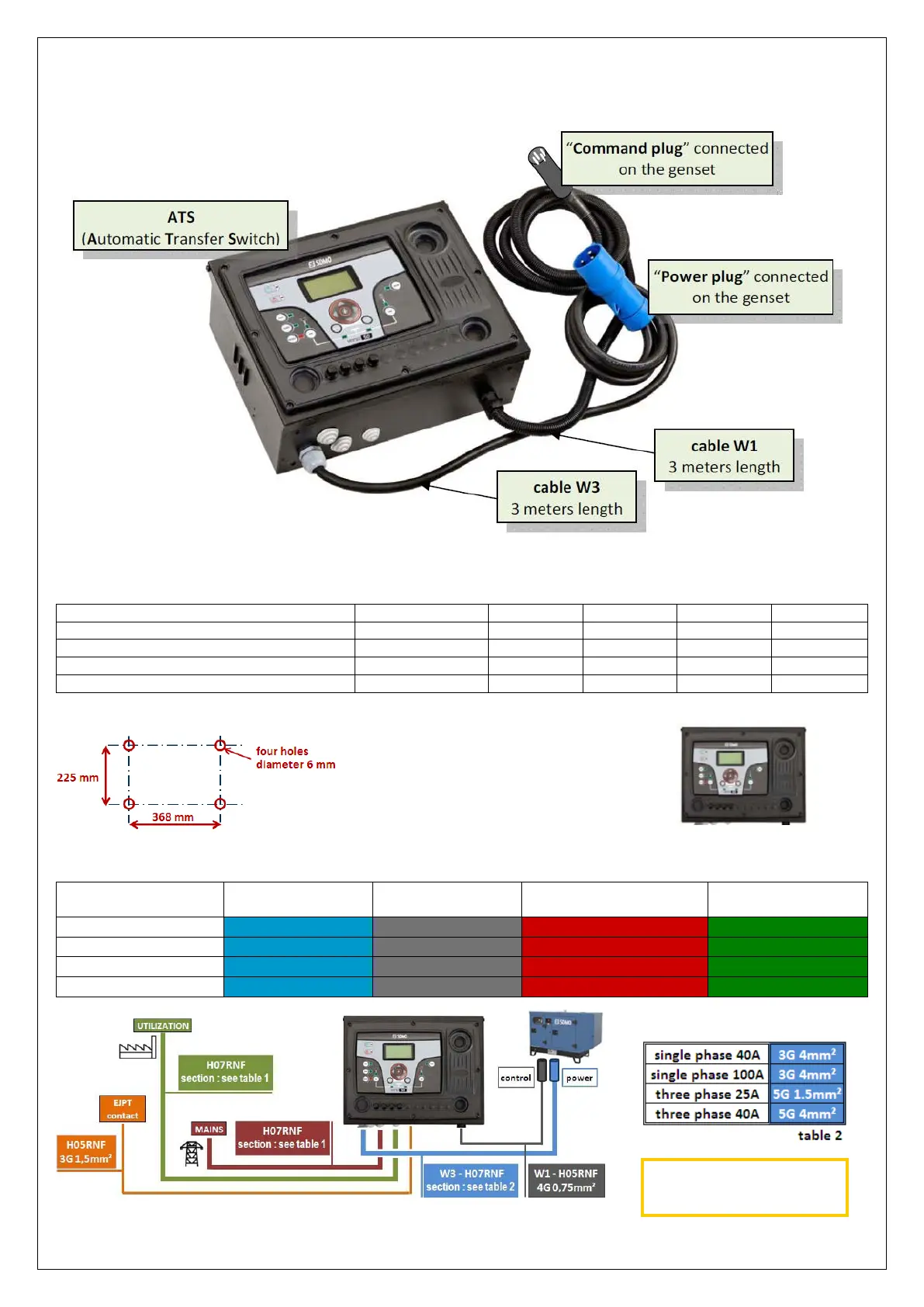

OVERVIEW - MAIN CHARACTERISTICS - INSTALLATION - WIRING
Complete delivered equipment with connecting cables
Protection degree: IP20
References ‐ Sizes and Weights:
ATS type
reference
height (mm)
width (mm)
depth (mm)
weight (kg)
single phase 40A (see 3-1 page 20/24)
31614298804NE
280
400
150
10
single phase 100A (see 3-2 page 21/24)
31614298904NE
280
400
150
10
three phase 25A (see 3-3 page 22/24)
31614299004NE
280
400
150
10
three phase 40A (see 3-4 page 23/24)
31614299104NE
280
400
150
10
Entraxe of fixation:
The panel must be fixed on the wall like the
picture opposite, with appropriate material.
Be careful, there are 3 meters length cable
between the genset control panel and the ATS.
Section of cables - plug caliber - Installation diagram:
ATS type
Generator
(power plug)
Generator
(control plug)
Mains
(directly on the contactor)
Utilization
(terminal blocks)
single phase 40A
32 Amps-3 pins
4 pins ‐ 0,75mm²
up to 2 x 6mm² / phase
up to 25mm²
single phase 100A
32 Amps-3 pins
4 pins ‐ 0,75mm²
up to 1 x 25mm² / phase
up to 50mm²
three phase 25A
16 Amps-5 pins
4 pins ‐ 0,75mm²
up to 1 x 6mm² / phase
up to 10mm²
three phase 40A
32 Amps-5 pins
4 pins ‐ 0,75mm²
up to 1 x 6mm² / phase
up to 16mm²
table 1
See complete electrical
diagrams pages 20,21,22,23
