SECTION 2 • GENERAL BOAT ARRANGEMENT
220 Select
4. BASIC BOAT DIMENSIONS AND CLEARANCES
BOAT DIMENSIONS AND CLEARANCES

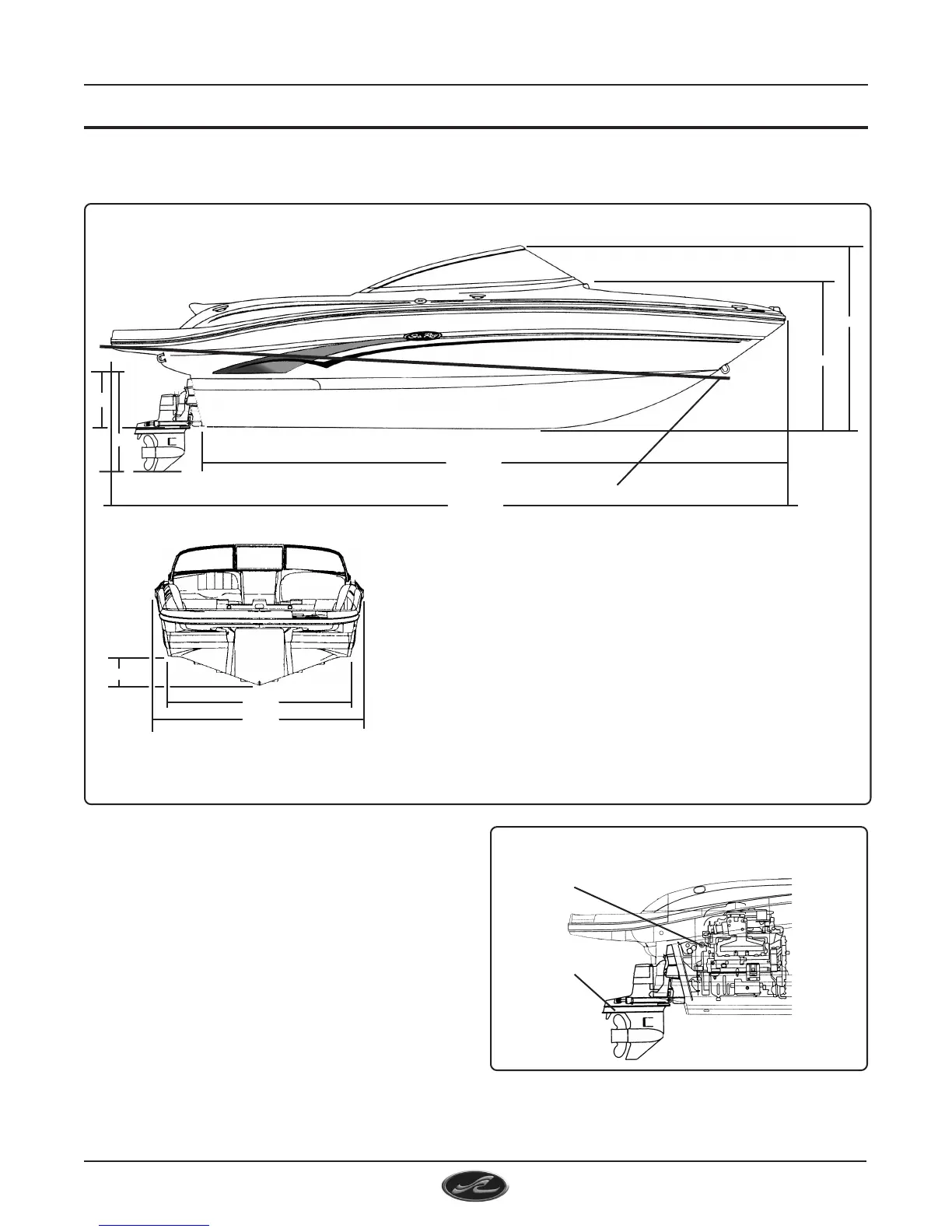

(FIG. 2.3.1)
17’ 6”
23’ 0”
1’ 2 3/8”
Length overall........................................ 23ft. 7.01m
Maximum beam .................................... 8ft. 6in. 2.59m
Bow to transom/keel intersection ......... 17ft. 6in. 5.33m
Draft(stern drive down) .......................... 36” 93cm
(stern drive up)....................... 20” 51cm
Fuel capacity ........................................ 47 gal. 140 Liters
Dry Weight ........................................... 3850 lbs 1588 kg
Dead rise .............................................. 21
o
Height Dimensions
Keel to Top of Windshield ..................... 5’ 9.5” 1.85m
Keel to Bottom of Windshield ............... 4’ 8.5” 1.48m
20”
STERN DRIVE (INBOARD-OUTBOARD) ENGINE
(FIG. 2.3.2)
ENGINE
STERN DRIVE
(LOWER UNIT)
STANDARD PROPULSION FOR THE 220 SELECT:
• 5.0L MPI Alpha
TM
1 MCM (260hp - 194kW)
OPTIONAL PROPULSION:
• 5.0L MPI Bravo
®
III MCM (260hp - 194kW)
• MX 6.2L Bravo
®
III MCM (320hp - 239kW)
5. PROPELLERS
Your Sea Ray
®
has been equipped with propellers
which our tests have shown to be the best suited
for general use under normal conditions and load.
FULL LOAD WATER LINE
36”
7’ 3”
8’ 6”
Under no circumstances use a propeller which
allows the engine to operate at higher than
maximum RPM for your engine.
5’ 9.5”
4’ 8.5”
