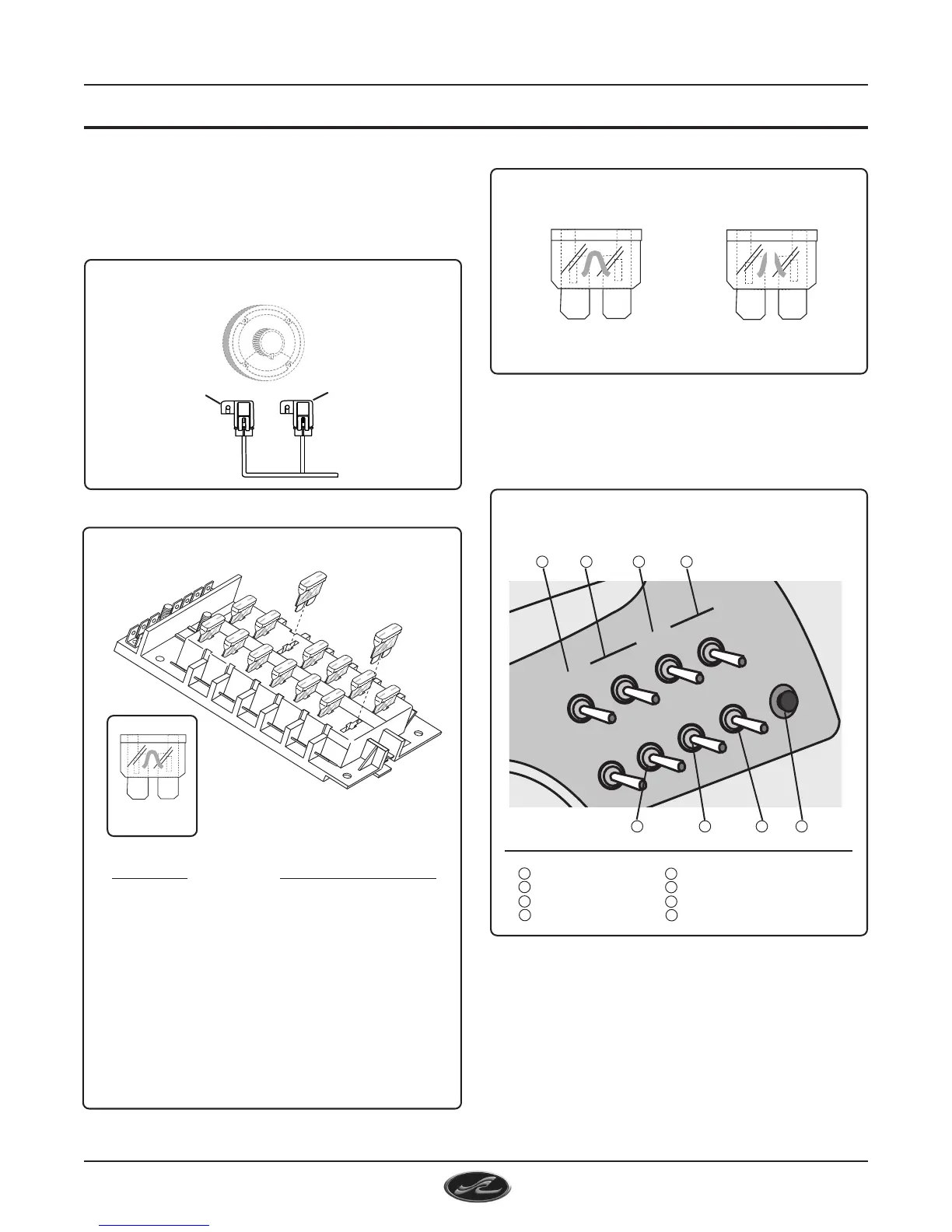

Sea Ray 220 Select - Control Station Switch Panel Layout

6.5
SECTION 6 • ELECTRICAL SYSTEM
220 Select
ANCHOR
NAV
COCKPIT
BILGE
PUMP
BILGE
BLOWER
HORN
LIGHTS
ACCY
WIPER
THRU-HULL
EXHAUST
Fuses for the stereo memory and the bilge pump
are located on the port hull under the optional battery
switch and can be accessed by raising the aft jump
seat.
STEREO MEMORY/BILGE PUMP FUSES
(FIG. 6.5.1)
ON
ON
OFF
OFF
F
U
L
L
Y
E
N
G
A
G
E
D
A
T
D
E
T
E
N
T
S
S
T
O
P
E
N
G
I
N
E
B
E
F
O
R
E
S
W
I
T
C
H
I
N
G
O
F
F
STEREO MEMORY
FUSE (15 AMP)
BILGE PUMP
FUSE (7.5 AMP)
FUSE CONDITION (ATO TYPE FUSE)
(FIG. 6.5.3)
GOOD FUSE
BLOWN FUSE
ATO FUSE
(AUTO TYPE)
FUSE NAME FUSE AMPERAGE 12VDC
HORN 5
IGNITION 15
NAV LIGHTS 10
BLOWER 7.5
WIPER 5
BILGE PUMP 7.5
WATER PUMP 5
12VDC RECEPTACLE 15
TRIM TABS 20
LIGHTS 10
FRIDGE 15
HATCH LIFT 15
ACCY SW 15
CO MONITOR 1A
FUSES
(FIG. 6.5.2)
ELECTRONIC SWITCH PAD
(FIG. 6.5.4)
ACCESSORY
ANCHOR LIGHT
NAVIGATION LIGHTS
COCKPIT LIGHTS
A
B
C
D
A B C D
E F G H
WINDSHIELD WIPER (OPTIONAL)
BILGE PUMP
BILGE BLOWER
HORN BUTTON
E
F
G
H
4. CONTROL STATION SWITCH PANEL
