Sea Ray 220 Select - Automatic Fire Extinguisher System (Optional)

7.6
SECTION 7 • OPTIONS & ACCESSORIES
220 Select
AUTO
MAT
SYSTEM LI
GHT
GASOLINE VAPORS
CAN EXPLODE RESUL
TIN
G
IN INJURY OR DEATH
! WARNING
• In case of fire DO NOT open engine box or
compartment.
• Shut down engine and blowers.
• Continususly discharge entire contents of portable
fire extinguisher through port immediately.
! WARNING
13. FIRE EXTINGUISHER PORT
Your boat is equipped with a fire extinguisher
discharge port. In the event of a fire, a fire
extinguisher can be inserted through the port and
discharged into the engine compartment without
having to open the engine box. Do not open the
engine compartment immediately! This feeds
oxygen to the fire and flashback could occur.
IF A FIRE OCCURS, IMMEDIATELY SHUT
DOWN ALL ENGINES, POWERED
VENTILATION, ELECTRICAL SYSTEMS AND
EXTINGUISH ALL SMOKING MATERIALS. DO
NOT IMMEDIATELY OPEN THE ENGINE
COMPARTMENT!! THIS FEEDS OXYGEN TO
THE FIRE AND FLASHBACK COULD OCCUR.

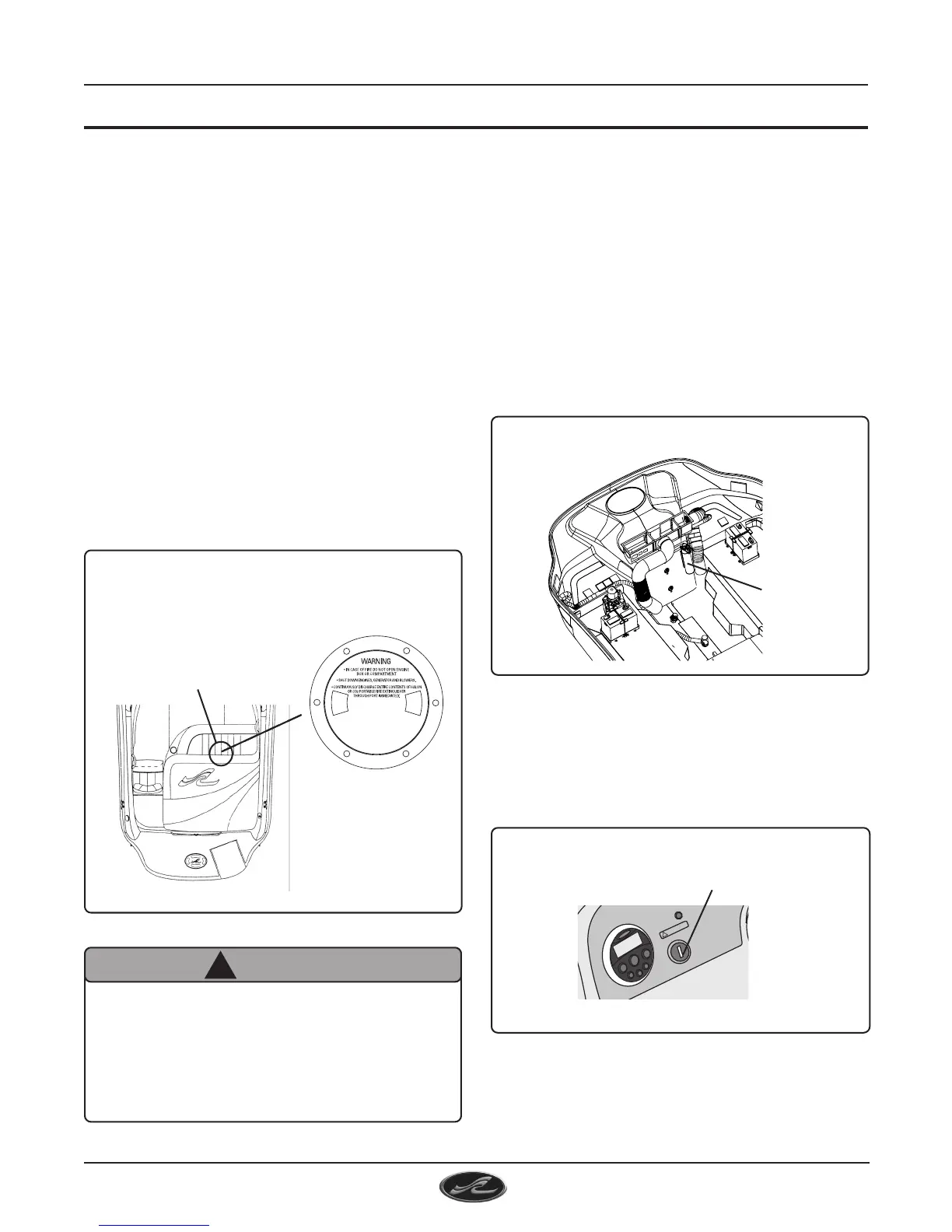

FIRE EXTINGUISHER DISCHARGE PORT
( FIG. 7.6.1)
DISCHARGE PORT
BELOW SEAT CUSHION
14. AUTOMATIC FIRE EXTINGUISHER
SYSTEM (OPTION)
If equipped the 220 Select automatic fire
extinguisher system is located aft of the engine on
the transom. In the event of a fire, the heat sensitive
automotic head will release the extinguishant as a
vapor, totally flooding the area in fire-killing
concentrations. The system indicator light is wired
to the ignition and is turned ON when the ignition is
turned ON.
The indicator light, located on the dash panel,
indicates to the helmsman when the unit has
discharged. Under normal circumstances, when
the engines are operating, the charge indicator light
is lit. If the unit discharges, the charge light will go
out.
AUTOMATIC FIRE EXTINGUISHER
(FIG. 7.6.2)
AUTOMATIC FIRE EXTINGUISHER INDICATOR LIGHT
( FIG. 7.6.3)
INDICATOR LIGHT
AUTOMATIC
FIRE EXTINGUISHER
