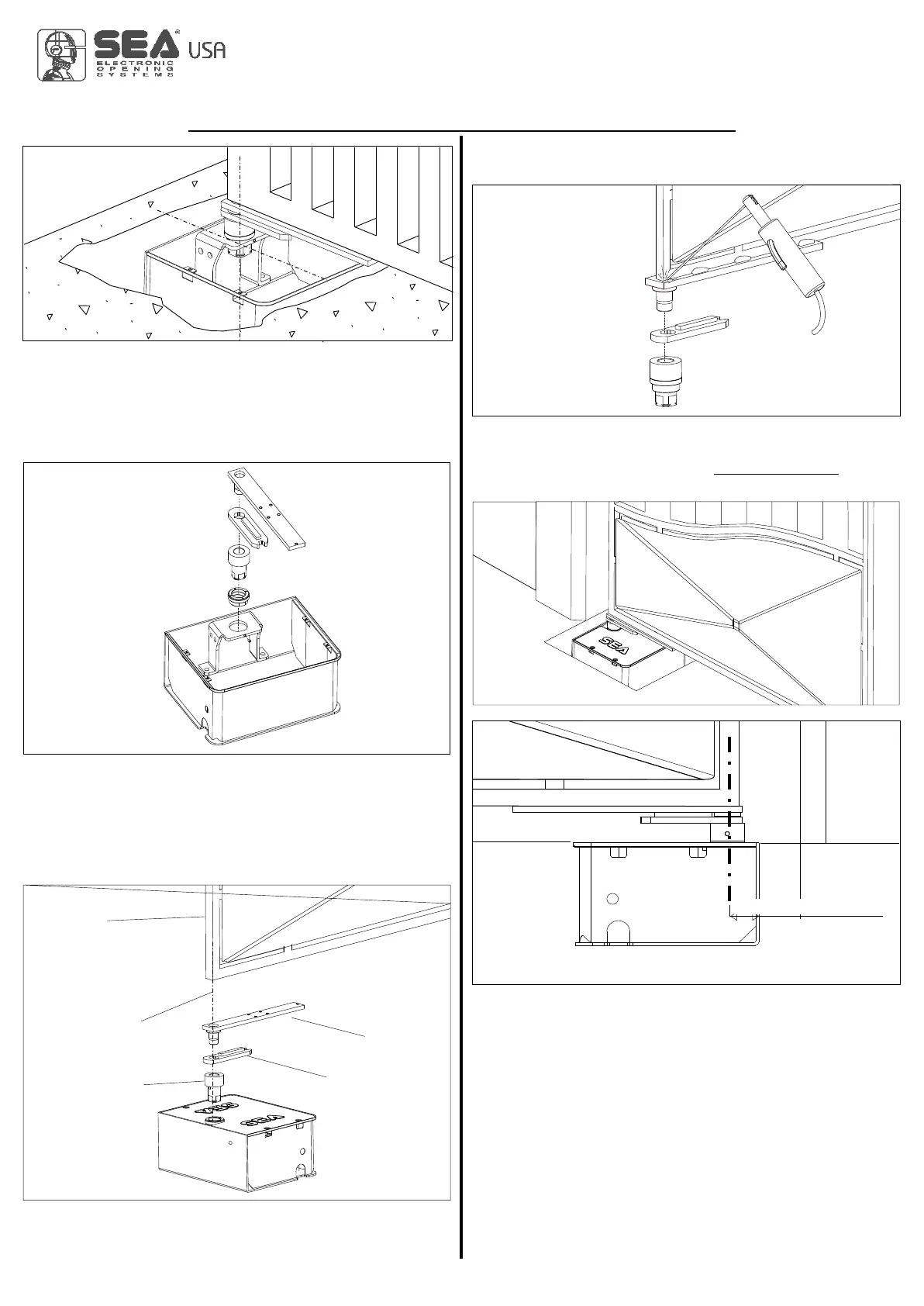

11. LEAF ASSEMBLING ON CARRYING BOX
Before installing the gate make sure that the concrete has
hardened into the foundation hole.
11.1. Position the leaf of the gate on the leaf device making
reference to the rotation axe of the leaf hinge (Fig. 38);
11.2. Weld with care the leaf device to the leaf of the gate
realizing a tract fixation of ca. 1,18-1,57 inches along the surface
of the contact, avoiding the welding next to the threaded
Fig. 36
10.4. Introduce the buckle of creeping in the box and fix it with
the special screws (Fig. 37).
10.5. Insert the units as in Fig. 37.
N.B.: During the insertion of the units lubricate
them with the supplied grease.
holes, furthermore it is necessary to respect the perpendicularity
to the axe of rotation (Fig. 39)
Fig. 39
11.3. Be careful not to place the leaf outside the axis (Fig. 20
and 21), but make sure the shaft corresponds to the hinge
rotation axis remembering that the minimum distance from the
pillar is 2,16 inches (Fig. 41).
