SEA SWING 2 - Safety Loop Connection

Loop 1
Loop1
Loop2
Loop3
10 11
1 2 3 4 5 6 7 8 9
-
C1
CN1
C2
THIS SCHEME IS AN
EXPAMPLE FOR HOW TO
CONNECT EVENTUAL
MAGNETIC LOOPS.
SWING 2
SWING 2
Note: In reality all contacts can be set
as N.O. or N.C.
+
English

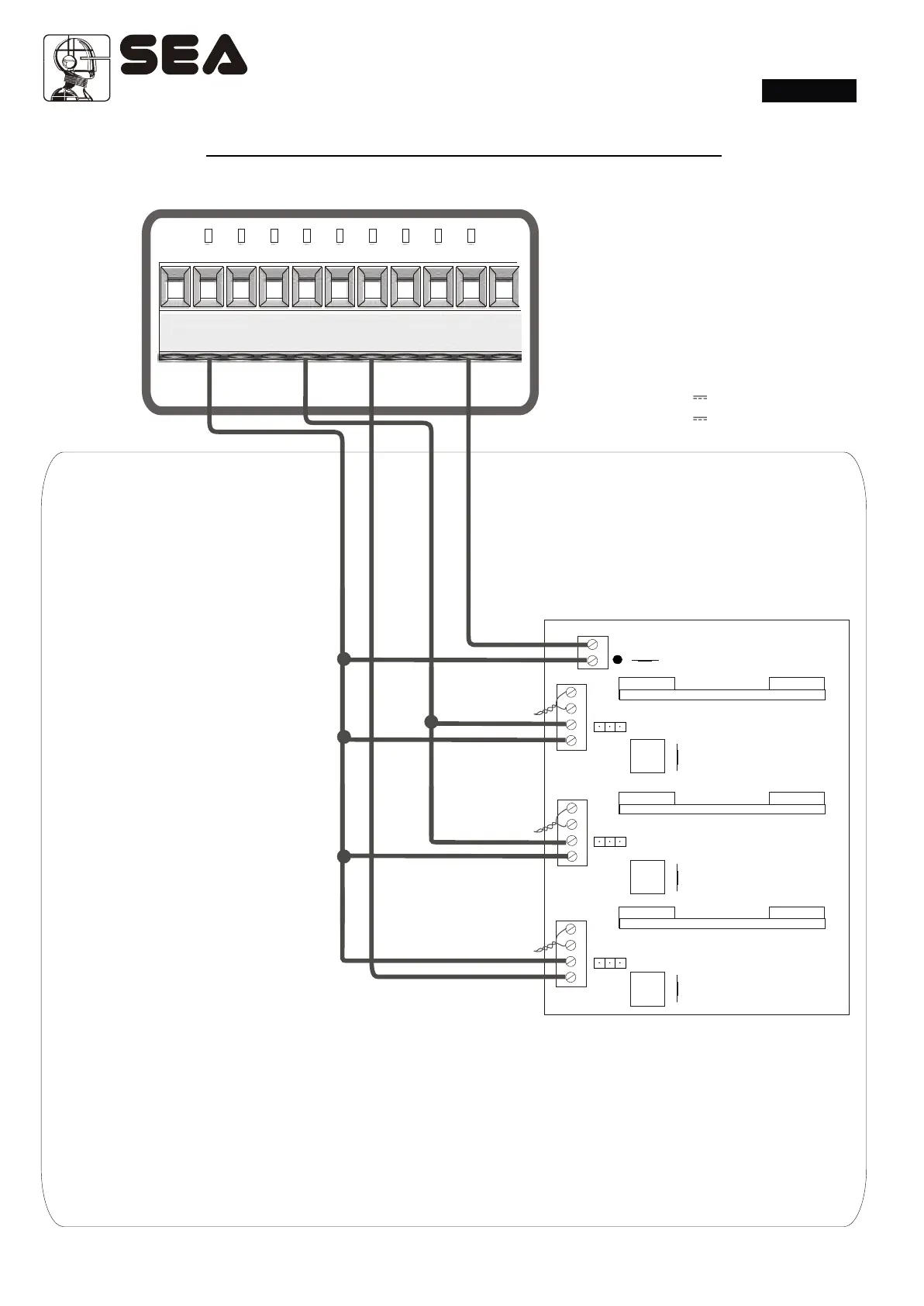

SAFETY LOOP CONNECTION
Loop exit 1
Connecting scheme of
loop 1
5 = Contact start
(n.o.)
2 = Common
Loop exit 2
Connecting scheme of
loop 2
5 = Contact start (n.o.)
2 = Common
Safety loop
Connecting scheme of loop 3
7 = Contact photocell (n.c.)
2 = Common
Loop 2
Loop 3
36
Sistemi Elettronici
di Apertura Porte e Cancelli
International registered trademark n. 804888
®
REV 07 - 05/2009
C1 = CONTACT OPEN
C2 = CONTACT CLOSED
10 = 24 V
2 = 0 V
