SEA SWING 2 - Components Decription; International Registered Trademark N

SWING 2
LEDP = Programming
LED1 = Stop
LED2 = Pedestrian Start
LED3 = Start
LED4 = Photocell 2
LED5 = Photocell 1
LED6 = Encoder 2
LED7 = Encoder 1
LED8 = TXphotocell
LED9 = Electric lock
F1 = Power supply and motor 6.3AT fuse
F2 = Accessories Fuse 2A
CN1 = 24 V input/output connector
CN2 = Motors and power supply connector

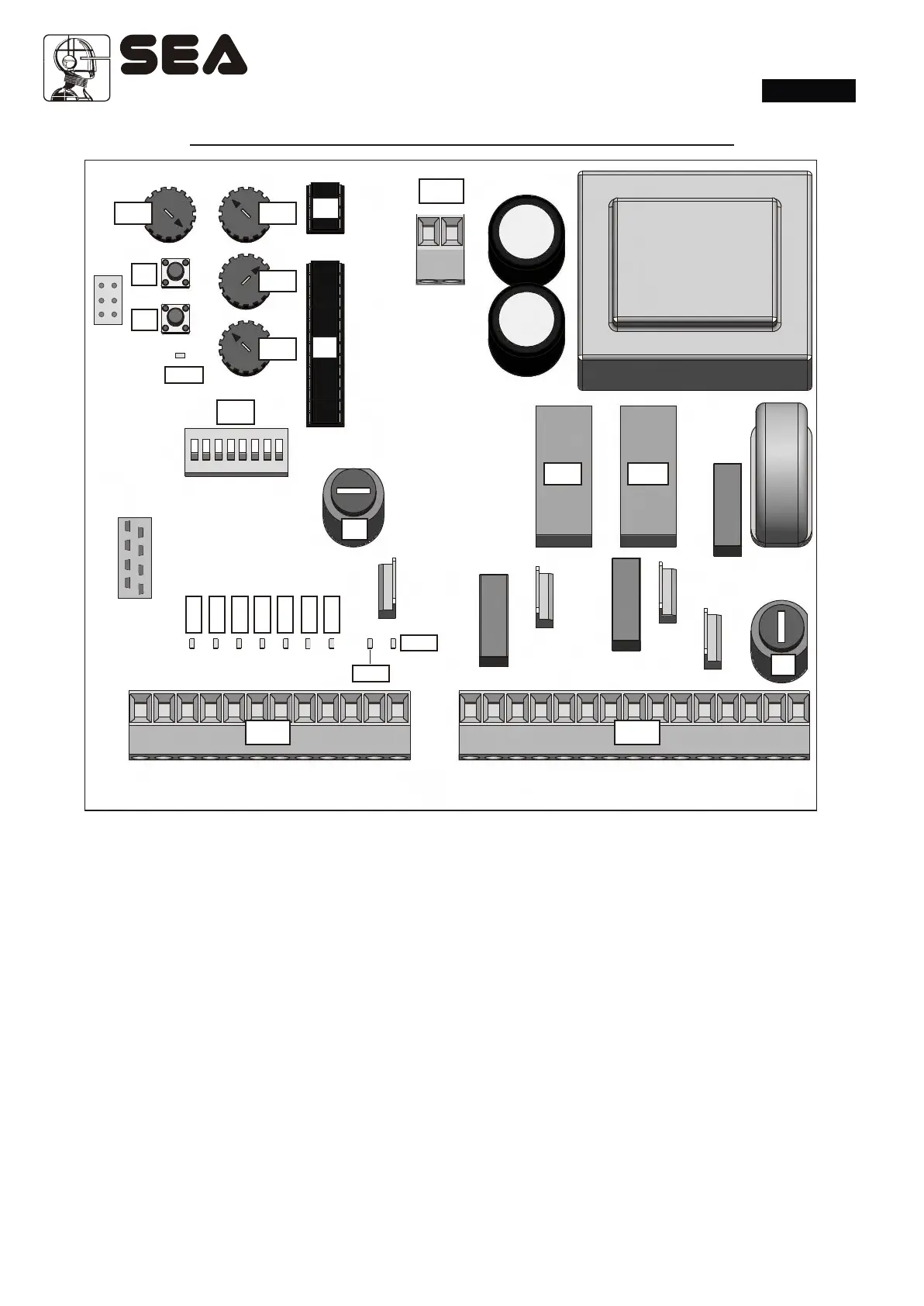

COMPONENTS DESCRIPTION
22
English
Sistemi Elettronici
di Apertura Porte e Cancelli
International registered trademark n. 804888
®
REV 07 - 05/2009
CN1 CN2
RL1
RL2
F1
F2
P1
P2
Rv1
Rv2
Rv3
U1
U2
DIP
LED5
LED8
LED9
LEDP
LED2 LED3 LED4
Rv4
LED1
LED6 LED7
CMR
CNP
CN3
CN3= Connector 24 V~ Photosync
Rv1 = Motor power adjustment
Rv2 = Time of slowdown adjustment and leaf delay
management
Rv3 = Pause time adjustment
Rv4 = Encoder sensitivity and working times
adjustment
P1 = Working times learning push-button
P2 = Radio transmitters learning push-button
DIP = Function Dip-switch setting
RL1 = Motor power supply relay
RL2 = Motor direction relay
CMR = Radio Receiver connector
CNP= Connector PALM
