DAT 72/DDS-4 Product Manual
Mounting an Internal Drive
You can install your Seagate internal DDS drive
horizontally or vertically (on its side). Figure 8
shows a 3.5-inch drive being installed in a typical
system using side mounting screws.
Mounting the Drive in a 3.5-Inch Drive Bay
Mount the drive in a 3.5-inch drive bay and
secure it using two M3.0 metric screws on each
side of the drive. Do not use nonmetric screws or
screws longer than 4 mm or you might damage
the drive. As shown in Figure 9, the 3.5-inch
drive has four screw holes on the bottom and
five on each side.

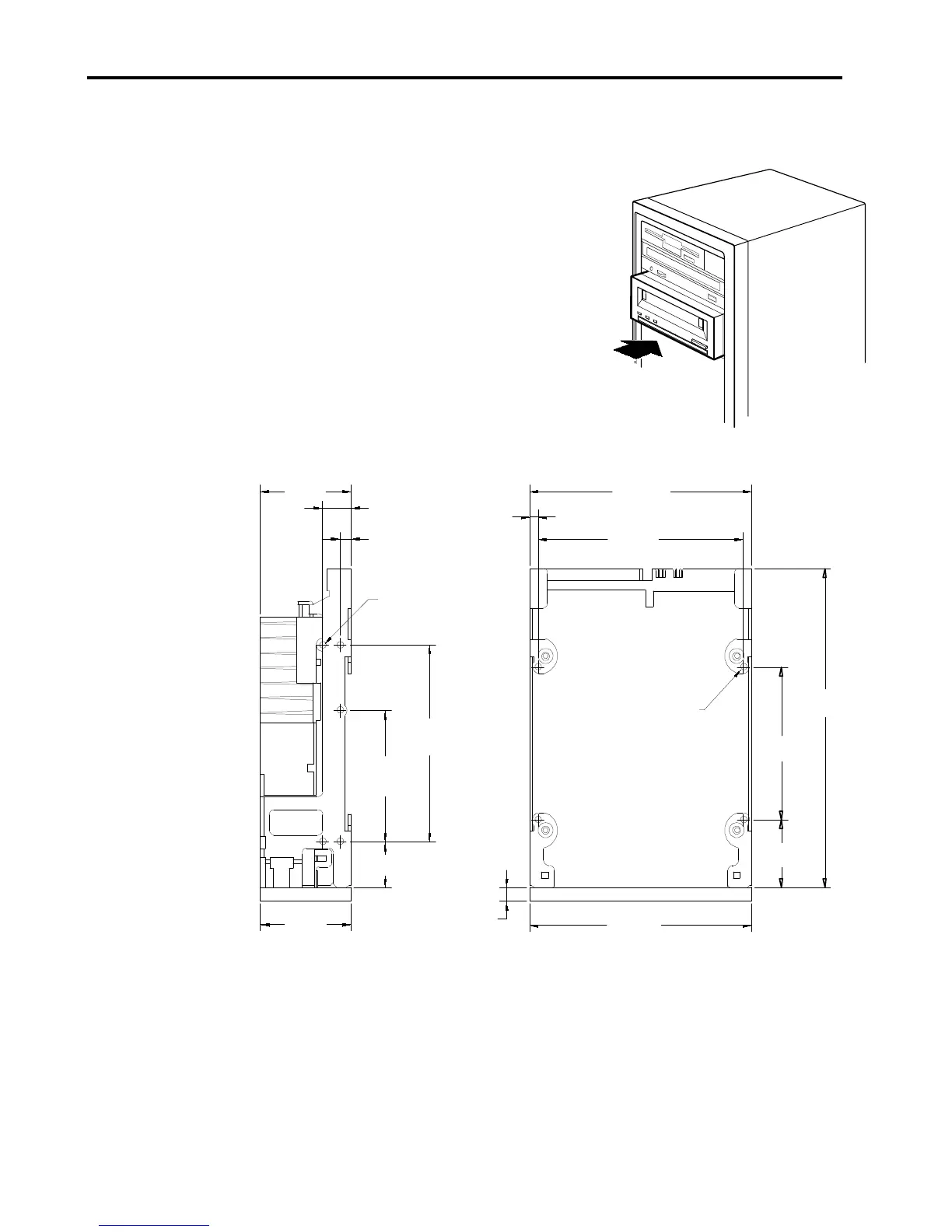

Figure 8. Mounting an Internal Drive
41.3 mm
(1.63 in)
101.6 mm
(4.00 in)
101.6 mm
(4.00 in)
94.0 mm
(3.70 in)
3.8 mm (0.15 in)
13.0 mm (0.51 in)
2 places
5.0 mm (0.196 in)
2 places
90.0 mm
(3.54 in)
2 places
70.0 mm
(2.75 in)
6.0 mm
(0.24 in)
31.0 mm
(1.22 in)
146.0 mm
(5.75 in)
41.2 mm
(1.62 in)
60.0 mm
(2.36 in)
2 places
21.0 mm (0.83 in)
2 places
Side View
Bottom View
M3.0 x 4 deep min.
(10 places)
M3.0 x 4 deep min.
(4 places)
Note: Tolerance for all dimensions is 0.25mm (0.01 in)
Figure 9. Mounting Holes for an Internal Drive in a 3.5-inch Configuration
(without mounting brackets)
