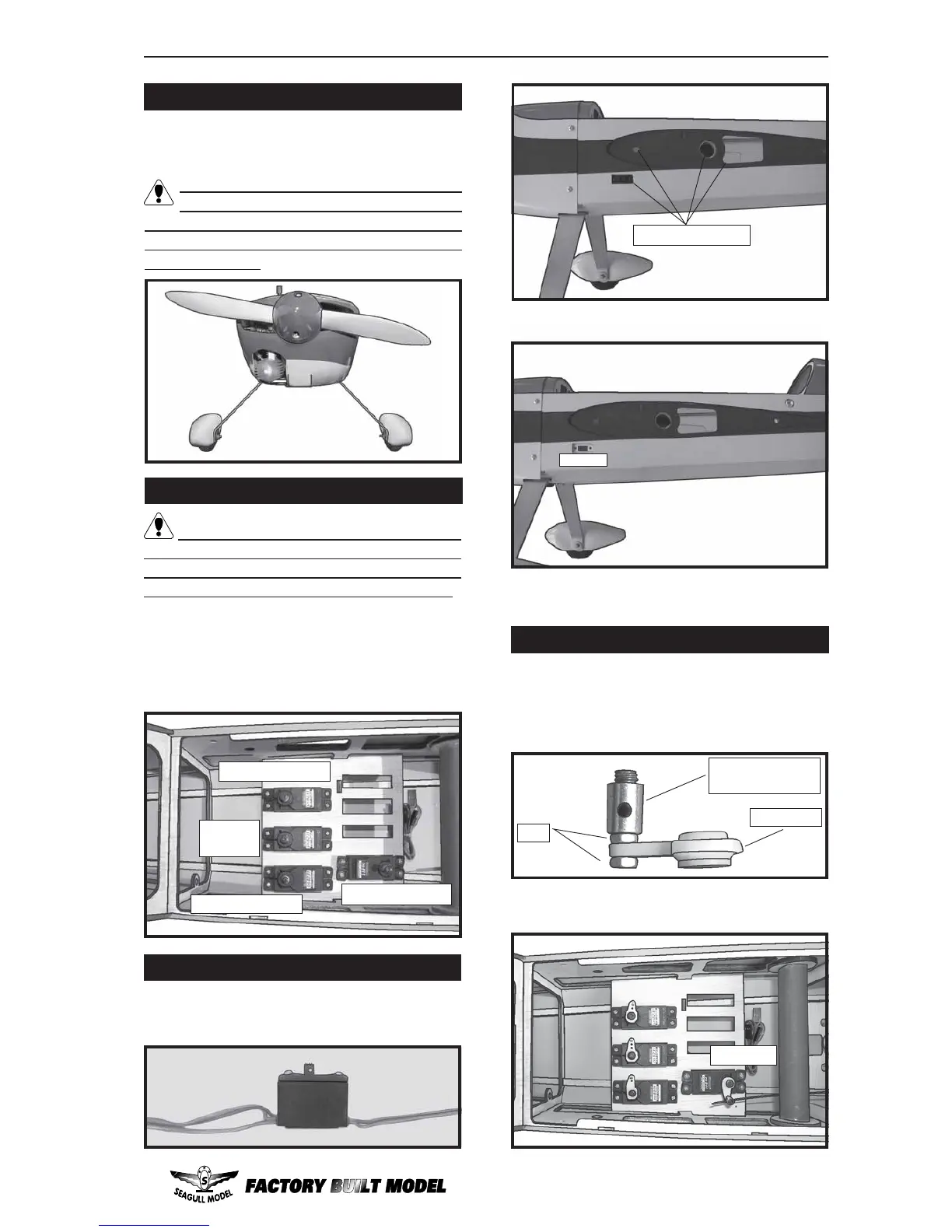

Install the spinner backplate, propeller and
spinner cone.
INSTALLING THE SPINNER.
INSTALLING THE FUSELAGE SERVO.
Throttle servo.
Rudder
servo.
Elevator servo.
Elevator servo.
INSTALLING THE SWITCH.
Install the switch into the precut hole in the
side, in the fuselage.
THROTTLE SERVO ARM INSTALLATION.
1) Install adjustable servo connector in
the servo arm as same as picture below:
2) Install the rubber grommets and brass
collets onto the throttle servo. Test fit the servo
into the aileron servo mount.
Remove covering.
3) Secure the servos with the screws pro-
vided with your radio system.
Because the size of servos differ, you
may need to adjust the size of the precut open-
ing in the mount. The notch in the sides of the
mount allow the servo lead to pass through.
The propeller should not touch any part
of the spinner cone. If it does, use a
sharp modeling knife and carefully trim away
the spinner cone where the propeller comes
in contact with it.
Throttle.
Adjustable Servo
connector.
Servo arm.
Nut.
Switch.
