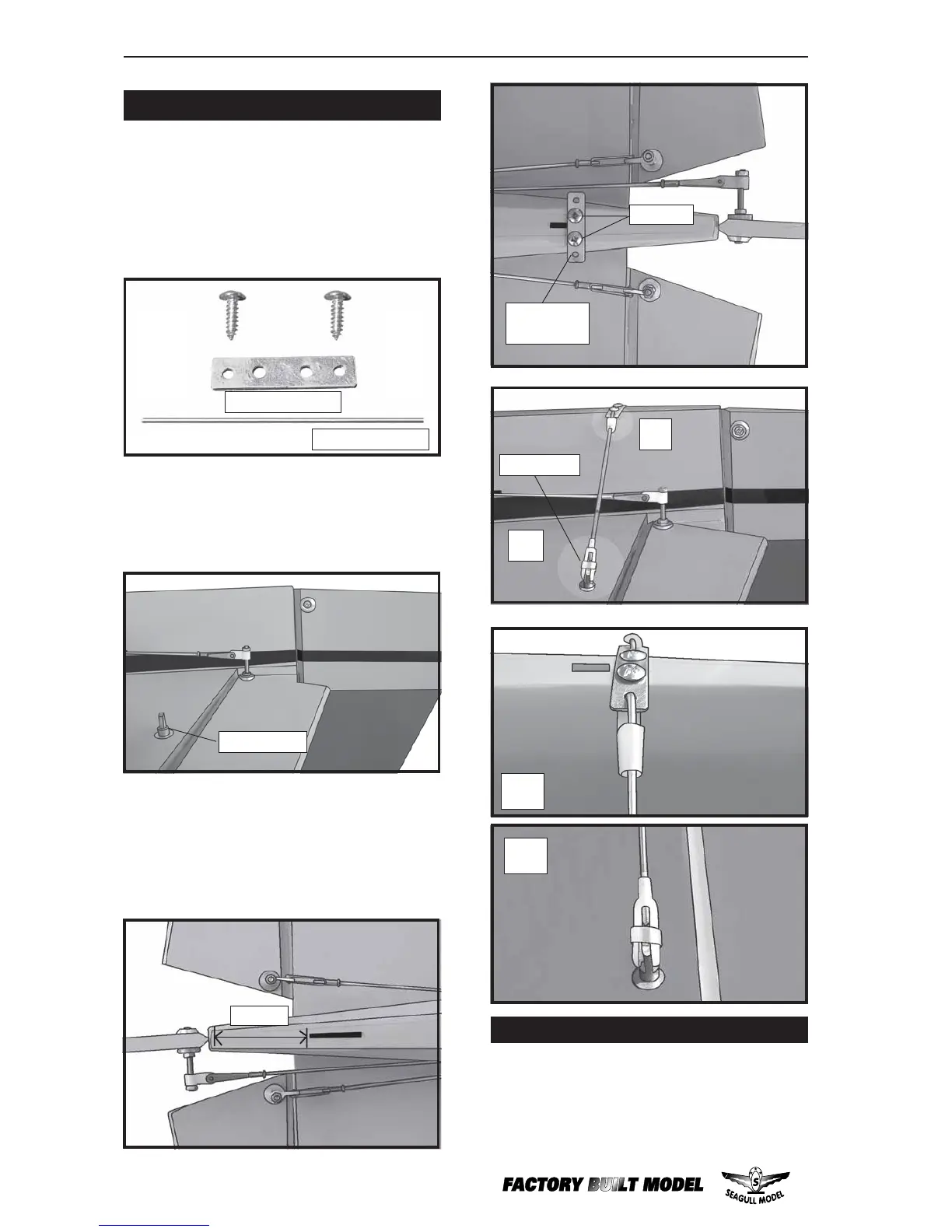

INSTALLING TAIL STRUT SYSTEM.
The tail strut system assembly follow
pictures below.
 1) Set the tail wheel assembly in place on
the plywood plate. The pivot point of the tail
wheel wire should be even with the rudder
hinge line and the tail wheel bracket should
be on the plywood plate.
MOUNTING THE TAIL WHEEL.
Alumium trap.
3x10cm(2pcs).
3x10mm.
Alumium
trap.
63mm.
Turnbuckle.
1
2
Plastic clip.
2
1
