www.seagullmodels.com
7

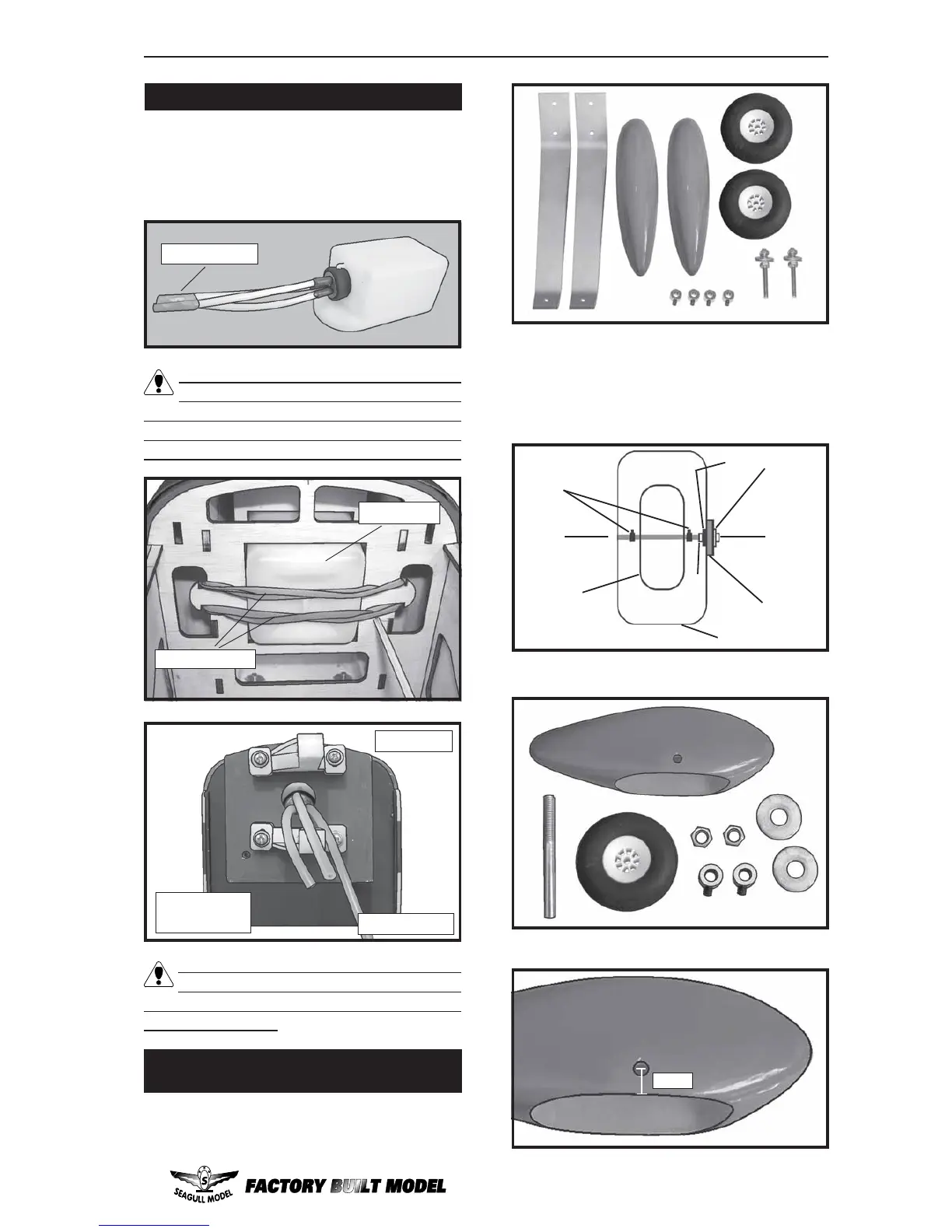

FUEL TANK INSTALLATION.
Rubber band.
Fuel tank.
Attach the silicone fuel and pressure pipes
to the tank. The lower pipe is the ‘feed’ and the
upper two the ‘pressure and fill’. The fill pipe is
the next pipe.
1) Assemble and mounting the wheel pants
as shown in the following pictures.
Plastic tape.
Fuel pick-up
tube.
Fuel fill tube.
Vent tube.
2) Follow diagram below for wheel pant
installation:
Wheel Collar.
Axle.
Wheel.
Nut.
Wheel Pant.
Landing Gear.
Nut.
(2) Washer.
Blow through one of the lines to ensure
the fuel lines have not become kinked in-
side the fuel tank compartment. Air should
flow through easily.
You should mark which tube is the vent
and which is the fuel pickup when you
attach fuel tubing to the tubes in the stopper.
Once the tank is installed inside the fuselage,
it may be difficult to determine which is which.
8mm.
WHEEL AND WHEEL PANTS INSTALLA-
TION.
