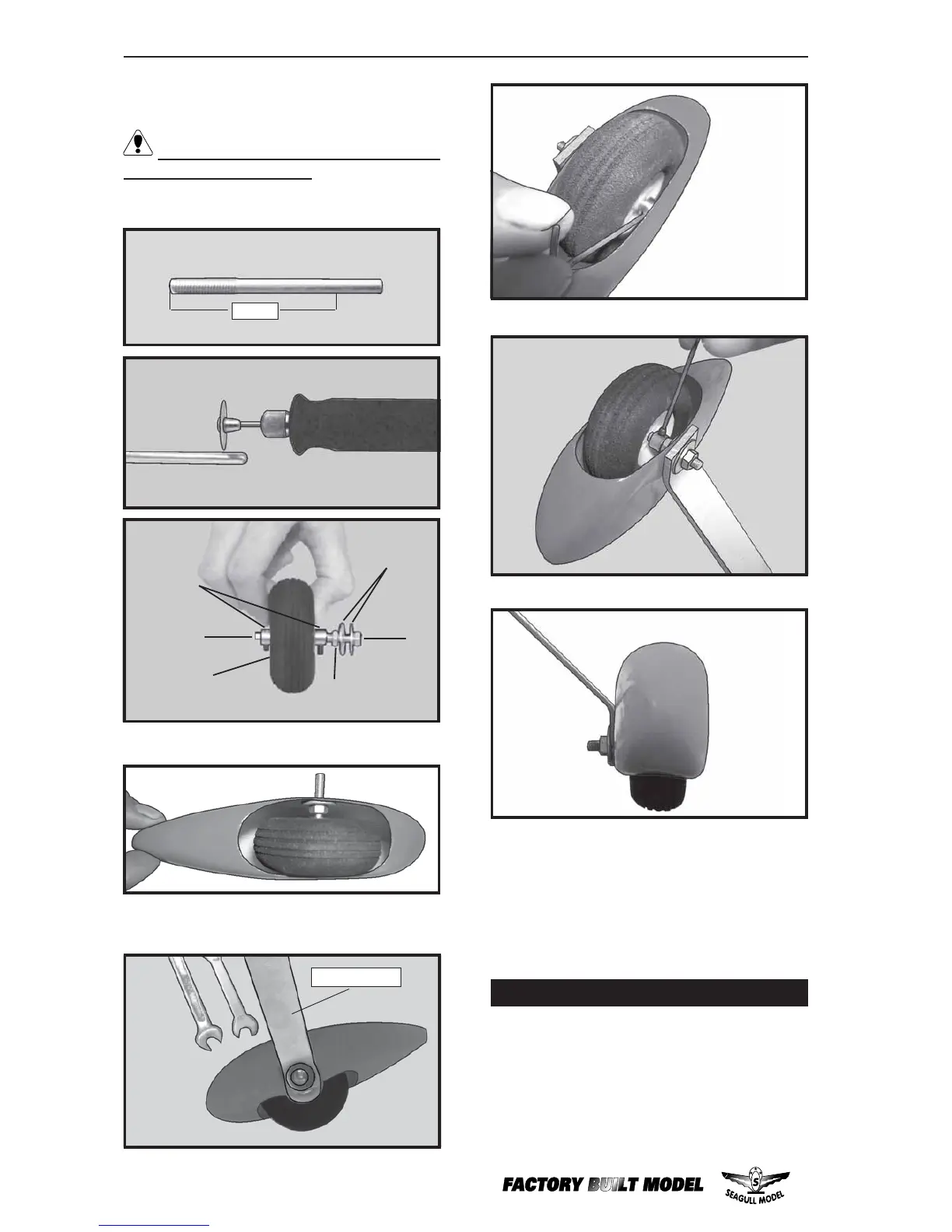

3) You have to trim each axle using a tool
cutting and cut-off wheel.
Caution when cutting the axles and
wear protective goggles.
(2) Wheel Collar.
Axle.
Wheel.
Nut.
Nut.
(2) Washer.
Landing gear.
1) The blind nuts for securing the landing
gear are already mounted inside the fuselage.
2) Using the hardware provided, mount
the main landing gear to the fuselage.
4) A drop of C/A glue on the wheel collar
screws will help keep them from coming lose
during operation.
Repeat the process for the other wheel.
46mm
INSTALLING THE MAIN LANDING GEAR.
