INSTALLATION
MANUAL
Product:
Document #:
Rev:
Page:
SEAKEEPER 9 / 7HD
90222
9
9 of 20
Section 1: MECHANICAL INSTALLATION

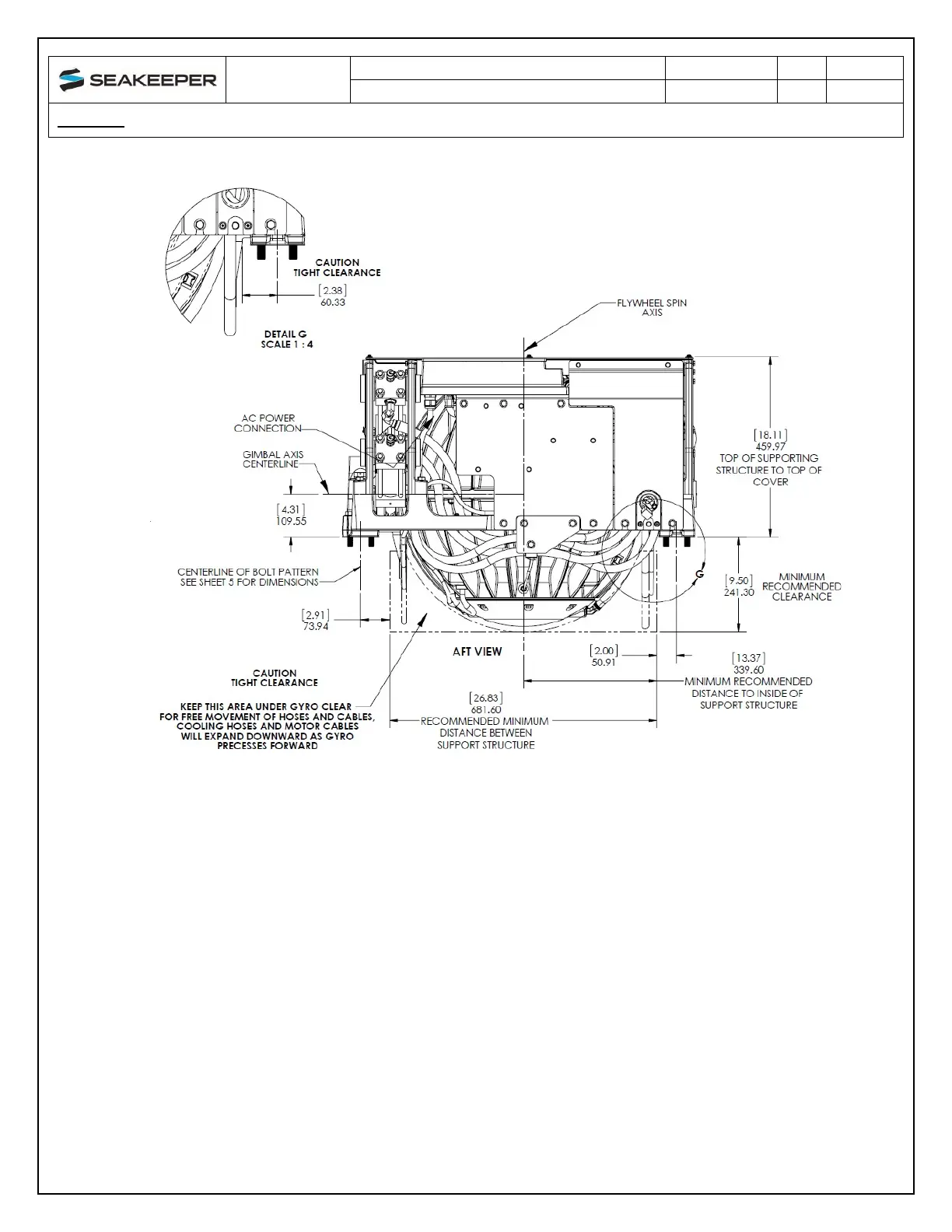

CAUTION: Tight clearances from cable guide bands to hull structure. See above figure
for dimensions and reference Seakeeper drawing NO. 90225 for complete Seakeeper
9/7HD envelope.
