Section 2: ELECTRICAL INSTALLATION
ii. The recommended wiring is shown in Figure 6. Refer to Figure 4 for Cable 5
wire connections.

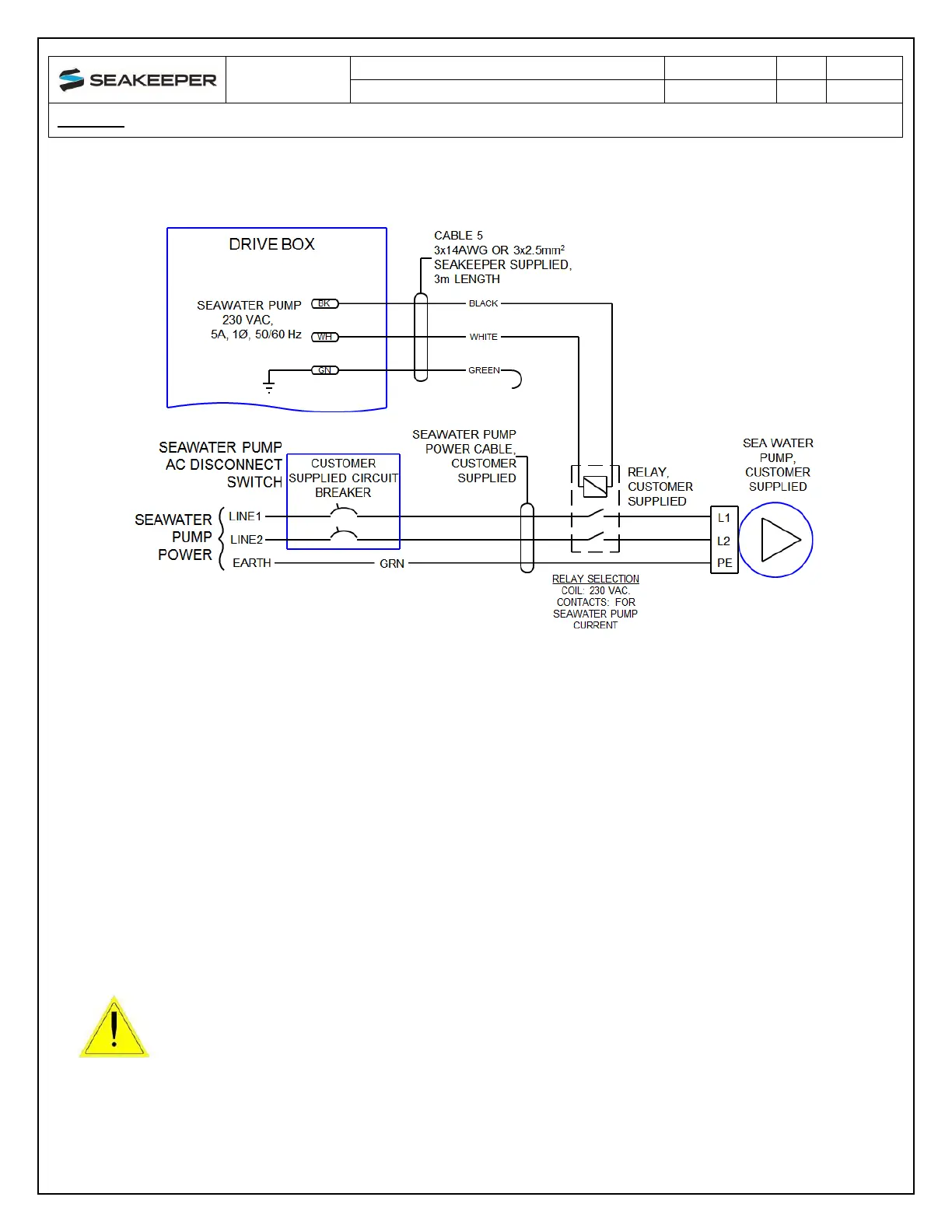

FIGURE 6 – RECOMMENDED WIRING FOR SEAWATER PUMPS NOT 230 VAC
d. If CABLE 5 is not used, bundle cable and secure to forward brace or other area
nearby which will not come in contact with moving parts during Seakeeper operation.
Do NOT cut CABLE 5 as it contains live voltage when the Seakeeper is in operation.
The Seakeeper ships with CABLE 5 permanently sealed at end of cable with
protective cap in the event it is not used. Do NOT remove CABLE 5 from Drive Box
as moisture will be free to enter box through open cable gland and corrode internal
electronic components.
Cable 5 contains live voltage when the Seakeeper is in operation. Do
NOT cut Cable 5. Do not remove Cable 5 from Drive Box.
