INSTALLATION
MANUAL
Section 2: ELECTRICAL INSTALLATION
2.5 Second Operator Station Connection
This section explains how to connect the 2
nd
Operator Station Kit.
Reference Drawings
90467 Helm Display 2
nd
Operator Station Kit
90257 Seakeeper 9/7HD Cable Block Diagram (includes detail of 2nd Operator Station)
1. DETERMINE LOCATION OF 2
ND
OPERATOR STATION
a. The desired location of the 2
nd
Operator Station must be determined with respect
to the 1
st
Operator Station and the vessel arrangement.
b. Typical locations include:
i. Flybridge
ii. Engine room
2. DETERMINE CABLING ARRANGEMENT

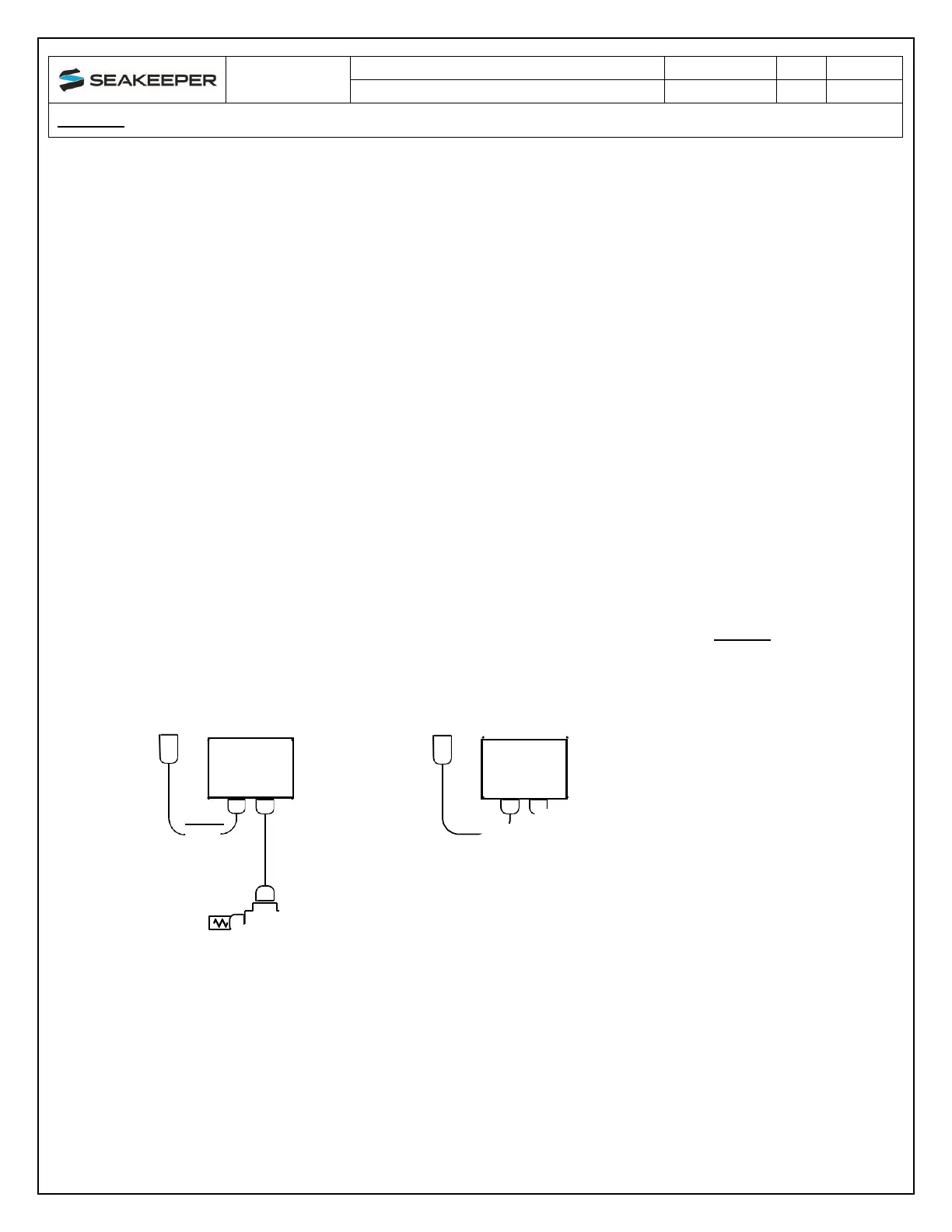

a. Figure 10 below shows the entire serial communications link for 2 Operator
Stations. The Terminator must be installed on the Tee Adapter farthest from the
Seakeeper.
U
S
B
USB EXT
CABLE
TOUCH
DISPLAY
U
S
B
USB EXT
CABLE
TOUCH
DISPLAY
F
ASSY, 2m
F
CAN
CABLE
ASSY,
0.6m
M
ASSY, 2m
TERMINATOR,
F
F
FEMALE
FIGURE 10 – CABLING FOR 2 OPERATOR STATIONS
b. The Operator Station nearest the Seakeeper should be connected to CABLE 3.
C
A
A
U N
X 1
F
