Seakeeper 7HD - Unpacking Crate; Lifting Arrangement

Lifting Eyes Spreader Bar
INSTALLATION
MANUAL
Product:
Document #:
Rev:
Page:
SEAKEEPER 9 / 7HD
90222
9
7 of 20
Section 1: MECHANICAL INSTALLATION
1.4 Unpacking Crate
Reference Drawings
90221 Seakeeper 9 Hardware Scope of Supply
90415 Seakeeper 7HD Hardware Scope of Supply
90276 Seakeeper 9/7HD Packing List
90275 Seakeeper 9/7HD Unpacking Instructions
1) Remove covers, electrical components, display, cables, and misc. items and set aside.
2) Remove packing materials that secure Seakeeper assembly inside the crate.
3) Attach spreader bar (Seakeeper P/N 11015) to the two lifting eyes located on the top of
the Seakeeper enclosure. Stay clear of any other parts on the Seakeeper. The Seakeeper
9 weighs 549 kg (1250 lbs.). See Figure 4 below.
4) Remove lag bolts from the Seakeeper foundation and prepare to lift the Seakeeper from
the crate.

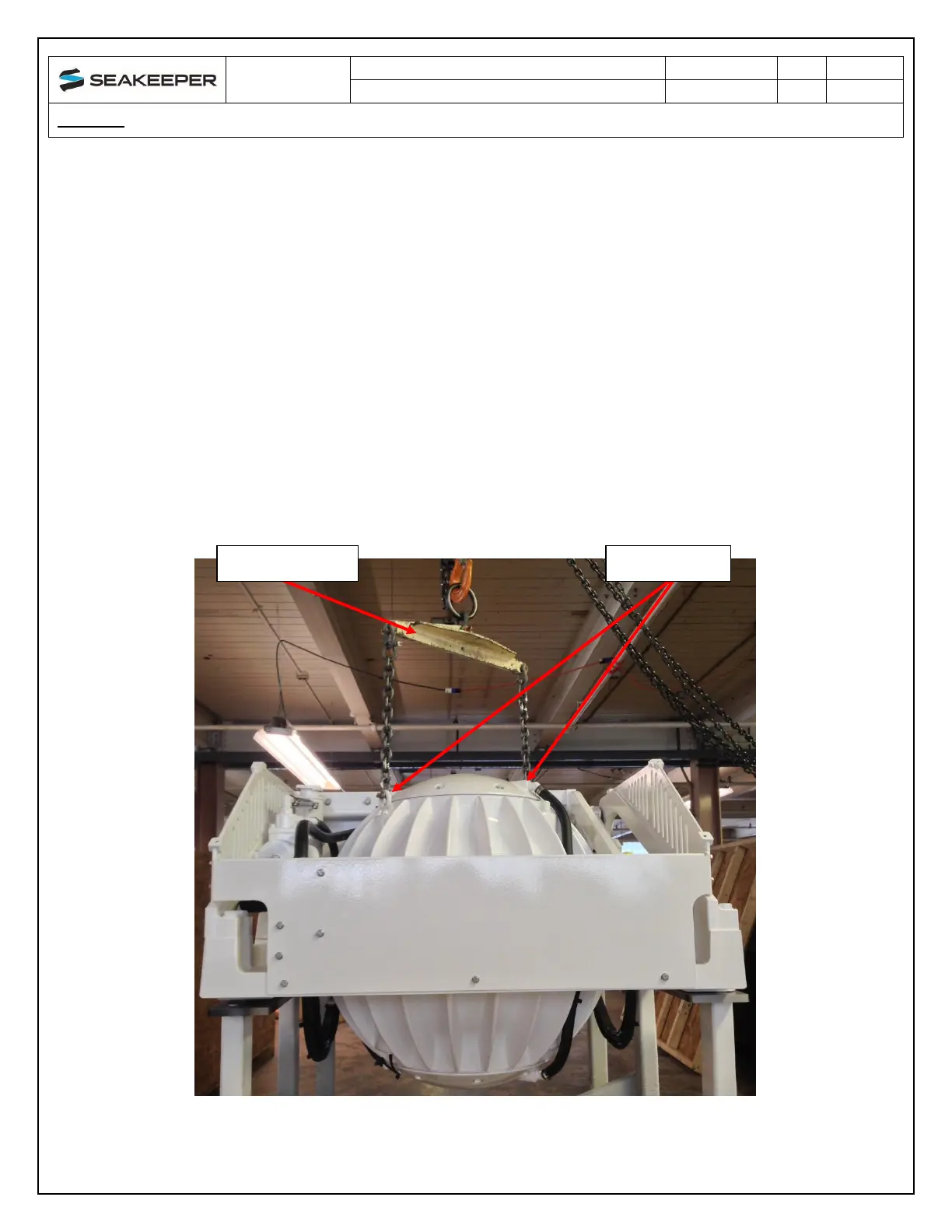

FIGURE 4 – LIFTING ARRANGEMENT
