SEAKEEPER 9 / 7HD
90222
9
7 of 11
Section 2: ELECTRICAL INSTALLATION
2.3 Electrical Equipment Ground Connections
1. SEAKEEPER TO VESSEL GROUND CONNECTION INSTRUCTIONS
a. Connect the Seakeeper foundation to vessel ground.
i. Install CABLE 6 (10AWG or 6.0 mm
2
, Customer supplied) from the M6
brass ground stud on the rear brace to a suitable vessel ground. Note:
ONLY USE THIS LOCATION FOR GROUNDING THE SEAKEEPER TO
THE VESSEL GROUND.

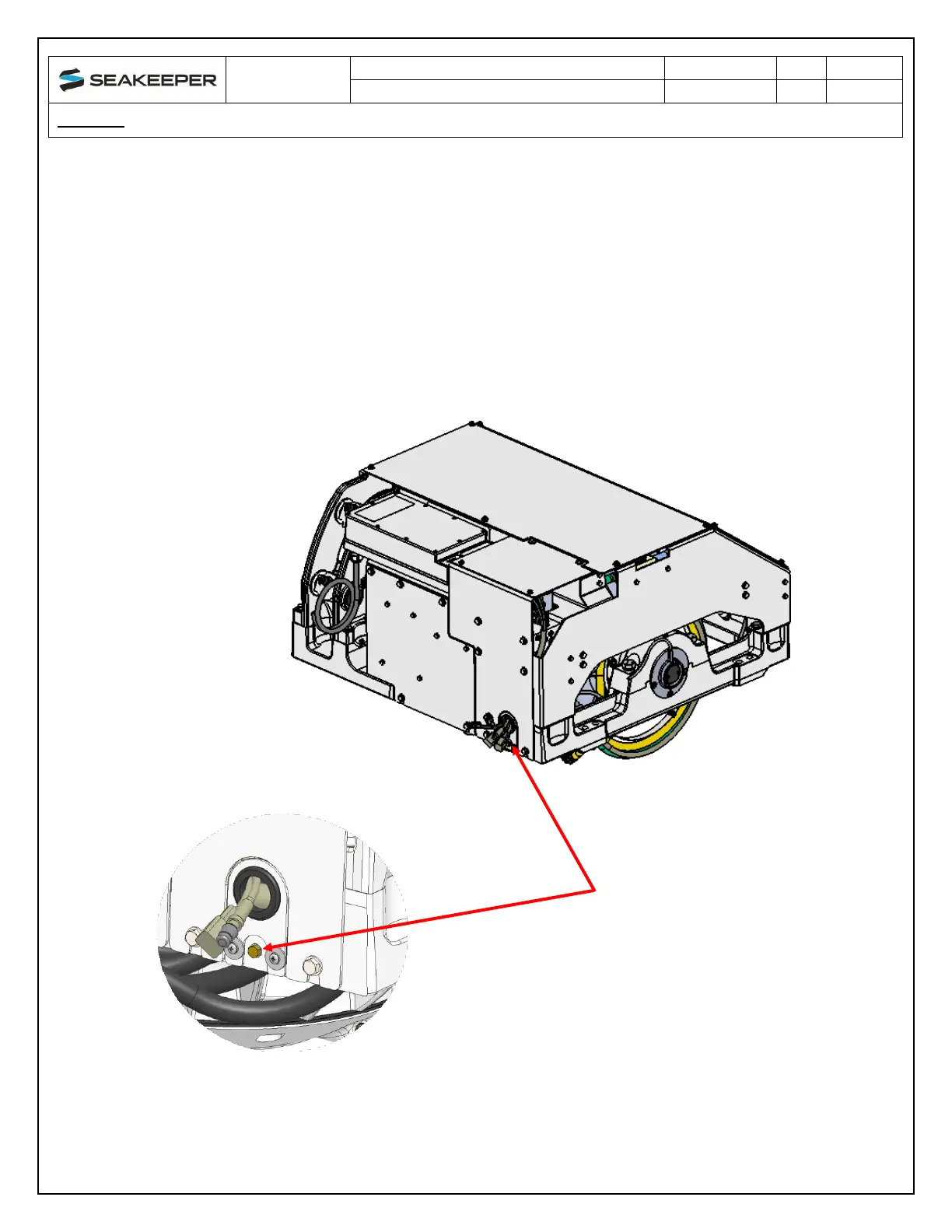

FIGURE 8 – GROUND STUD ON REAR BRACE
