Page 5
Original Language Version
VS8220 Issue: 2(SP) - 23/09/13
Additional Ports USB, video out (TV-out) port
Operating Temp. Main unit: 32°F to 113°F (0°C to 45°C);
Cable: 14°F to 176°F (-10°C to 80°C)
Storage Temp. -4°F to 158°F (-20°C to 70°C)
Operating Humidity 5% - 95% non-condensing (display unit)
Video Output RCA
TV Out NTSC, PAL
2.3. Accessories Included
Blow Moulded Case
Instruction Manual
Imager Head and Cable
Magnet, Hook and Mirror
USB Cable
Video-out Cable (TV-out Cable)

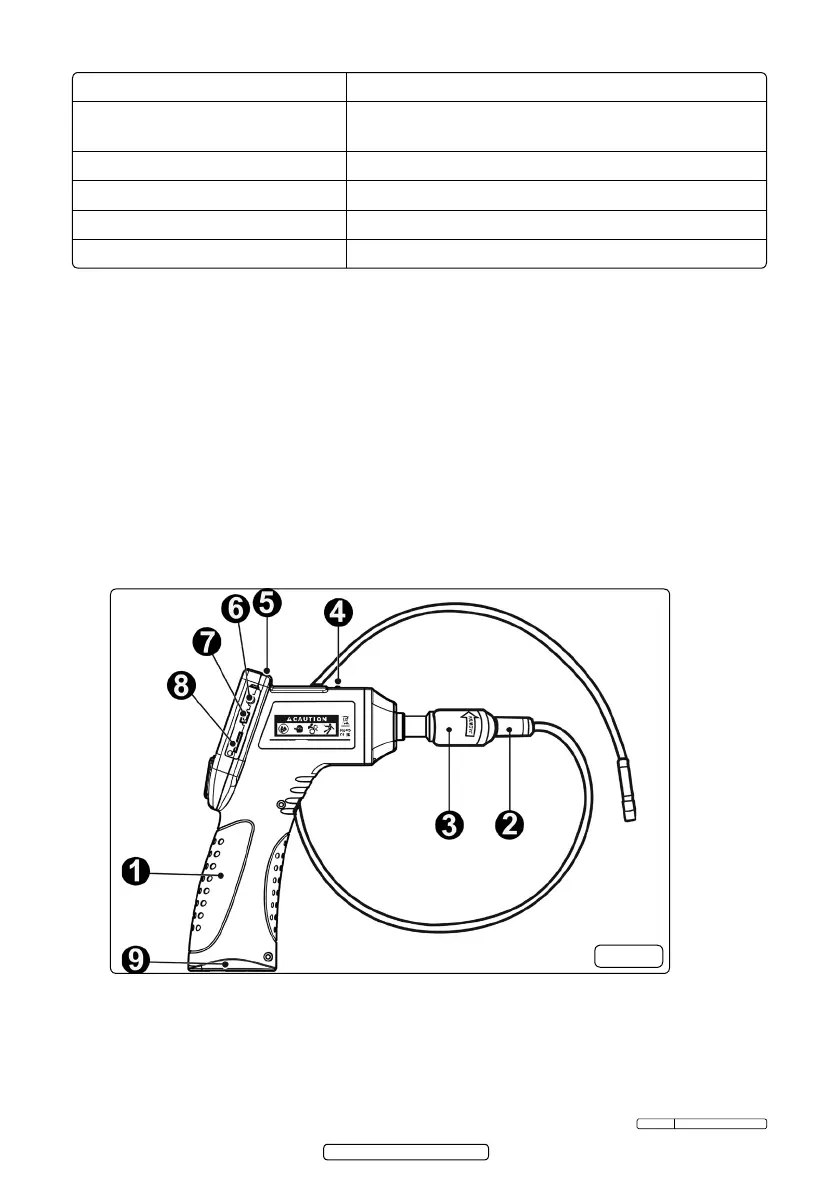

2.4. Tool Components and Ports
Note: Due to continual improvements, actual product may differ slightly
in appearance from the illustration in g.1.
1) Handheld Display Unit – Ergonomic tool with comfortable pistol grip design.
2) Imager Head and Cable – Connects to the tool to capture images and videos.
3) Cable Connector – Connects the handheld display unit to the imager head and
cable.
g.1
© Jack Sealey Limited 2012
