AG3000 INSTRUCTIONS

Seametrics • 253.872.0284 Page 16 seametrics.com

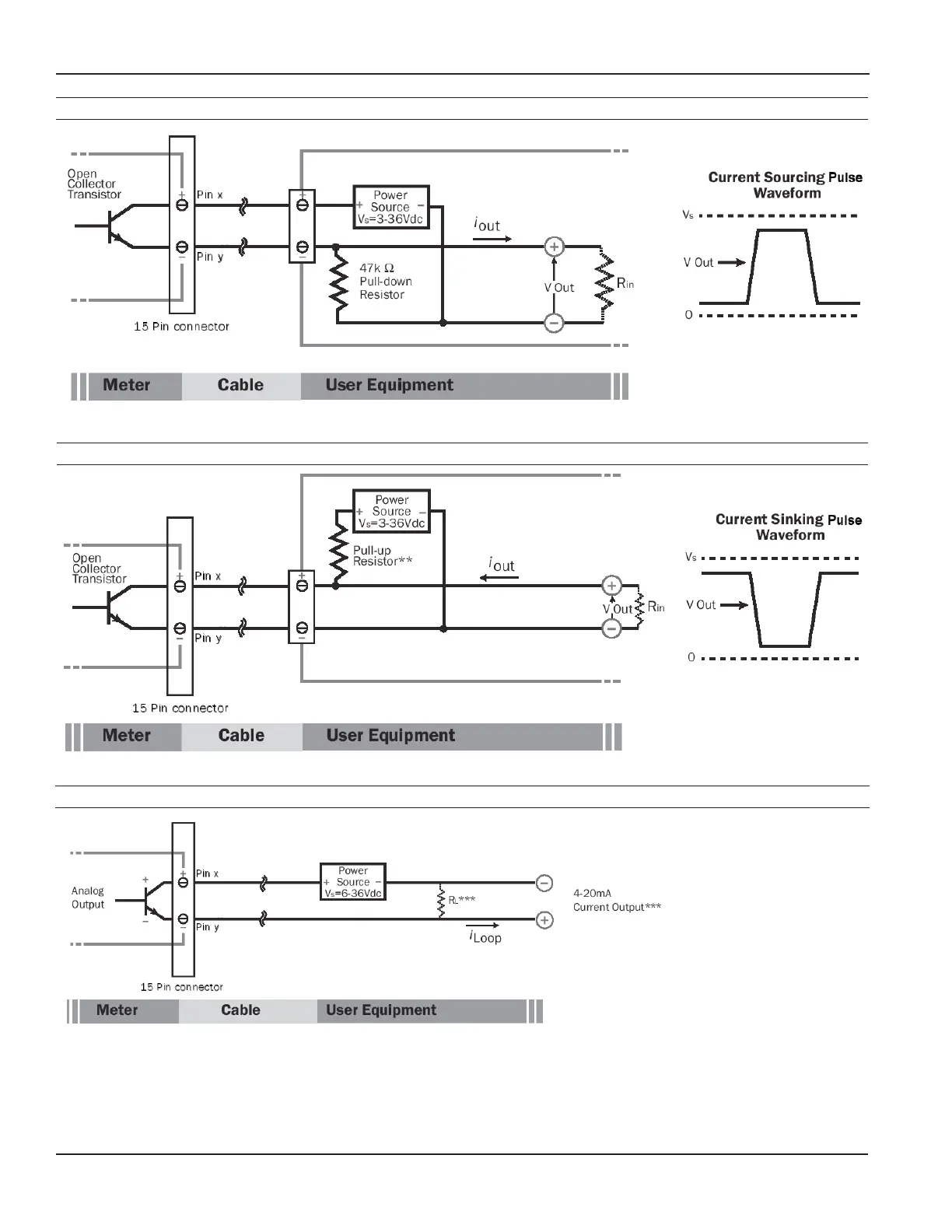

Pulse Output Application - Sourcing Mode (Recommended for Rin < 30kΩ)

Pulse Output Application - Sinking Mode (Recommended for Rin > 30kΩ)

Analog (4-20mA Current Loop) Output Application

**Minimumresistorvalueis(100xVs)ohms.Higherresistancesmaybeuseddependingonfrequencyandcablelength.

Longercablesandhighfrequenciesrequirelowerresistance.

*** ResistorRLconverts4-20mAcurrenttovoltageforvoltageinputonlydevices.

CONFIGURATION
