Seametrics AG3000 Series - Dimensions

AG3000 INSTRUCTIONS
Seametrics • 253.872.0284 Page 5 seametrics.com

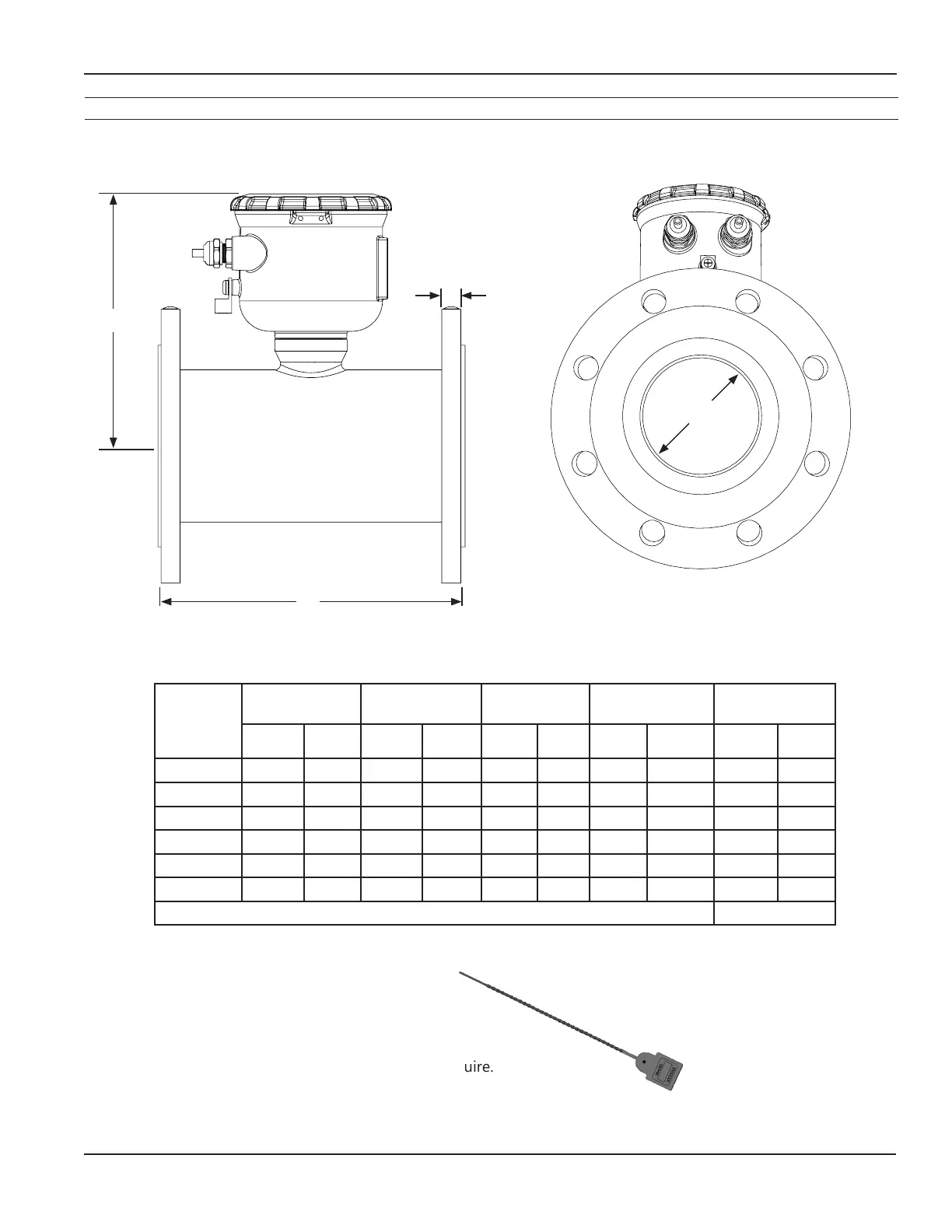

Dimensions
H
L
T
ID
GENERAL INFORMATION
Install security seal during
installation if regulations require.
AG3000
Meter
Size
L H T ID
Shipping
Weight
inch mm inch mm inch mm inch mm lbs
Kg
3” 12.25 311.15 7.08 179.8 .68 17.25 2.6 66.04 38 17
4” 10.24 260 8.3 211 .62 15.7 3.12 79 33 15
6” 12.27 312 9.1 231 .69 17.5 5.05 128 49 22
8” 14.24 362 10.1 257 .69 17.5 6.44 164 70 32
10” 18.18 462 11.2 284 .69 17.5 8.61 219 130 59
12” 19.68 500 12.2 310 .81 20.6 10.55 268 170 77
Flanges Standard ANSI 150 lb. drilling Cable 1 lb.
