Fitting the tail light unit
The tail light unit is easy to fit.

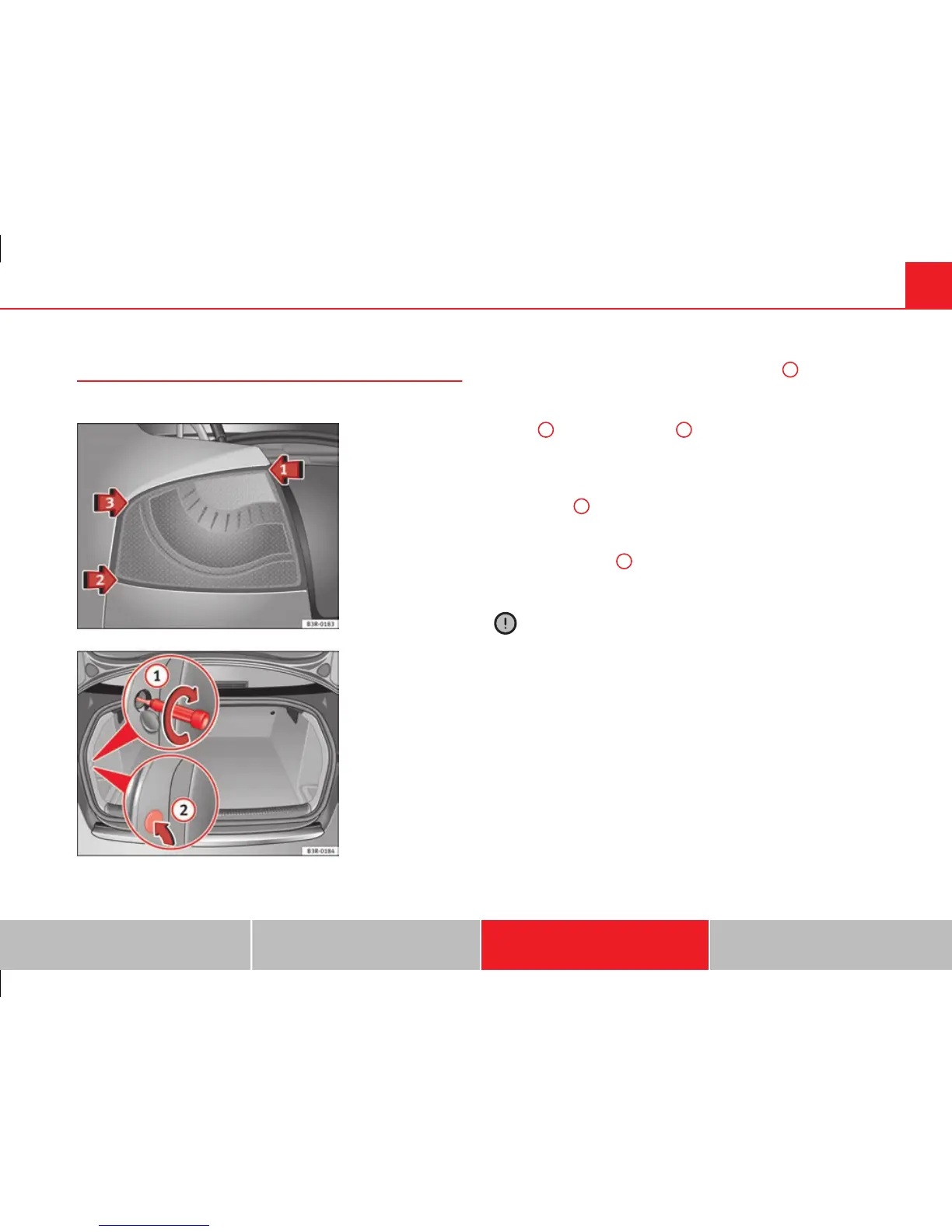

Fig. 211 Fitting the tail
light unit
Fig. 212 Luggage com-
partment: Location of the
bolt securing the tail
light unit
– First place the tail light unit in ⇒ fig. 211 arrow
1
in the hous-
ing.
– Gently press the tail light unit against the housing, first in posi-
tion
2
and then in position
3
, until that the clips engage firm-
ly in the rubber mountings.
– Apply gentle pressure to the upper part of the tail light unit and
secure using the screwdriver, from the luggage compartment
⇒ fig. 212
1
.
– Try to move the tail light sideways to ensure it is correctly fitted.
– Replace the cover
2
in the interior trim.
– Make sure that all bulbs for the tail lights are working.
CAUTION
Take care when fitting the tail light unit to make sure there is no damage to
the paintwork or any of its components.
