Seats and storage compartments148
Luggage compartment liner*
You can use the liner to protect the inside of the luggage
compartment when carrying wet or dirty items.
Lifting the floor panel
–Open the tailgate.
– Take hold of handle ⇒ fig. 124, lift the floor panel and line
up the bottom corners of the floor panel with the recesses .
– Put the items you are transporting onto the luggage compart-
ment liner
Folding the floor panel
–Open the tailgate.
– Take hold of the handle ⇒ fig. 124 and fold out the floor
panel as far as the rear backrest.
Removing the floor panel
–Open the tailgate.
– Take hold of the handle ⇒ fig. 124 and fold out the floor
panel as far as the rear backrest.
– Pull the complete floor panel towards the rear of the vehicle so it
comes out of the retainers ⇒ fig. 125.
Small items can also be stored under floor panel ⇒ fig. 124.
The space available for carrying items in the luggage compartment liner can
be increased by folding out the floor panel or removing it completely.
Caution
When the floor panel is folded out to the upright position you should not
transport items weighing more than 7.5 kg, or items which exceed 2/3 of the
height of the upright floor panel.

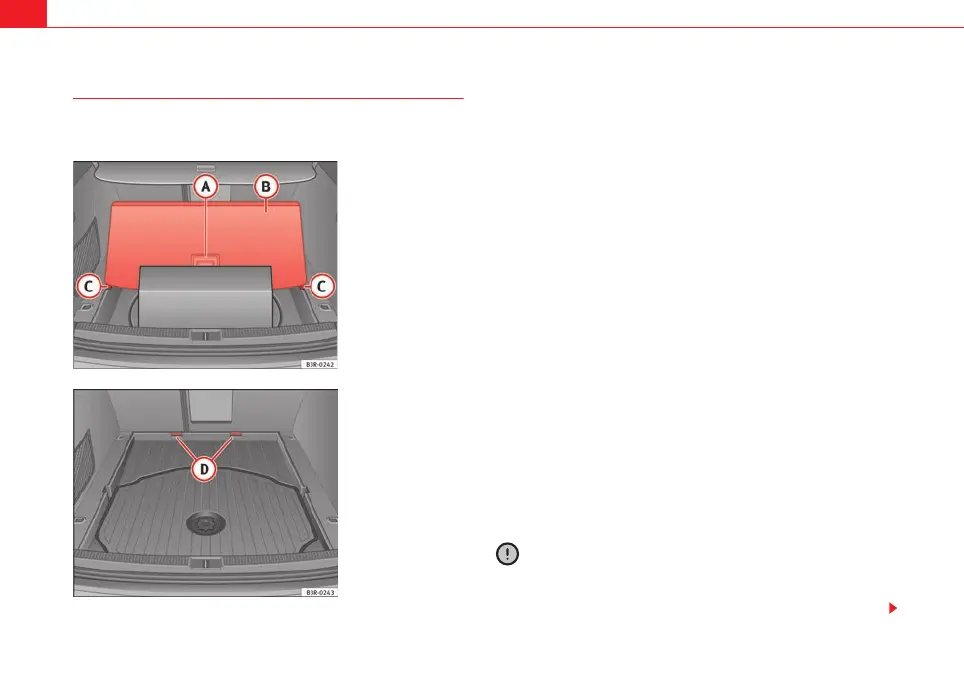

Fig. 124 Floor panel
raised
Fig. 125 Floor panel
removed for increased
luggage space
A
B
C
A
A
D
A
B
