Model 644 25
GB

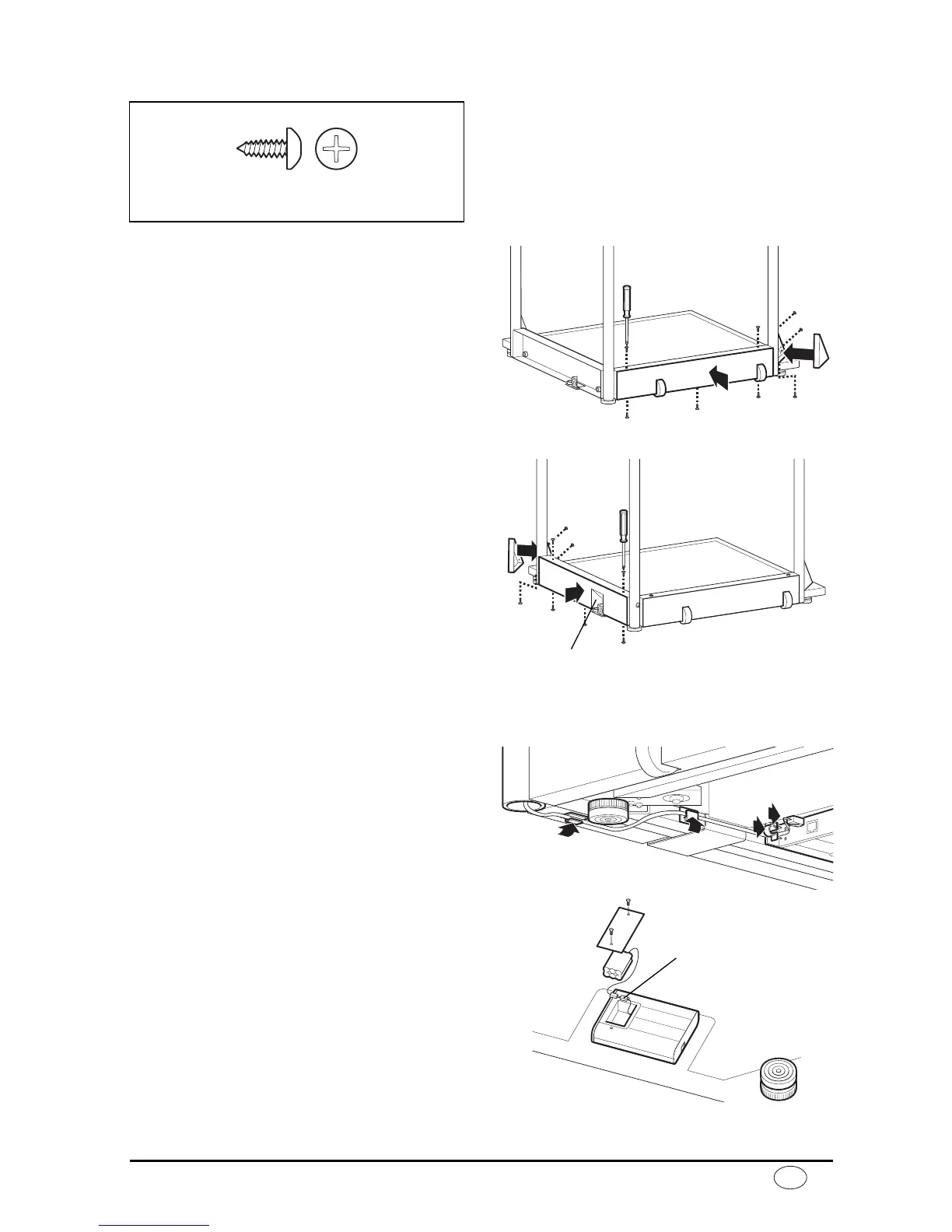

Step 5: Assemble the side section covers
You will need the following bolts:
– Place the scale on its side, with the rear
side section facing upwards.
– Position the cover with the wheels over
the side section, and attach this secure-
ly using 5 Phillips bolts:
3 x from below, and
2 x from above.
– Position the cover on the reinforcing tri-
angle, and bolt this firmly in place using
two bolts.
– Now turn the scale over so that the oth-
er side faces upwards.
– Position the cover with the recess
pointing inwards over the side section,
and attach this securely using 5 Phillips
bolts:
3 x from below, and
2 x from above.
– Position the cover on the reinforcing tri-
angle, and bolt this firmly in place using
3 bolts.
Step 6: Assemble the electrical connections
– Connect the cable which comes out of
the central column to the electronic box
socket. In order to prevent measure-
ment errors, lay the cable as shown in
the diagram.
– Unscrew the bolts which secure the lid of
the battery compartment, and remove.
– Connect the plug with the rechargeable
battery block located in the battery
compartment.
– Replace the lid of the battery compart-
ment, and bolt this firmly in place.
– Turn the scale to the upright position.
16 x Phillips bolts, ø 3,5 mm
Recess
Plug
