Assembling the scale

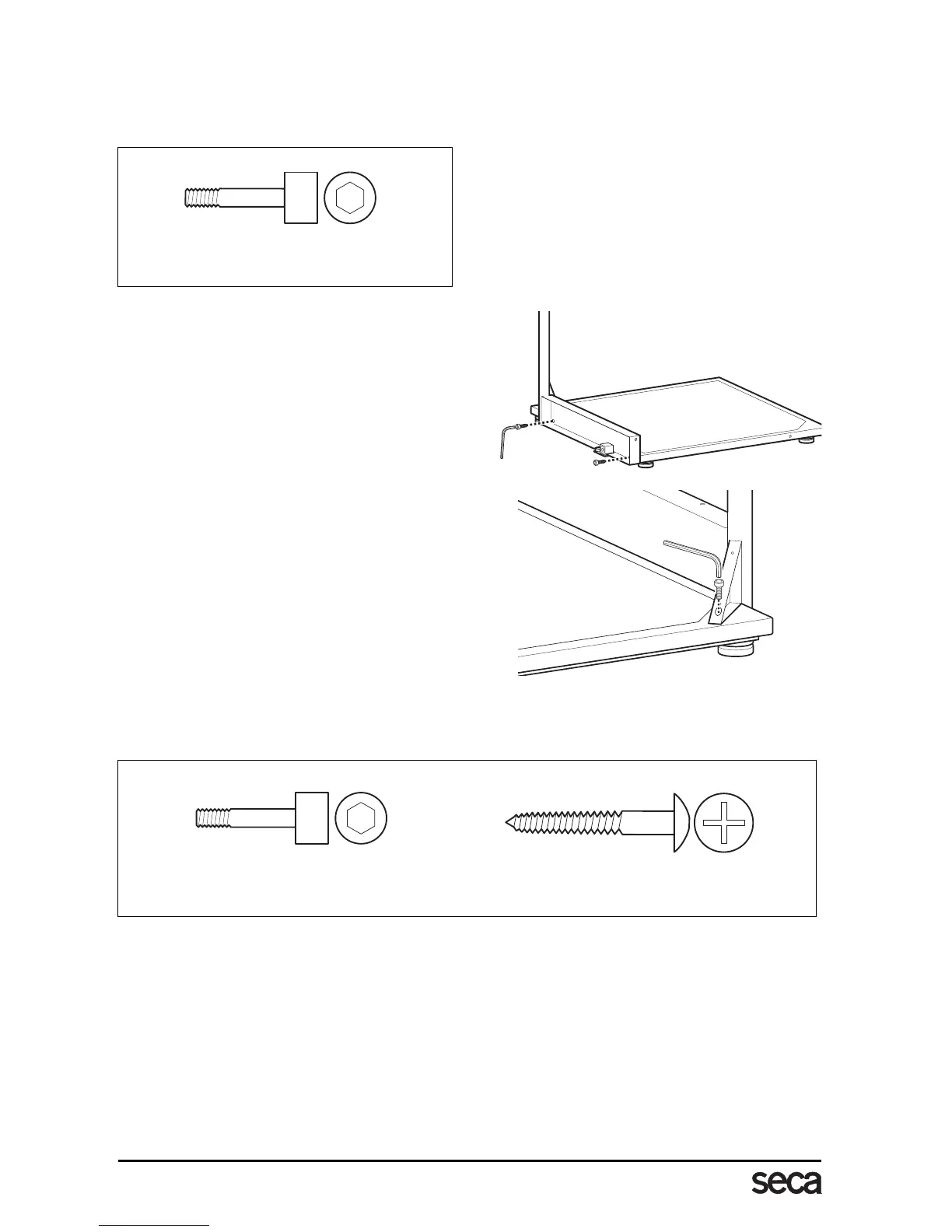

Step 1: Assemble the first side section
You will need the following bolts:
– Position the side section on the right-
hand side of the scale platform.
– Bolt the side section to the scale plat-
form using two Allan bolts.
– Use an Allan bolt to attach the triangular
reinforcement to the scale platform.
Step 2: Assemble the side section with the wheel casing
You will need the following bolts:
– Position the side section with the wheel
casing on the rear side of the scale plat-
form.
– Bolt the side section to the scale plat-
form using two Allan bolts.
3 x Allan bolts M5
3 x Allan bolts M5
1 x Sheet metal bolt, ø 6,3 mm
