3. OVERVIEW

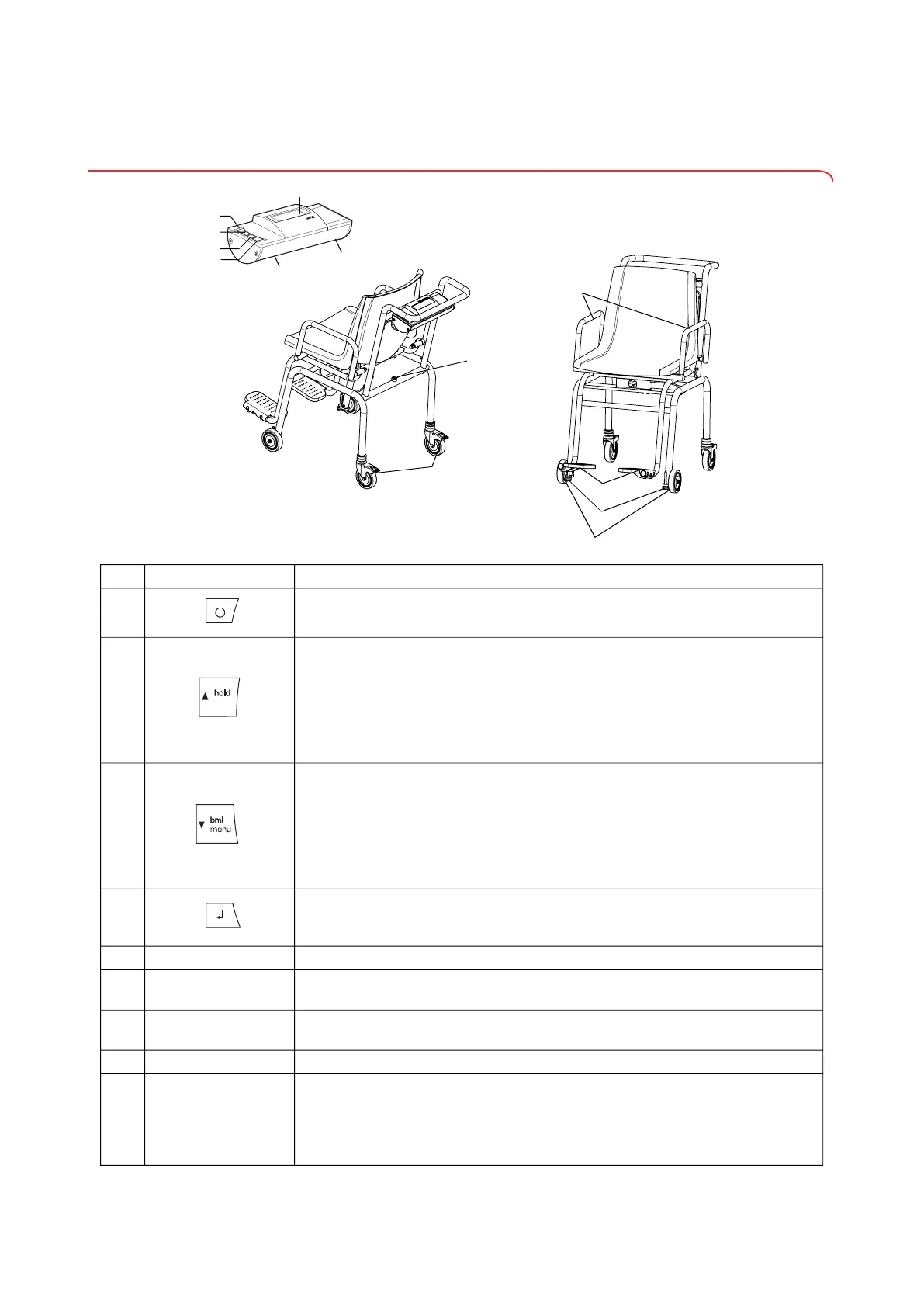

3.1 View of device
5
6
1
2
4
3
7
8
9
10
11
12
13
Pos. Device component Function
1
ON/OFF key
To switch the device off and on
2
Arrow key
• While weighing:
- Short press: Activate hold function
- Long press: Activate tare function
• In the menu:
- Select submenu, select menu element
- Increase value
3
Arrow key
• During weighing:
- Press briefly: Activate BMI function
- Hold down: Call up menu
• In the menu:
- Select submenu, select menu item
- Reduce value
4
Enter key
- Confirm selected menu element
- Save set value
5
Display Display element for measuring results and for device configuration
6
Battery
compartment
Accommodation for the rechargeable battery block
7
Power supply unit
connection
Serves to connect the included power supply unit
8
Spirit level Indicates whether device is horizontal
9
Transport rollers
• Steerable
• Height adjustable
• With wheel brakes
• The scale can be moved on these rollers.
• The scale can be aligned precisely with these rollers.
