SECOP P Series User Manual

15
Secop uses telescope pipes or similar elements
inside the suction tube on some T- and N-Series
compressors, on all D- and X-Series compressors
and on the new SCE compressors to optimize energy
consumption.
You can identify the compressors by the thicker suc-
tion tube area near the compressor shell.
These telescope pipes are made out of plastic and
are sensitive to high heat exposure
Make sure when
brazing a tube into
the suction connec-
tor that the section
with the telescope
never exceeds 150 °C
/ 302 °F.
The new range of
SCE compressors
features a telescope
inside the compres-
sor on the suction
tube to optimize en-
ergy consumption.
These telescopes are
made of rubber and
are sensitive to high
heat exposure.
Make sure when brazing a tube into the suction con-
nector that the area with the telescope never ex-
ceeds 350 °C / 662 °F and do not braze longer than
30 seconds.
The DELTA compressor
uses a special discharge
connection element which
is directly connected to
the discharge tube to opti-
mize power consumption.
This element is made out
of plastic and are sensitive
to high heat exposure.
Make sure when brazing a
tube into the discharge connector that the area with
the telescope never exceeds 240 °C / 464 °F and do
not braze longer than 10 seconds.
Use a fork burner and/or a damp cloth, if necessary.
A protective plate can also serve to protect the tele-
scope from direct heat from a flame.
Telescope pipes or similar elements make it no
longer possible to select the process connector
as the suction connector or vice versa. You must
choose the correct connector for the suction line.
Please refer to the corresponding data sheets.

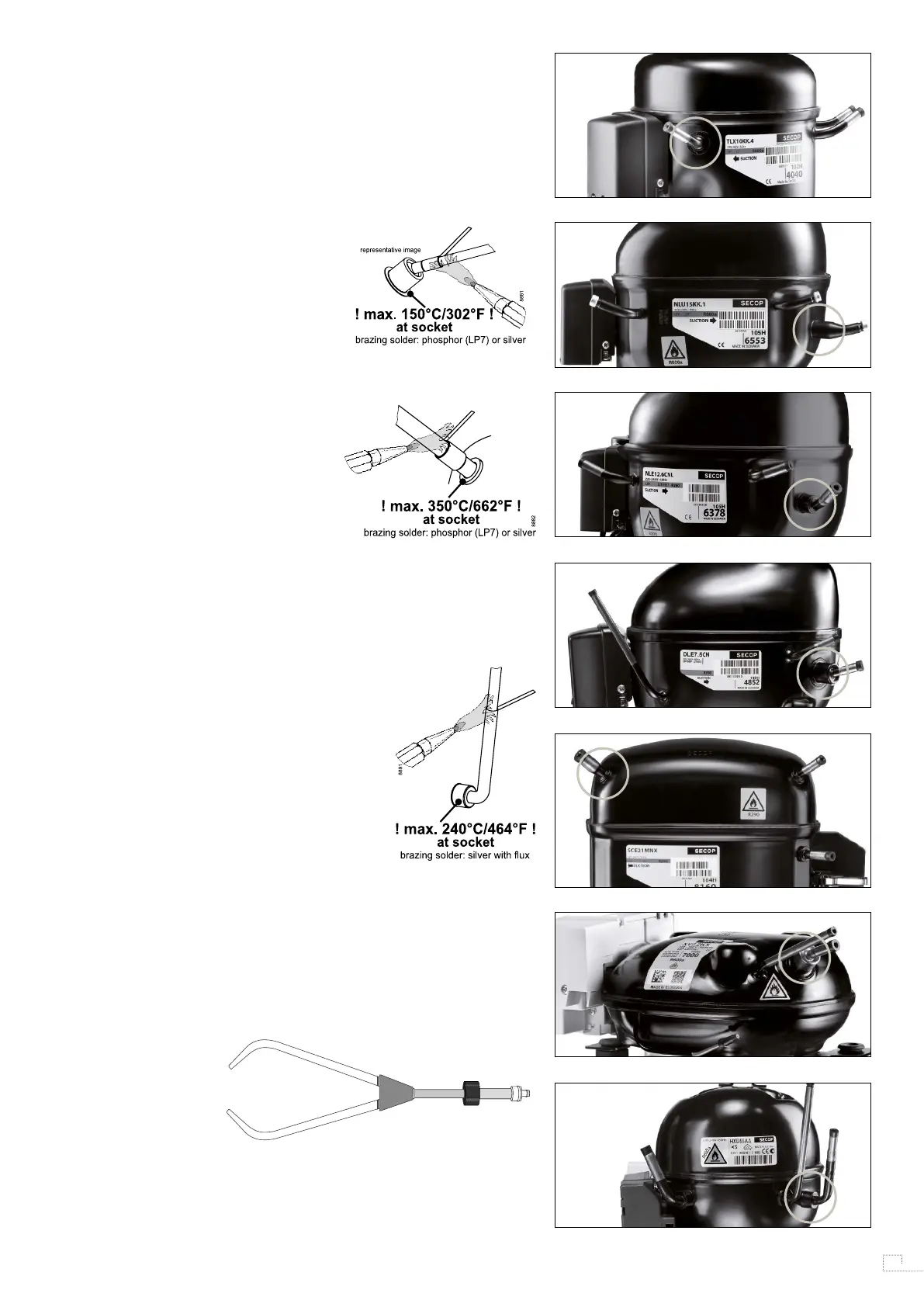

4.7
Brazing on suction
connectors
(compressors with
direct suction intake)
4.7.1
Temperature at socket
TLX / NLE / NLU / NLV
DLE / DLX / DLV / XV
4.7.2
Temperature at socket
SCE
4.7.3
Brazing on discharge
connector.
Temperature at socket
DELTA
4.7.4.
Heat protection
TLX compressor with copper connectors
NLU compressor copper-plated steel connectors
NLE compressor with copper connectors (NLV similar)
DLE compressor with copper connectors (DLX, DLV similar)
XV compressor with copper connectors
DELTA compressor with copper (suction, process) and
copper-plated steel (discharge) connectors
SCE compressor with copper connectors
