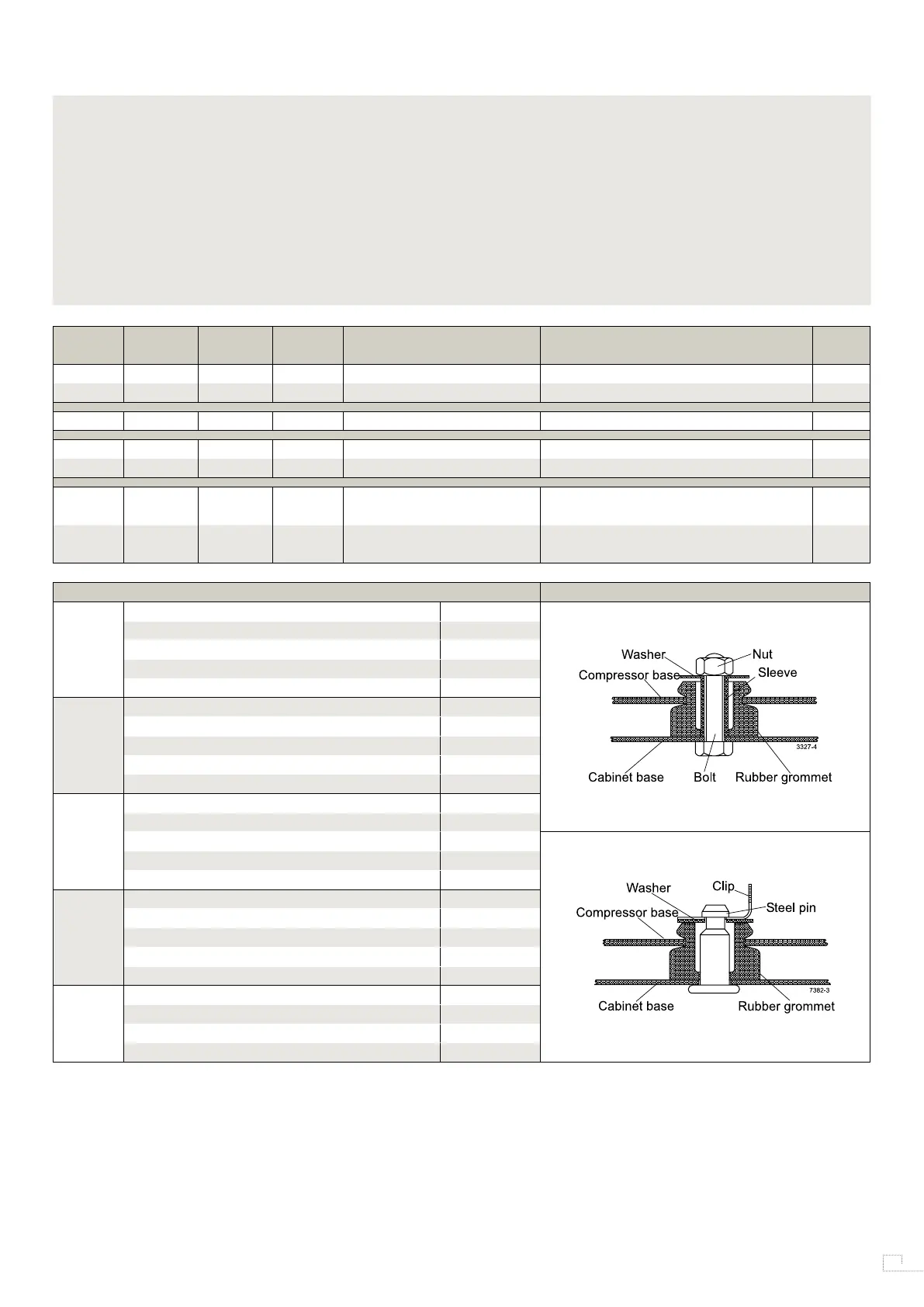

MOUNTING ACCESSORIES
Mounting Code Bolt / pin Comp. Type of packaging Compressor series Parts
number dimension base hole list
Bolt joint 118-1917
M6 metric 16 mm Single pack for one compressor BD- / P- / T- / X- / D- / N- / F- / S-Series
I
Bolt joint 118-1918
M6 metric 16 mm Industrial pack in any quantity BD- / P- / T- / X- / D- / N- / F- / S-Series
I
Bolt joint 107B9150
M8 metric 19 mm Single pack for one compressor G-Series
II
Bolt joint 118-1946
1/4 inch 16 mm Single pack for one compressor BD- / P- / T- / X- / D- / N- / F- / S-Series
III
Bolt joint 118-1949
1/4 inch 19 mm Single pack for one compressor all with 19 mm base holes (except G-Series)
IV
Snap-on 118-1947
Ø 7.3 mm 16 mm Single pack for one compressor
BD- / P- / T- / X- / D- / N- / F- / S-Series
V
KAPPA / DELTA
Snap-on 118-1919
Ø 7.3 mm 16 mm Industrial pack in any quantity
BD- / P- / T- / X- / D- / N- / F- / S-Series
V
KAPPA / DELTA
Parts list (4 pcs. per compressor needed) Symbol drawings
I
Sleeve Ø 8 mm x 6.4 mm x 0.8 mm 112-2052
Washer Ø 20 mm x Ø 6.7 mm x 1 mm 112-2053
Bolt M6 x 25 mm 681X1130
Nut M6 118-3659
Rubber grommet 16 mm 118-3661
II
Sleeve Ø 11 mm x 8.6 mm x 1.2 mm 107B9152
Washer Ø 20 mm x Ø 8.8 mm x 1.2 mm 107B9155
Bolt M8 x 40 mm 107B9153
Nut M8 107B9154
Rubber grommet 19 mm 107B9151
III
Sleeve Ø 8.3 mm x 6.7 mm x 0,8 mm 112-2088
Washer Ø 20 mm x Ø 6.7 mm x 1 mm 112-2053
Bolt 1/4 x 1 inch, 20 UNC 119-3002
Nut 1/4 inch, 20 UNC 119-3031
Rubber grommet 16 mm 118-3661
IV
Sleeve Ø 9.5 mm x 7.9 mm x 0,8 mm 112-2085
Washer Ø 20 mm x Ø 6.7 mm x 1 mm 112-2053
Bolt 1/4 x 1 1/4 inch, 20 UNC 119-3002
Nut 1/4 inch, 20 UNC 119-3031
Rubber grommet 19 mm 118-3666
V
Steel pin 118-3586
Washer Ø 21 x Ø 8.1 mm x 0.9 mm 118-3588
Clip 118-3585
Rubber Grommet 16 mm 118-3661
