XV COMPRESSORS
2/2 DES.I.301.D1.02 / 520N0381 April 2018
Secop accepts no responsibility for possible errors in catalogs, brochures, and other printed material. Secop reserves the right to alter its products without notice. This also applies to products already
on order provided that such alterations can be made without subsequential changes being necessary to specications already agreed. All trademarks in this material are the property of the respective
companies. Secop and the Secop logotype are trademarks of Secop GmbH. All rights reserved. www.secop.com
Instructions
XV Compressors
100-127V, 50/60Hz
with 105N5xxx
Series Controllers
Max. pressure
Max. pressure is 20 bar / 290 PSI.
Abrupt pressure drop >3 bar/sec / >43.5 PSI/sec. is not permitted.
Evacuation Two-sided evacuation (suction and discharge side) is essential.
Supply voltage
115 V (±15 %), 50/60 Hz, only with electronic controller.
Refer to XV controller Instructions for wiring diagrams.
Oil charge
The compressor is already charged with 115 ml / 3.89 oz oil
(5 cSt mineral). No oil should be removed or relled.

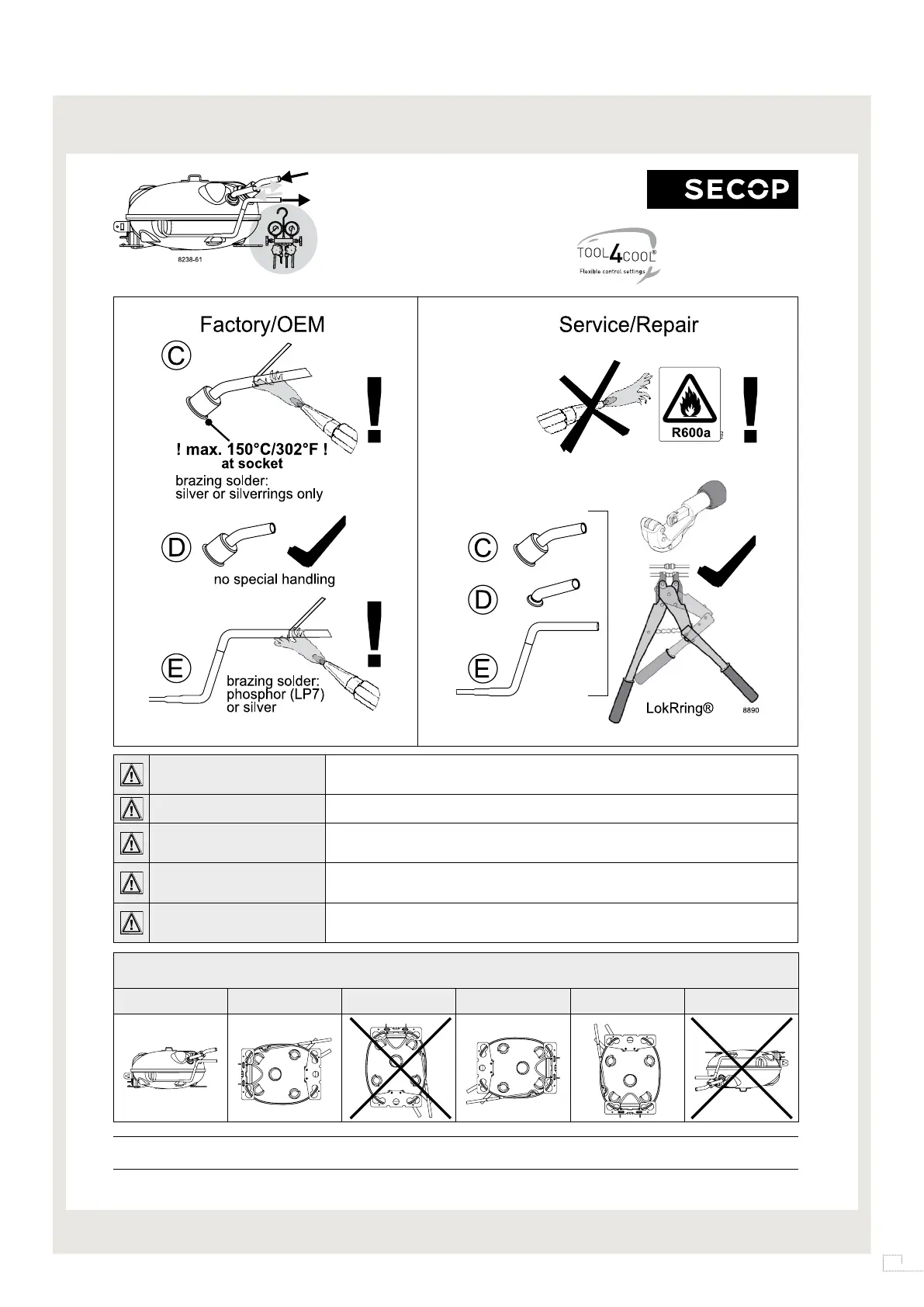

Mounting instructions
Compressor service
https://www.secop.com/products/technical-literature-guidelines/
https://www.secop.com/solutions/compressor-qa-tools/compressor-service/
Shipment positions
of refrigeration appliances
Horizontal Connectors up Electrical lead-in up Connectors down
Electrical lead-in
down
Base plate up
