BGX701-014-R03, User Manual for PT3 Transducers
Note: Please refer the ConfigView user manual for detailed settings that can be configured in the PT3
transducers.
6.2 Procedure to configure PT3 in Offline mode
In this mode, a configuration file is generated in ConfigView and saved in the computer or laptop. This
configuration can be transferred to the transducer device by establishing a physical connection at any later time.
Please ensure that the configuration file includes the correct product code details of the transducer to be
configured. In case of incorrect product code, the device will reject the configuration file.
To perform the configuration in offline mode, do the following:
1. Launch the ConfigView software.
2. Create a new configuration file or open an existing configuration file.
3. Make the required modifications.
4. Save the file.

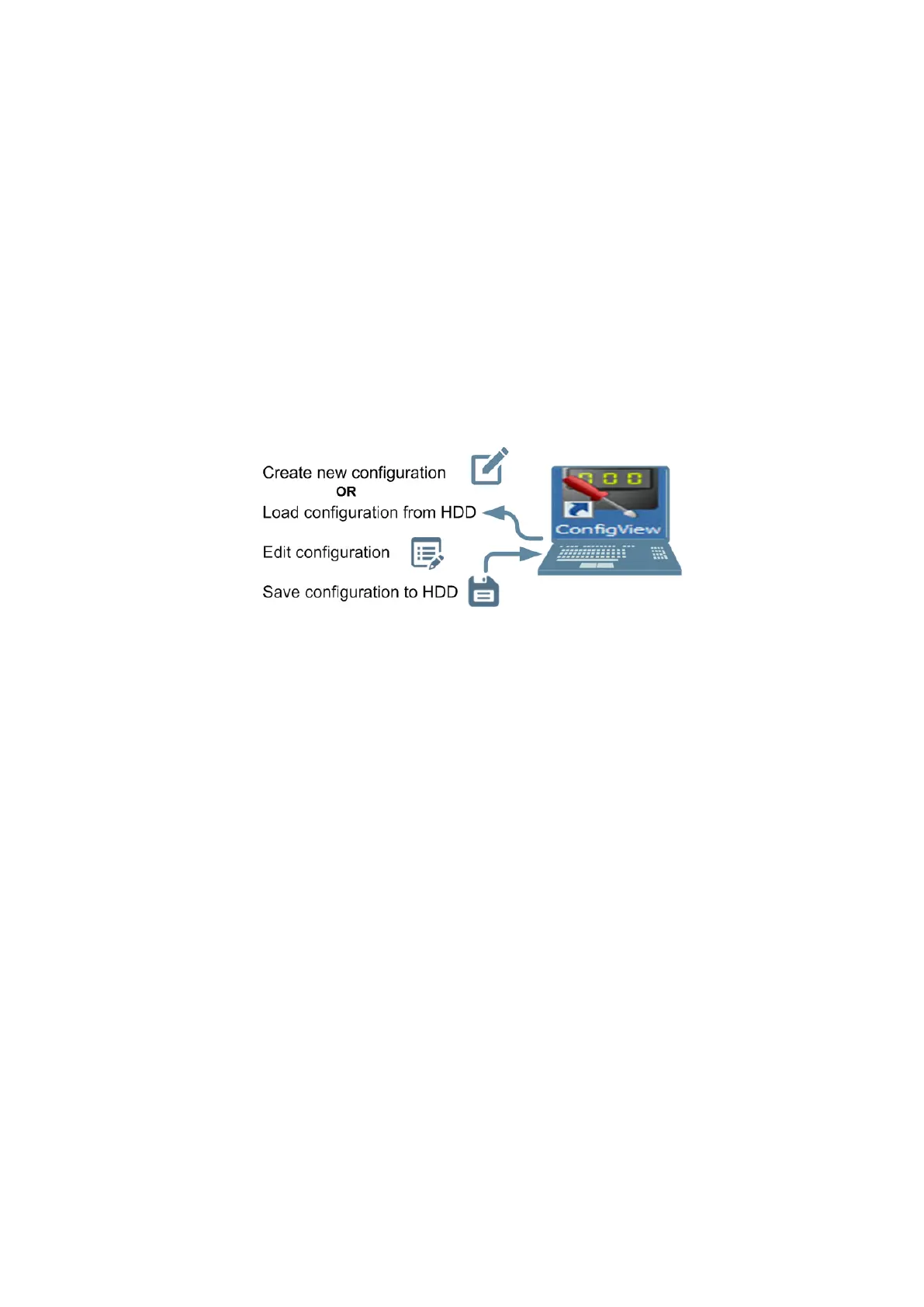

Figure 5: Configuring PT3 in offline mode
5. The rest of the procedure is the same as that described for online mode under section 6.1. The only
difference is that you need to select the saved configuration file and apply it to the transducer device.
Note:
Multiple transducers can be configured using a single configuration file generated in offline mode.
6.3 Changing the customer serial number in the transducer
If required, the serial number of the transducer device can be changed when the transducer is connected to
ConfigView via a USB cable.
To change the customer serial number on the transducer using ConfigView, do the following:
• In the Settings menu, click Change Customer Serial No.
• Set the customer serial number to any combination of eight alphanumeric characters.
• Type the required customer serial number in the Change Customer Sr. No. box, and then click Save.
6.4 Printing/exporting label for PT3 transducer
A label stating the configuration details can be printed out and pasted on the PT3 transducers. This can be done
directly from ConfigView, if a transducer is connected via USB cable.
