Secure PT3 Series User Manual

Page 15 of 40
BGX701-014-R03, User Manual for PT3 Transducers
Public
Response time At 5 cycles measurement
≥100 ms to ≤ 220 ms
Ripple < 0.4% peak to peak, at 20 mA
Mechanical specifications
Product dimensions (W x H x D)
100 mm x 75 mm x 105 mm
Weight 0.7 kg (approx.)
Material Flame-retardant polycarbonate (PC-FR), UL94 V-0
Mounting Top hat DIN Rail mountable as per EN 50022
Connector type Screw terminals
Conductor size for terminals ≤4 mm
2
(solid max.)
Connection cables
(recommended size)
2.5 mm
2
Recommended torque 0.5 N m
Impact rating (IK code) IK06
Impact energy level 1 joule

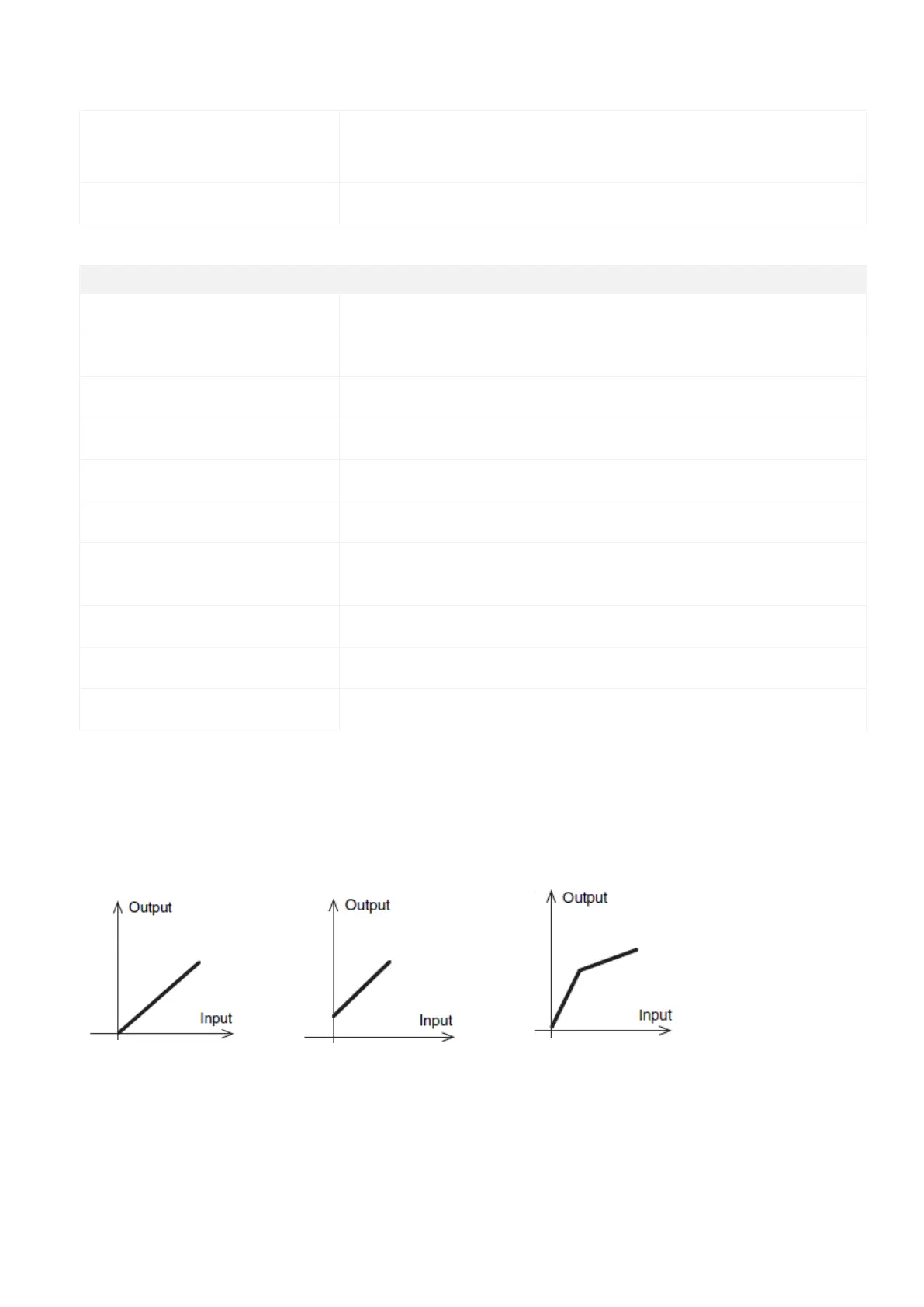

5.1 PT3 output signals
1. Curve A (linear)
2. Curve B (linear with live
zero)
3. Curve F (compressed upper
region)
Example 0-10 mA
corresponding to 0-100 A
Example 4-20 mA corresponding
to 0-100 A
Example 0-16-20 mA corresponding
to 0-200-800 A
4. Curve F (compressed
lower region with live
5. Curve C (Bipolar)
6. Curve D (Bipolar with live zero)
