BGX701-014-R03, User Manual for PT3 Transducers
7 Installing PT3 transducers
7.1 PT3 transducer dimensional details

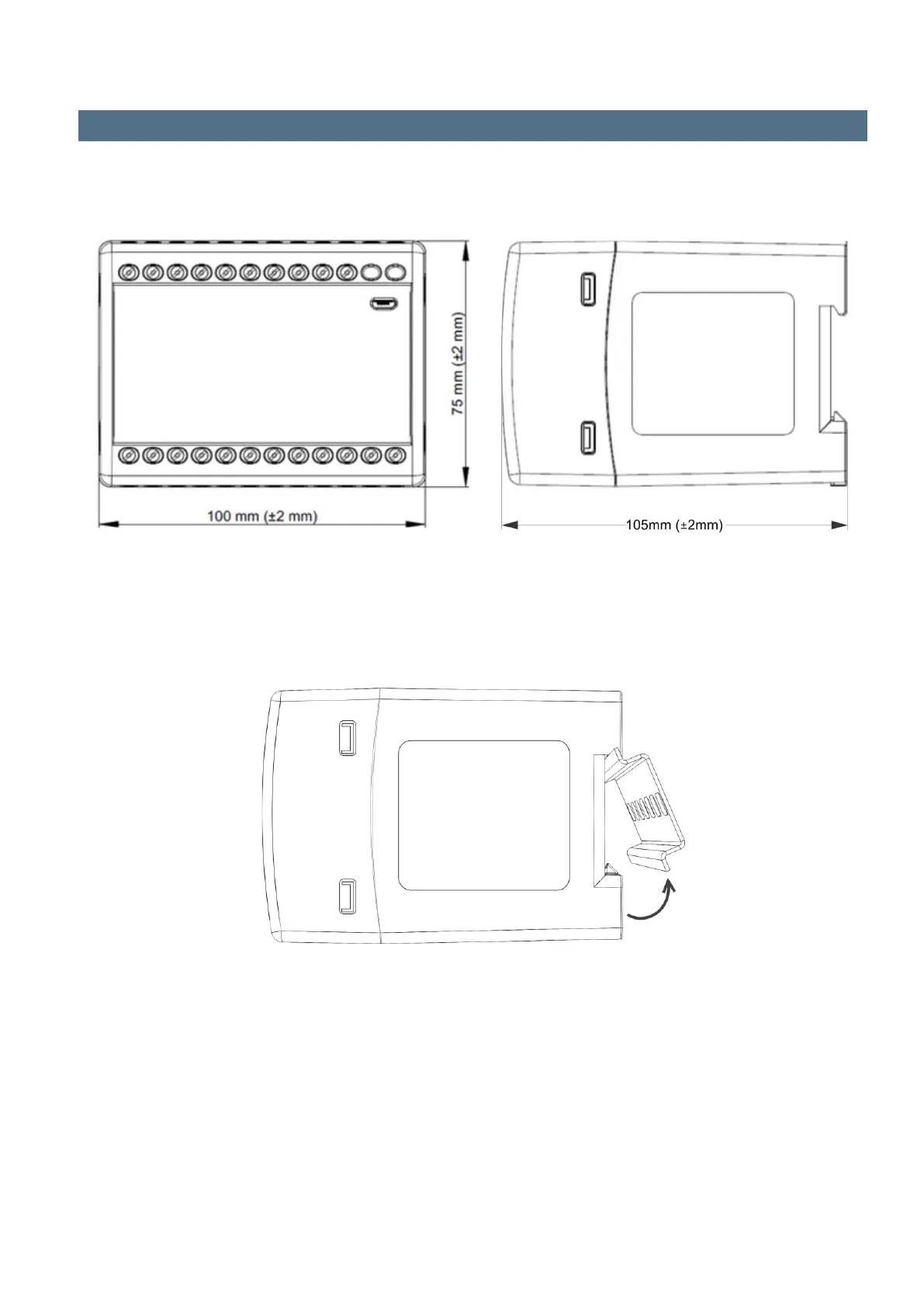

The overall dimensions of PT3 transducers are shown below.
Figure 6: PT3 transducer dimensions
7.2 Mounting the PT3 transducer on a DIN rail
To mount the PT3 transducer on a DIN rail, hook one edge of the rail with the top edge of the cut out located at
the rear of the device.
Figure 7: Aligning PT3 transducer on DIN rail
Press the device against the bottom edge of the DIN rail until the locking mechanism engages firmly in place
with the release clip at the rear.
