BGX701-014-R03, User Manual for PT3 Transducers
Check that the device is securely fixed.

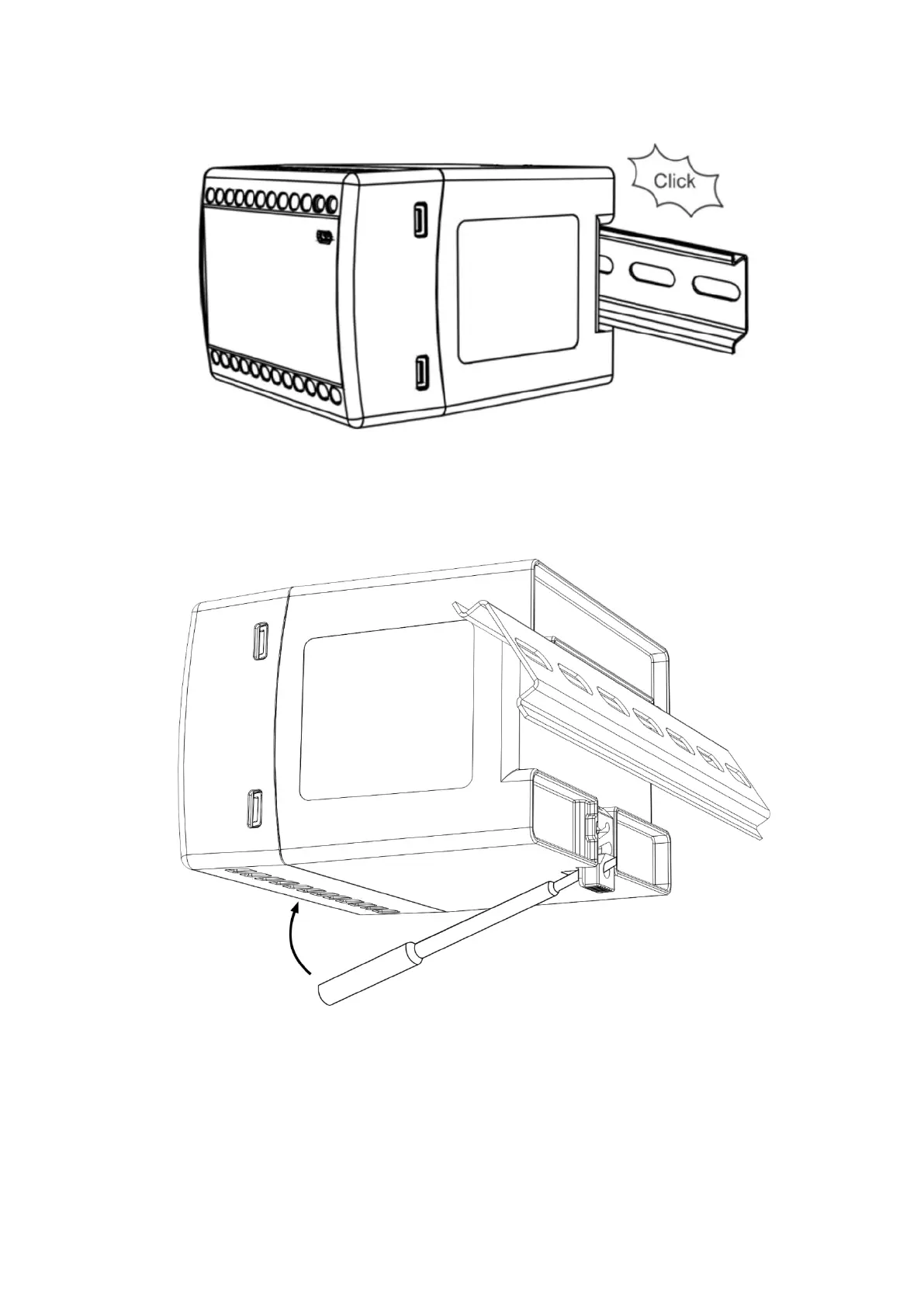

Figure 8: PT3 transducer mounted on DIN rail
7.3 Demounting the PT3 transducer
To remove or reposition the transducer device, lever up the release clip with a screwdriver, and then lower the
device off and away from the rail.
Figure 9: Demounting the PT3 transducer
